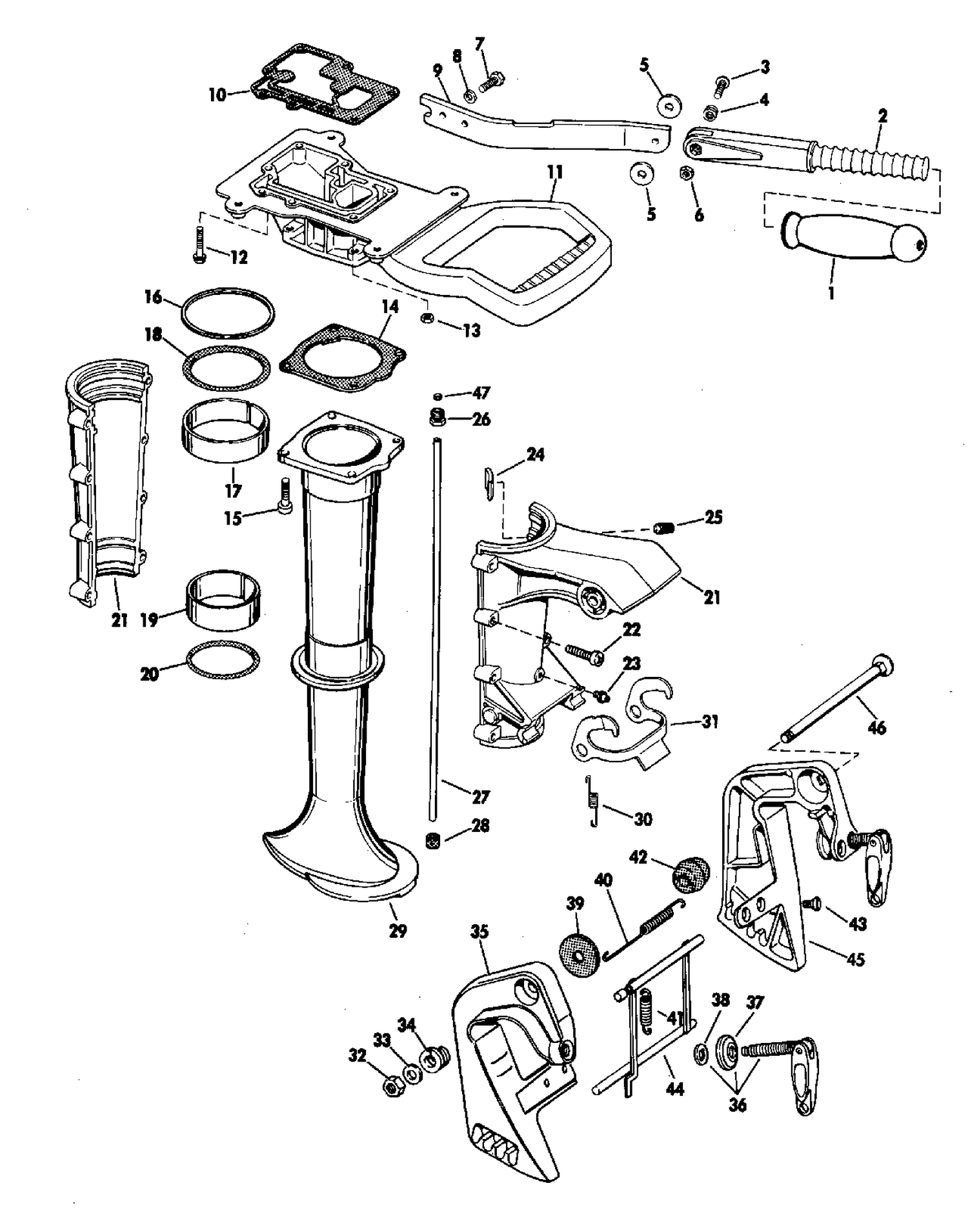

| Ref | Part Number | Description |
|---|
| 1 |
0204186 |
GRIP,Handle |
| 2 |
0203122 |
HANDLE,Steering |
| 3 |
0132124 |
SCREW,Steering handle |
| 4 |
0307595 |
SPRING ,Armature plate |
| 5 |
0300026 |
WASHER,Steering handle |
| 7 |
0300646 |
VIS, ancrage |
| 9 |
0311267 |
SUPPORT,Steering handle |
| 10 |
0313065 |
GASKET, Exhaust housing |
| 11 |
0382828 |
ADAPTER |
| 13 |
0306397 |
NUT |
| 14 |
0310257 |
GASKET 5 INCH LONGER PARTS |
| 15 |
0308707 |
SCREW |
| 16 |
0312186 |
WASHER,Thrust |
| 17 |
0310270 |
LINING,Housing,upper |
| 19 |
0310271 |
LINING,Housing,lower |
| 21 |
0380103 |
SWIVEL BRACKET ASSEMBLY |
| 24 |
0310265 |
BLOCK,Friction |
| 25 |
0310266 |
SCREW,Friction block |
| 26 |
0132691 |
COMPRESSION NUT |
| 27 |
0312926 |
WATER TUBE |
| 28 |
0317372 |
GROMMET, Wate tube, lower This part replaces 0203131. |
| 29 |
0312181 |
HOUSING,Exhaust |
| 30 |
0311442 |
SPRING |
| 31 |
0311281 |
HOOK,Reverse lock |
| 33 |
0306433 |
WASHER |
| 34 |
0302051 |
SPRING Tilting bolt |
| 35 |
0391955 |
STERN BRACKET ASSY This part replaces 0380872. |
| 36 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0375742. |
| 39 |
0304278 |
WASHER |
| 40 |
0311279 |
SPRING, Long |
| 41 |
0202021 |
SPRING, Link to shallow water drive |
| 42 |
0301983 |
CONICAK WASHER,Stern brkt |
| 43 |
0901889 |
SCREW This part replaces 0303396. |
| 44 |
0381816 |
LEVER,Titl adj. |
| 45 |
0380871 |
STERN BRACKET ASSEMBLY PORT(INCL.ITEM 22) |
| 46 |
0326134 |
BOLT, Tilting This part replaces 0304277. |
