Home / BRP / 2008 / MX Z / MX Z 550X, 2008 000BN8A00 000BN8B00 000BN8C00 / 10- Steering Wiring Harness X

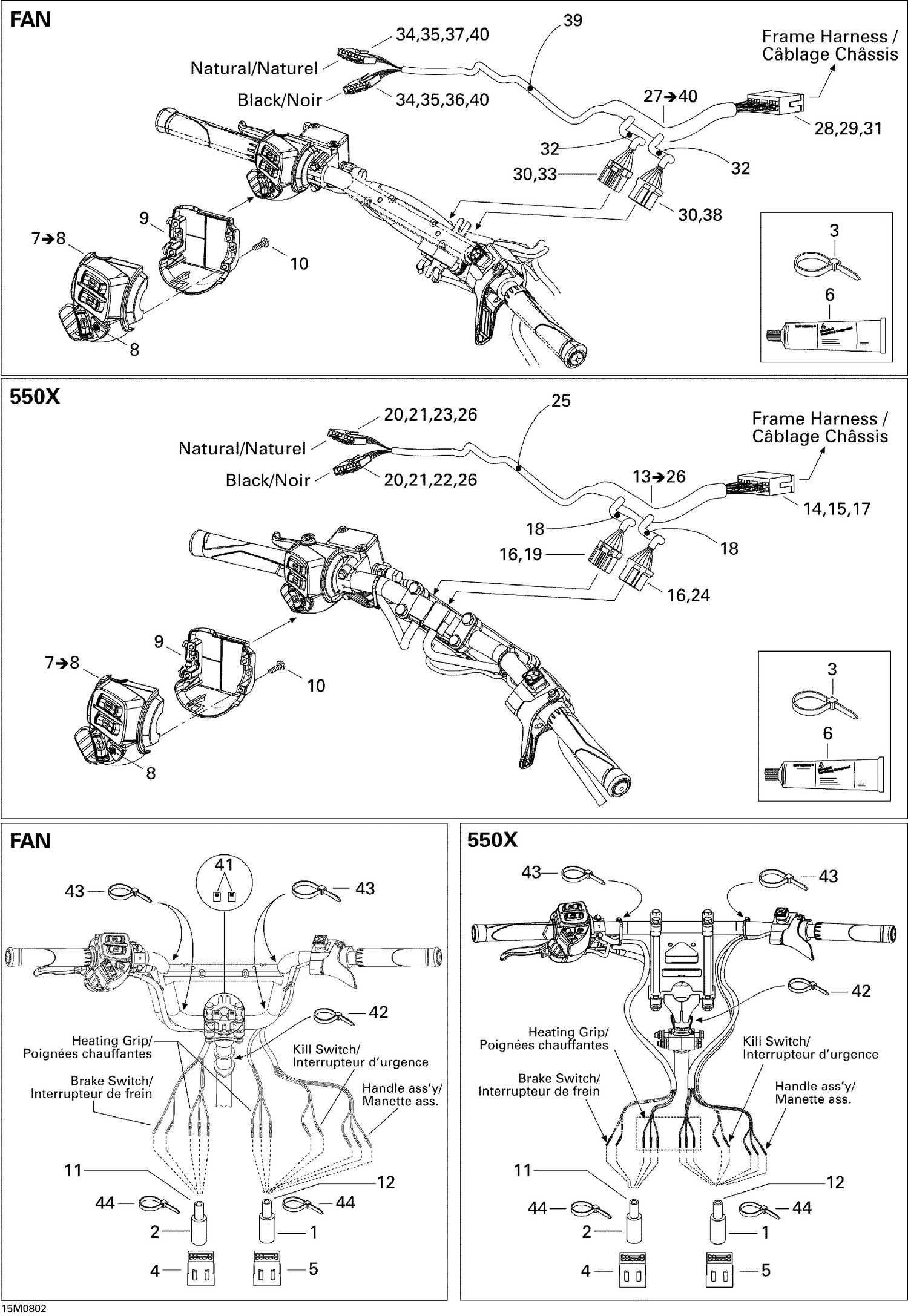

10- Steering Wiring Harness X

10- Steering Wiring Harness X

Parts (28)

RefPart NumberDescription
1 219704427 LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
2 219704427 LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
3 293750008 Tie Wrap 368 mm
4 515175662 Male Terminal Housing, 6 Circuits
5 515175817 Male Terminal Housing, 8 Circuits
6 219704453 Was 293550004 Dielectric Grease, 150 g
8 515176088 Start/RER Button
9 515175926 Switch Housing Plate
10 250000263 Torx Screw #8-18
11 219704402 Tubing 25 MM 1000MM Long
12 219704402 Tubing 25 MM 1000MM Long
27 XXX Not Available As Spare Parts
28 XXX Not Available As Spare Parts
29 XXX Not Available As Spare Parts
30 XXX Not Available As Spare Parts
31 XXX Not Available As Spare Parts
32 XXX Not Available As Spare Parts
33 XXX Not Available As Spare Parts
34 XXX Not Available As Spare Parts
35 XXX Not Available As Spare Parts
36 XXX Not Available As Spare Parts
37 XXX Not Available As Spare Parts
38 XXX Not Available As Spare Parts
39 XXX Not Available As Spare Parts
40 XXX Not Available As Spare Parts
41 XXX Not Available As Spare Parts
42 293750008 Tie Wrap 368 mm
43 414115200 Tie-Rap 180 mm
