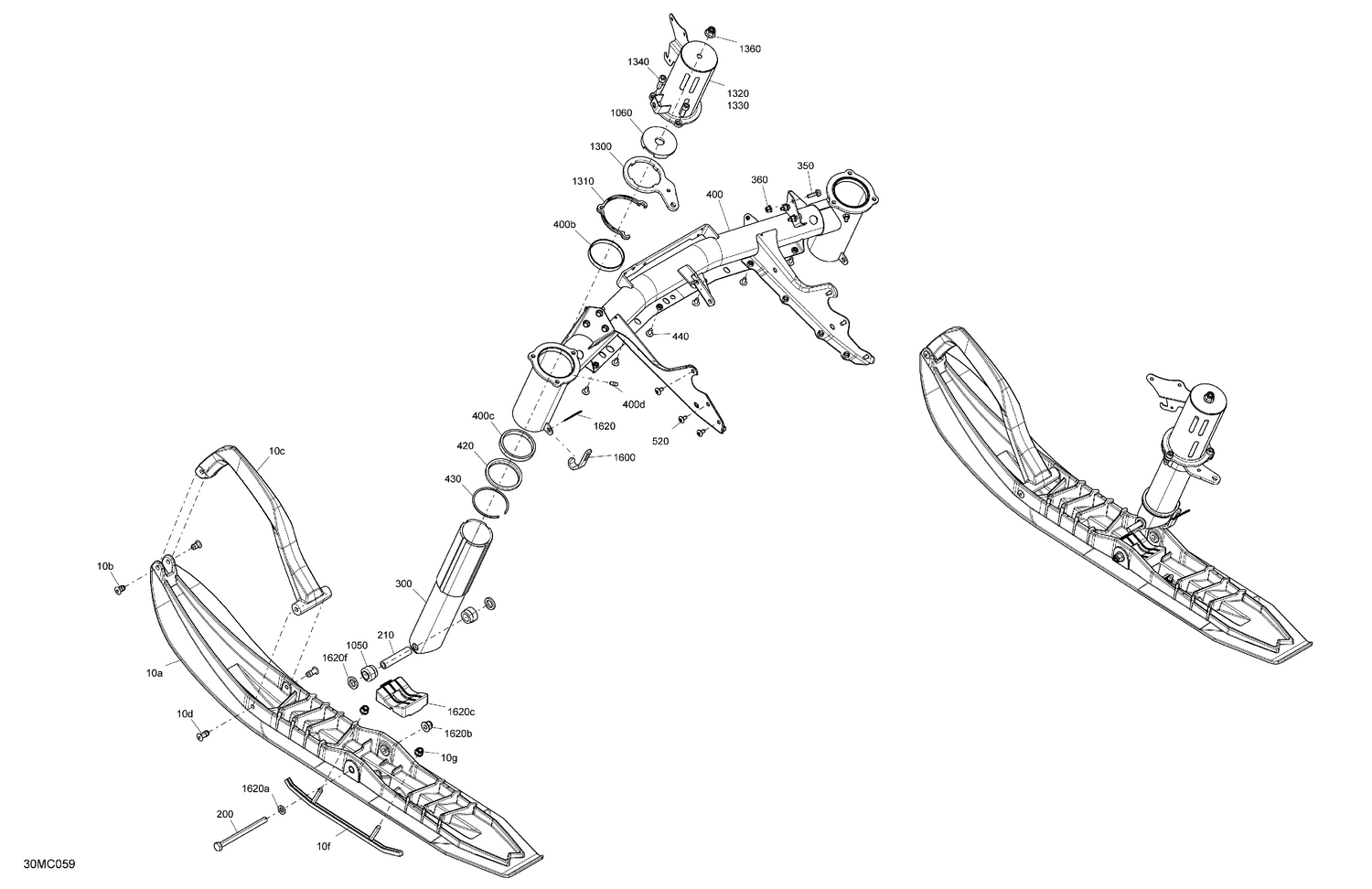

05- Suspension - Front
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 505073227 | Black, Ski |
| 10b | 505071812 | Retainer 17mm long |
| 10c | 505075287 | Neo Yellow, Ski Handle |
| 10d | 505072133 | Retainer 23mm Long |
| 10f | 860201044 | Carbide Runner Kit (Square Runner) |
| 10g | 233281414 | Hex. Flange Elastic Nut M8 |
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 505073209 | Ski Axle |
| 300 | 505073200 | Ski Leg |
| 350 | 207662046 | Hex. Flange Screw M6 X 20 |
| 360 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 400b | 414803100 | Upper Cushion |
| 400c | 414803200 | Lower Cushion |
| 400d | 408200700 | Grease Fitting |
| 420 | 505072696 | Seal Oil |
| 430 | 505072698 | Circlip |
| 440 | 250000767 | Torx Truss Screw M6 X 12 |
| 520 | 250000767 | Torx Truss Screw M6 X 12 |
| 1050 | 572034500 | Cushion |
| 1060 | 570025800 | Stopper |
| 1300 | 505074801 | Steering Arm |
| 1310 | 505073983 | Spacer |
| 1320 | 505074802 | LH Suspension Cover |
| 1330 | 505074808 | RH Suspension Cover |
| 1340 | 205082544 | Socket Head Screw M8 X 25 |
| 1360 | 233201414 | Hex. Flange Elastic Nut M10 |
| 1600 | 505074882 | Clamp |
| 1620 | 505073113 | Spring Cotter 2 Din 11024 Zn |
| 1620a | 503192496 | Washer |
| 1620b | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 1620c | 505072594 | Ski Stopper |
