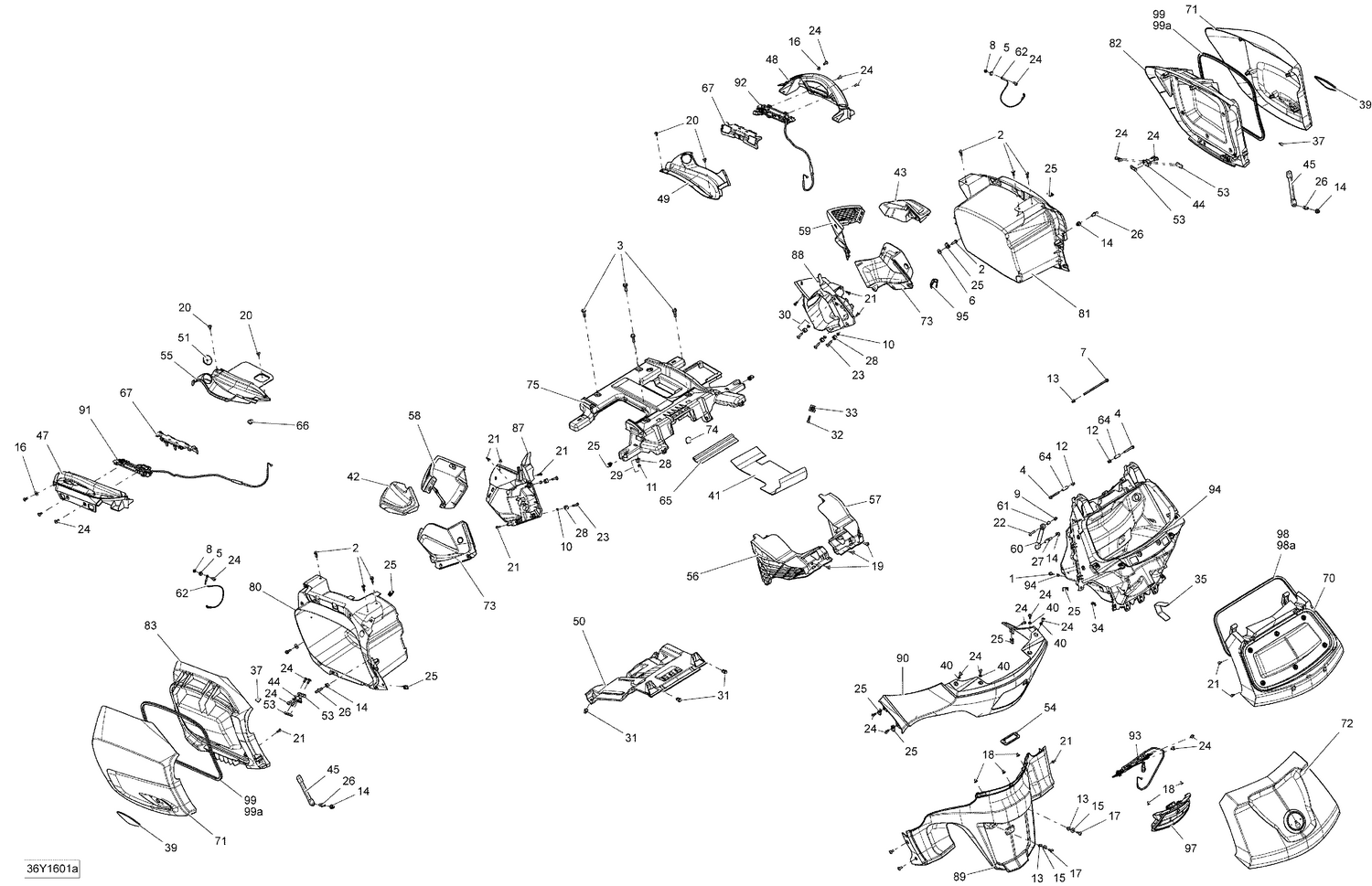

| Ref | Part Number | Description |
|---|
| 1 |
207561234 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 2 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 3 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 4 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 5 |
211200055 |
Flat Washer, Stainless/Neoprene |
| 6 |
224061201 |
Flat Washer |
| 7 |
230663084 |
Hex. Flange Screw M6 X 130 |
| 8 |
232061414 |
Hex. Nut M6 |
| 9 |
232361493 |
Domed Nut M6 |
| 10 |
232561200 |
Brass Elastic Stop Nut M6 |
| 11 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 12 |
233261434 |
Flange Elastic Nut M6 |
| 13 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 14 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 15 |
234062600 |
Flat Washer M6, Stainless |
| 16 |
234062670 |
Stainless Steel Flat Washer |
| 17 |
250000303 |
Torx Truss Screw M6 X 20 |
| 18 |
250000349 |
Torx Truss Screw M6 X 10 |
| 19 |
250000350 |
Torx Truss Screw M6 X 20 |
| 20 |
250000454 |
Torx Screw M6 X 12 |
| 21 |
250000720 |
Torx Screw K50 X 16 |
| 22 |
250000843 |
Torx Truss Screw M6 X 30 |
| 23 |
250000880 |
Torx-Truss M/S M6 X 25 |
| 24 |
250000881 |
Torx Truss M8 X 16 |
| 25 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 26 |
250300016 |
Ball Head Stud |
| 27 |
250300039 |
Ball Head Stud |
| 28 |
269500252 |
M6 Nut Housing Ass'y |
| 29 |
269500725 |
M6 Nut Housing Ass'y |
| 30 |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 31 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 32 |
293750002 |
Tie Wrap 142 mm |
| 33 |
293750040 |
Tie-rap Mount (square - self-adhsive) |
| 34 |
414115200 |
Tie-Rap 180 mm |
| 37 |
518327441 |
Lateral Console Foam |
| 40 |
705003207 |
Plastic Washer |
| 41 |
705004173 |
Heat Shield |
| 42 |
708000614 |
Deep Black, LH Arm Rest |
| 43 |
708000615 |
Deep Black, RH Arm Rest |
| 44 |
708300006 |
Hinge |
| 45 |
708300011 |
Gaz Shock |
| 47 |
708300022 |
LH Passenger Handle |
| 48 |
708300024 |
RH Passenger Handle |
| 49 |
708300027 |
RH Handle Pannel |
| 50 |
708300028 |
Under Tail Rear Wheel Cover |
| 51 |
708300049 |
Crontrol Cap |
| 53 |
708300129 |
Back Plate Support |
| 54 |
708300177 |
License Plate Light Support |
| 55 |
708300209 |
LH Handle Pannel |
| 56 |
708300327 |
LH Inner Fender |
| 57 |
708300328 |
RH Inner Fender |
| 58 |
708300381 |
Deep Black LH Grille |
| 59 |
708300382 |
Deep Black RH Grille |
| 60 |
708300383 |
Gaz Shock |
| 61 |
708300384 |
Spacer |
| 62 |
708300385 |
Retainer Cable |
| 64 |
708300394 |
Spacer |
| 65 |
708300397 |
Seal |
| 66 |
708300405 |
Cap |
| 67 |
708300514 |
Latch Protector |
| 70 |
708300678 |
Inner Cover |
| 71 |
708301396 |
COVER TRUNK LH B-266 - Call your local BRP dealership |
| 71 |
708301397 |
COVER TRUNK RH B-266 - Call your local BRP dealership |
| 72 |
708301393 |
COVER TRUNK R B-266 - Call your local BRP dealership |
| 73 |
708301408 |
TRIM REST ARM LH B-266 - Call your local BRP dealership |
| 73 |
708301409 |
TRIM REST ARM RH B-266 - Call your local BRP dealership |
| 74 |
708301412 |
CAP ANTENNA LH B-266 - Call your local BRP dealership |
| 75 |
708300781 |
Rear Support Ass'y |
| 80 |
708301016 |
Cargo Box Inner LH |
| 81 |
708301017 |
Cargo Box Inner RH |
| 82 |
708301022 |
Cover Interior RH |
| 83 |
708301023 |
Cover Interior LH |
| 87 |
708301555 |
Sound Box LH |
| 88 |
708301556 |
Sound Box RH |
| 89 |
708302277 |
Fender Rear This part replaces 708301557. |
| 90 |
708301558 |
Bare, Rear Panel This part replaces 708301571. |
| 91 |
708301640 |
Latch Ass'y LH |
| 92 |
708301641 |
Latch Ass'y RH |
| 93 |
708301642 |
Center Latch |
| 94 |
708301798 |
Storage Bin Ass'y Rear |
| 95 |
708302047 |
Radio Antenna Base RH, 11.7mm Dia. |
| 97 |
708302620 |
Main Control (WO lock cylinder) This part replaces 708301039. |
| 98 |
293830188 |
Seal, 1PC = 3M This part replaces 293830151. |
| 98a |
293830188 |
Seal, 1PC = 3M This part replaces 293830151. |
| 99 |
293830188 |
Seal, 1PC = 3M This part replaces 293830151. |
