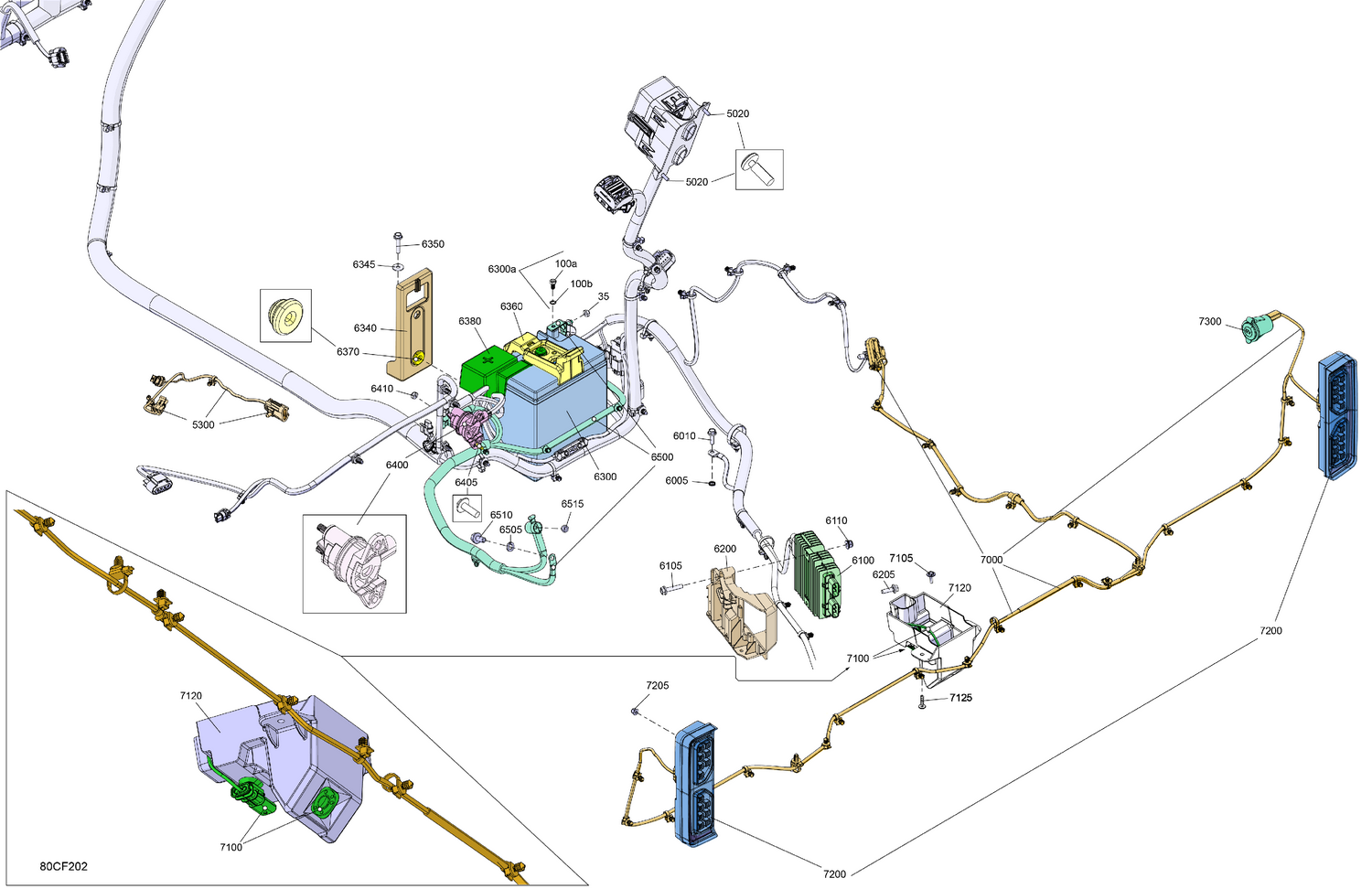

08- Electric - Rear Section
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 35 | 232561200 | Brass Elastic Stop Nut M6 |
| 100a | 710009084 | Screw |
| 100b | 710009082 | Washer |
| 5020 | 250000720 | Torx Screw K50 X 16 |
| 5300 | 710010263 | Disconnect Unit Harness |
| 6005 | 234461608 | External Serrated Lock Washer 6 mm |
| 6010 | 207662054 | Hex. Flange Screw M6 X 20 |
| 6100 | 710007558 | Voltage Regulator |
| 6105 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 6110 | 233261494 | Hex. Flange Elastic Nut M6 |
| 6200 | 710009886 | Regulator Support |
| 6205 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 6300a | 515176081 | Battery Bolt Kit |
| 6340 | 710004788 | Fixation Plate |
| 6345 | 234062410 | Flat Washer 6 mm |
| 6350 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 6360 | 710009128 | Battery Support |
| 6370 | 705014429 | Rubber Stopper |
| 6380 | 710010386 | Battery Cable Cap |
| 6400 | 278003012 | Starter Relay |
| 6405 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 6410 | 232561200 | Brass Elastic Stop Nut M6 |
| 6500 | 710009816 | Power Starter Wiring Harness |
| 6505 | 234181401 | Lock Washer 8 mm |
| 6510 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 6515 | 232561414 | Elastic Stop Nut M6 |
| 7000 | 710009731 | Taillight Wiring Harness |
| 7100 | 710007892 | Camera |
| 7105 | 250000725 | Screw M4 X 16 |
| 7120 | 708304607 | Rear Camera Support |
| 7125 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 7200 | 710010695 | Backup Tail Light |
| 7205 | 233251494 | Elastic Flange Nut M5 |
