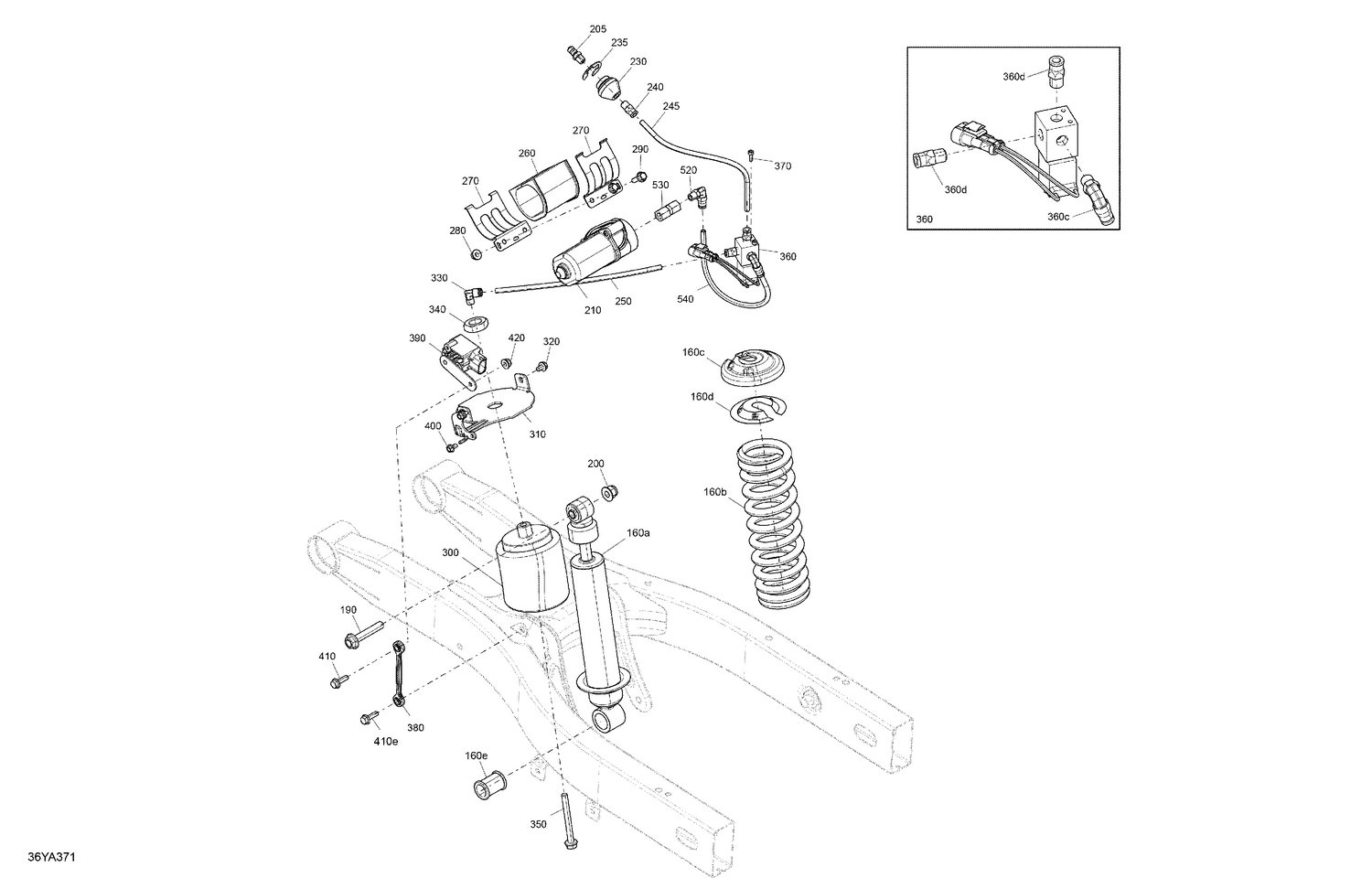

05- Suspension - Rear Shocks
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 160a | 706001552 | Shock Absorber |
| 160b | 706001542 | Shock Absorber Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160e | 503191609 | Urethane Cushion |
| 190 | 207605554 | Hex. Flange Screw M10 X 55 |
| 200 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 205 | 706002797 | Air Valve |
| 210 | 706001349 | Compressor |
| 230 | 706004028 | Pneumatic Connector |
| 235 | 293370123 | Circlip |
| 240 | 706000869 | Connector |
| 245 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 250 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 260 | 706000631 | Compressor Isolator |
| 270 | 503193103 | Compressor Bracket |
| 280 | 233061414 | Hex. Flange Nut M6 |
| 290 | 207662044 | Hex. Flange Screw M6 X 20 |
| 300 | 219800175 | Air Damper Kit |
| 310 | 706001082 | Support Plate |
| 320 | 210261050 | Hex. Forming Screw M6 X 10 |
| 330 | 706001018 | Elbow 90° |
| 340 | 250100119 | Jam Nut M20 |
| 350 | 207687544 | Hex. Flange Screw M8 X 75 |
| 360c | 706000928 | Elbow 90° |
| 360d | 706000869 | Connector |
| 370 | 250000915 | Torx Head Screw M4 X 12 |
| 380 | 706202505 | Tie Rod |
| 390 | 710001651 | Position Sensor |
| 400 | 207551044 | Hex. Flange Screw M5 X 10 |
| 410 | 207662044 | Hex. Flange Screw M6 X 20 |
| 420 | 233061414 | Hex. Flange Nut M6 |
| 520 | 706000928 | Elbow 90° |
| 530 | 706000831 | Ckeck Valve |
