Home / BRP / EVINRUDE / 2009 / 200 - (90° V6, 3.3 L) / E200DHLSEB - (90° V6 3,3 L) / ELECTRICAL HARNESS

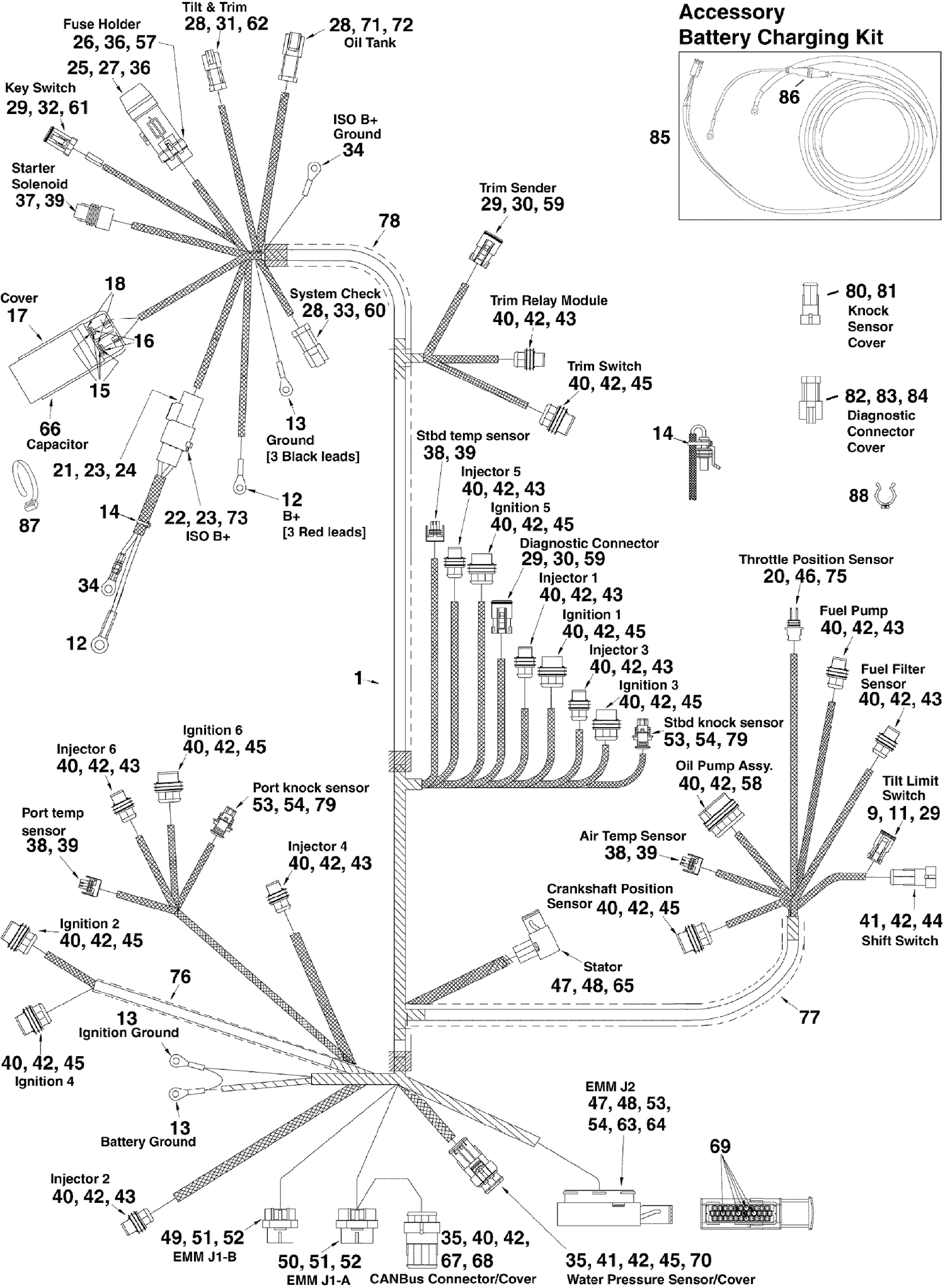

ELECTRICAL HARNESS

ELECTRICAL HARNESS

Parts (4)

RefPart NumberDescription
1 5007966 ENGINE HARNESS Assy
34 0600138 Ring Terminal
77 0503956 Split Convoluted Tubing Max Dia. (in.) 1/2 This part replaces 3010591.
88 3011450 ATTACHE, connecteur
