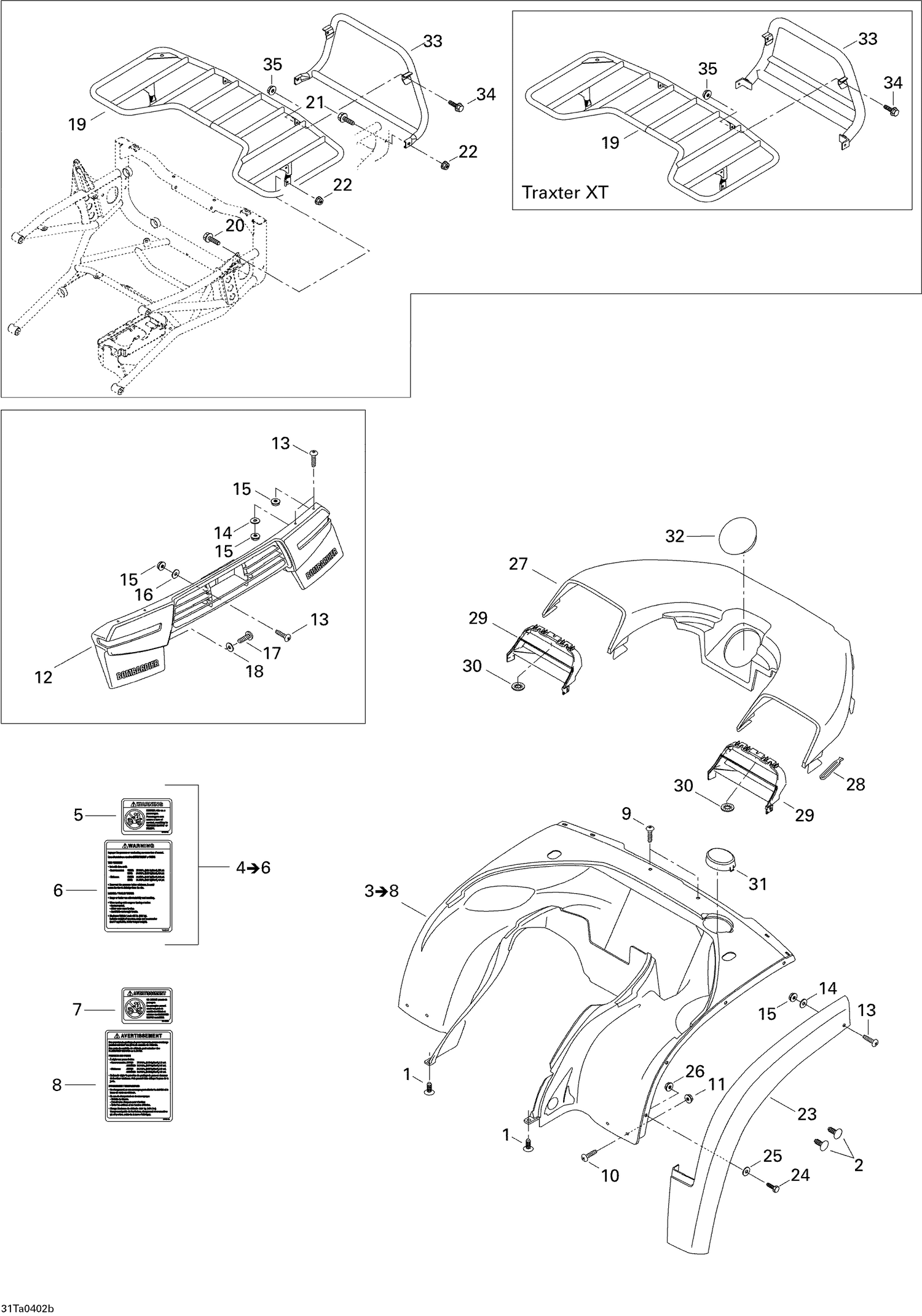

| Ref | Part Number | Description |
|---|
| 1 |
293730011 |
Black, Dart |
| 2 |
293730011 |
Black, Dart |
| 9 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 10 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 12 |
705000709 |
Rear Fascia, Slate Gray |
| 13 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 14 |
224060201 |
Flat Washer |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 16 |
224060201 |
Flat Washer |
| 17 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 18 |
224061121 |
Flat Washer |
| 19 |
705000622 |
Rear Luggage Rack, Black |
| 20 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 21 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 22 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 23 |
705000829 |
RH Rear Mudguard |
| 24 |
207162044 |
Hex. Screw M6 X 20 |
| 25 |
224060201 |
Flat Washer |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 28 |
570023800 |
Windshield Latch |
| 29 |
705000181 |
RH Grill, Black |
| 30 |
250100000 |
PUSH NUT - Call your local BRP dealership |
| 31 |
705000132 |
COVER, BLACK - Call your local BRP dealership |
| 32 |
705000207 |
CAP - Call your local BRP dealership |
| 705000180 |
LH |
Grill, Black 705000180 |
| 705000180 |
Louvre |
GA, Noir 705000180 |
| 705000830 |
Garde-Boue |
Arrière GA 705000830 |
| 705000830 |
LH |
Rear Mudguard 705000830 |
