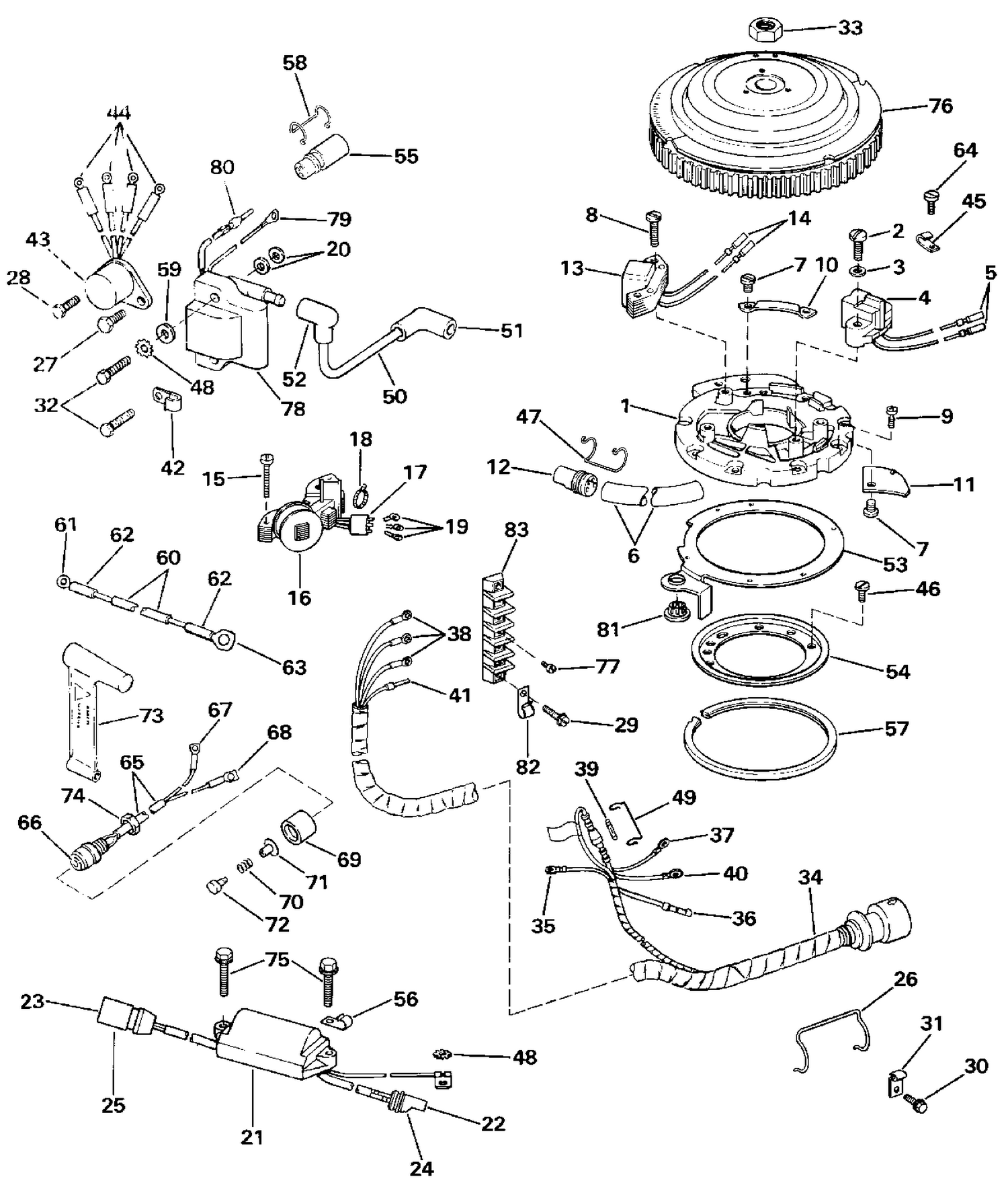

| Ref | Part Number | Description |
|---|
| 1 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 4 |
0583387 |
SENSOR ASSEMBLY This part replaces 0581655. |
| 6 |
0511482 |
SLEEVE |
| 7 |
0303212 |
VIS, collier & capot |
| 9 |
0511460 |
VIS, dispositif de retenue |
| 10 |
0511458 |
COLLIER, fils |
| 11 |
0511459 |
CACHE, fils |
| 13 |
0581670 |
CHARGE COIL |
| 16 |
0582412 |
STATOR ASSEMBLY |
| 17 |
0311601 |
SLEEVE, Leads |
| 21 |
0582453 |
POWER PACK |
| 25 |
0511449 |
COMMECTOR, Coil to power pack |
| 27 |
0328731 |
VIS, câble de verrouillage |
| 28 |
0314576 |
SCREW This part replaces 0328720. |
| 30 |
0313117 |
SCR,Clamp,eng cable |
| 32 |
0328726 |
SCREW (Use existing coil screw) |
| 34 |
0582061 |
MOTOR CABLE ASSY |
| 42 |
0310441 |
CLAMP, CPS lead |
| 43 |
0581778 |
REDRESSEUR |
| 45 |
0317000 |
COLLIER, câble |
| 46 |
0332070 |
SCREW, Retaining plate This part replaces 0326875. |
| 47 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 50 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 53 |
0334193 |
RETAINER, Ign. plate assy. This part replaces 0323204. |
| 54 |
0332063 |
PLATE, Support This part replaces 0323398. |
| 57 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 64 |
0313117 |
SCR,Clamp,eng cable This part replaces 0330199. |
| 67 |
0329816 |
TERINAL |
| 70 |
0313584 |
SPRING |
| 75 |
0328726 |
SCREW (Use existing coil screw) |
| 76 |
0583696 |
FLYWHEEL ASSEMBLY This part replaces 0582436. |
| 77 |
0329182 |
VIS, borne |
| 78 |
0582106 |
COIL ASSY |
| 81 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 0582411 |
0582411 |
PLATE ASSEMBLY COMPLETE |
