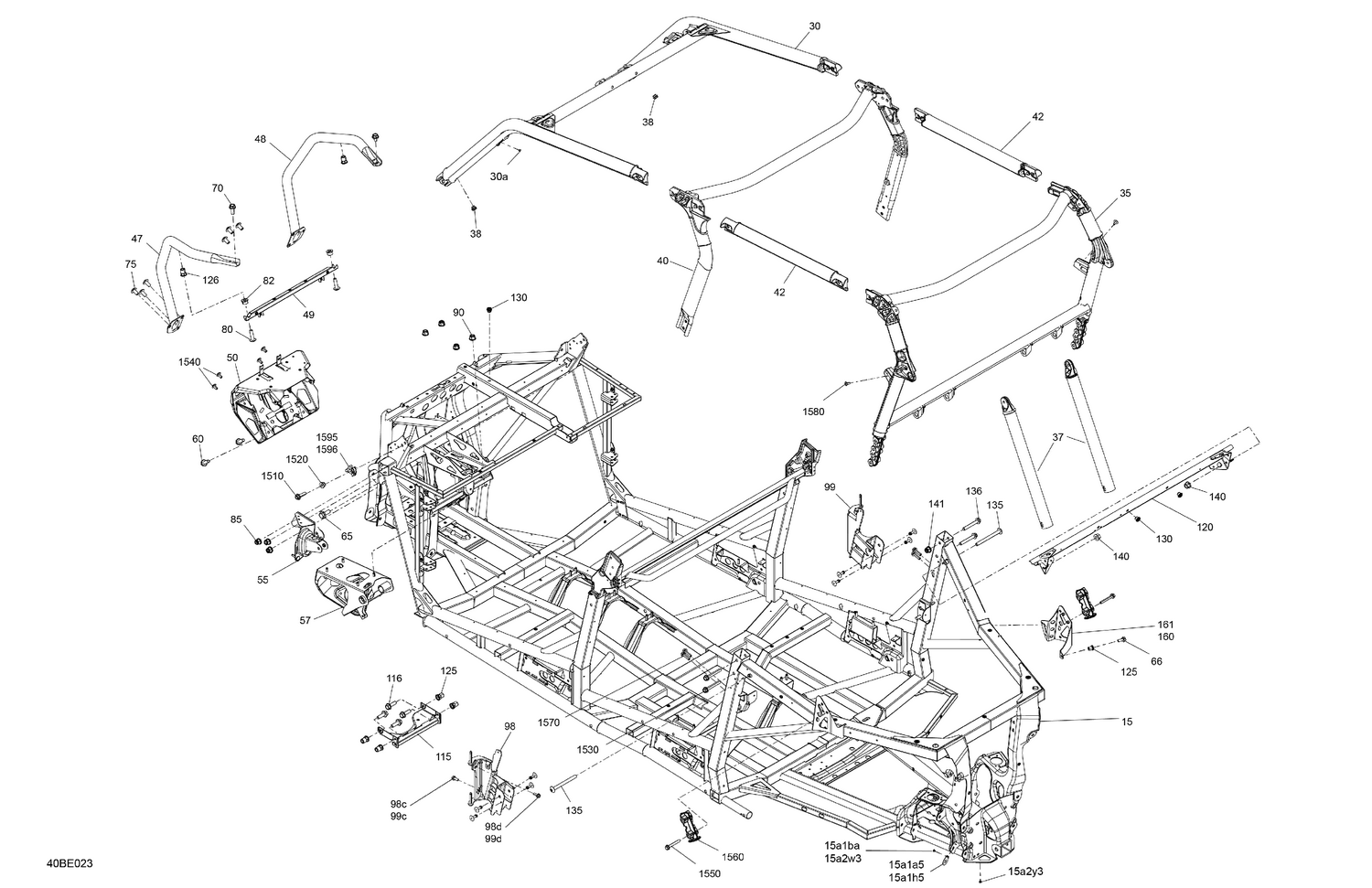

| Ref | Part Number | Description |
|---|
| 15a1a5 |
705209479 |
Shim |
| 15a1ba |
293150293 |
Pop Rivet 3/16 X ,425 |
| 15a1h5 |
705209479 |
Shim |
| 15a2w3 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 15a2y3 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 30a |
293150293 |
Pop Rivet 3/16 X ,425 |
| 35 |
715009370 |
Deep Black, Rear Cage Kit |
| 37 |
705211125 |
Deep Black, Rear Cage Extension |
| 38 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 40 |
703501203 |
Mid Cage Max |
| 42 |
705209848 |
Deep Black, Cage Extension |
| 47 |
705206303 |
LH Front Bumper |
| 48 |
705206308 |
RH Front Bumper |
| 49 |
705206313 |
Cross Member |
| 50 |
705209043 |
Deep Black, Front Bumper |
| 55 |
705206217 |
Brake Support |
| 57 |
705206294 |
DPS Support |
| 60 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 65 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 66 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 70 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 75 |
250000746 |
Torx Truss Screw M8 X 16 |
| 80 |
250000745 |
Hex Torx Truss M8 X30 |
| 82 |
705207229 |
Bushing |
| 85 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 90 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 98c |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 98d |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 99c |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 99d |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 115 |
705211563 |
Bearing Support |
| 116 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 120 |
705209434 |
Central Tube |
| 125 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 126 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 130 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 135 |
250000806 |
Torx Truss M8 X 90 |
| 136 |
250000954 |
Torx Screw M6 X 70 |
| 140 |
233081436 |
Hex. Flange Nut |
| 141 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 160 |
705211569 |
LH Rear Anchorage Support |
| 161 |
705211571 |
RH Rear Anchorage Support |
| 1510 |
250000855 |
Hex. Flange Screw M10 X 35 |
| 1520 |
233201466 |
Flange Elastic Nut M10 |
| 1530 |
207607056 |
Hex. Flange Screw M10 X 70 |
| 1540 |
250000746 |
Torx Truss Screw M8 X 16 |
| 1550 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 1560 |
705210648 |
Sleeve |
| 1570 |
207502546 |
Hex. Flange Screw M10 X 25 |
| 1580 |
250000953 |
Torx Truss M/S M8 X 20 |
| 1595 |
705209913 |
LH Front Anchorage |
