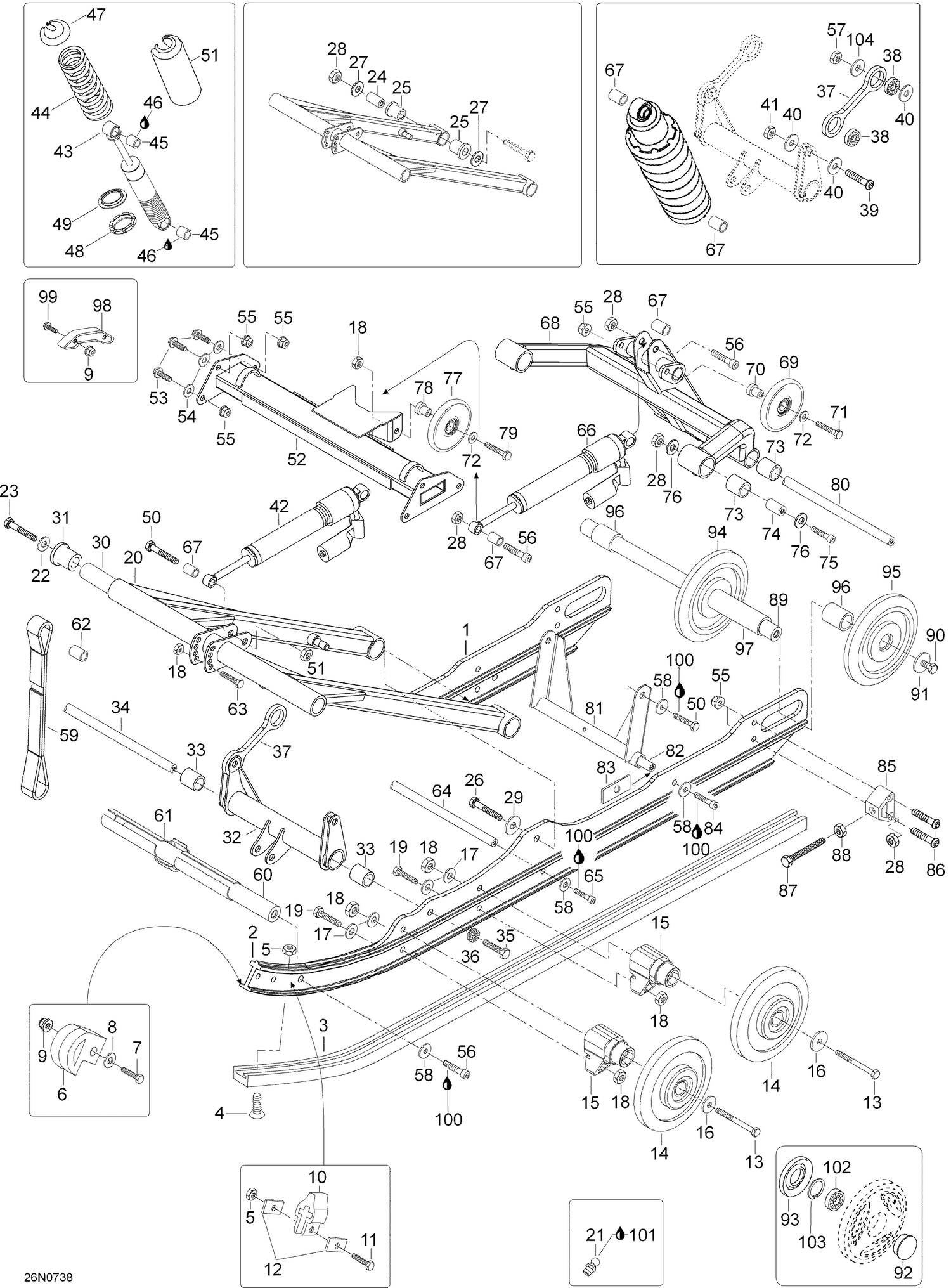

08- Rear Suspension

08- Rear Suspension

Parts (103)

RefPart NumberDescription
1 605255122 R.H. Runner
2 605255121 L.H. Runner
3 605253883 Shoe
4 40845 Socket head screw M6 x 25
5 33010 Lock Nut M6 (1=10Pcs)
6 605348954 Runner protector
7 40031 Hex. screw M6 x 25
8 20003 Washer A6,4
9 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
10 5442328 STOPPER-RUBBER - Call your local BRP dealership
11 40032 Hex. screw M6 x 30
12 548470 Washer
13 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
14 503190796 WHEEL 139 MM ASS'Y, FULL MOON - Call your local BRP dealership
15 605450182 SUPPORT - Call your local BRP dealership
16 503183100 Washer
17 234081410 Flat Washer 8 mm This part replaces 20104.
18 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
19 40037 Hex. screw M8 x 25
20 605354944 Front arm
21 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
22 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
23 40243 Hex. screw M12 x 60
24 605354157 Shaft
25 31065 Cushion
26 40021 Hex. screw M10 x 70
27 20116 Washer
28 33012 Elastic stop nut M10
29 503183300 Lock washer
30 5346135 Shaft
31 31024 Cushion
32 605354963 Front Aarm
33 31024 Cushion
34 605355115 Shaft
35 40017 Screw M10 x 50
36 20068 Lock washer D10
37 605254159 Link plate
38 605631003 Ball bearing
39 605640010 SCREW M10X20 - Call your local BRP dealership
40 20012 Washer A10.5DIN 9021-ST MUP(1=10pcs) - Call your local BRP dealership
41 33055 Elastic stop nut M10
43 605623024 Shock, front arm
43 605623026 Shock, rear arm
44 25054 Spring, front arm
44 605625000 Spring, rear arm
45 31094 Cushion
46 320006 Loctite 641, 50ml
47 605354631 Spring stopper
48 230048 Cam
49 230049 Spring guide
50 40016 Hex. screw M10 x 45
51 33012 Elastic stop nut M10
52 605354961 Upper arm
53 40037 Screw M8 x 25
54 234081410 Flat Washer 8 mm This part replaces 20004.
55 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
56 40134 Screw Socket HD.DIN 912
57 33012 Elastic stop nut M10
58 20105 Washer, hardened M10
59 605355116 Stopper strap
60 605353958 Shaft
61 605355096 Limiter
62 605454518 Sleeve
63 207084544 Hex. Screw M8 X 45 This part replaces 40008.
64 5343471 Shaft
65 40134 Screw Socket HD.DIN 912
67 5446652 Bushing
68 605354962 Rear arm
69 46100 Idler wheel 133/black
70 605454461 Sleeve
71 40007 Screw M8 x 40
72 234082410 Flat Washer 8 mm This part replaces 20010.
73 31065 Cushion
74 605354157 Shaft
75 40254 Socket head screw M10 x 65
76 234002410 Flat Washer 10 mm This part replaces 20011.
77 572043500 Idler Wheel
78 605454167 Sleeve
79 40006 Screw M8 x 35
80 605355118 Shaft
81 605353953 Rear arm
82 605355119 Shaft
83 5446786 Support plate
84 40134 Screw Socket HD.DIN 912
85 5341633 Tensioner
86 40392 Socket head screw M8 x 45
87 40239 Hex. screw M10 x 100
88 232006414 Hex. Nut M10 This part replaces 33004.
89 5341511 Shaft
90 40050 Hex. screw M10 x 35
91 503183300 Aluslevy M10 hardened
92 570063600 Cap
93 572089000 LABYRINTH SEAL - Call your local BRP dealership
94 503189478 Idler wheel 165
95 503190856 Support wheel, 165mm/Full Moon This part replaces 503189374.
96 5441512 Sleeve
97 5441513 Sleeve
98 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
99 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
100 293800005 Loctite 271, 10ml
101 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
102 293350115 Ball Bearing This part replaces 503190795.
103 371901700 CIRCLIP - Call your local BRP dealership
