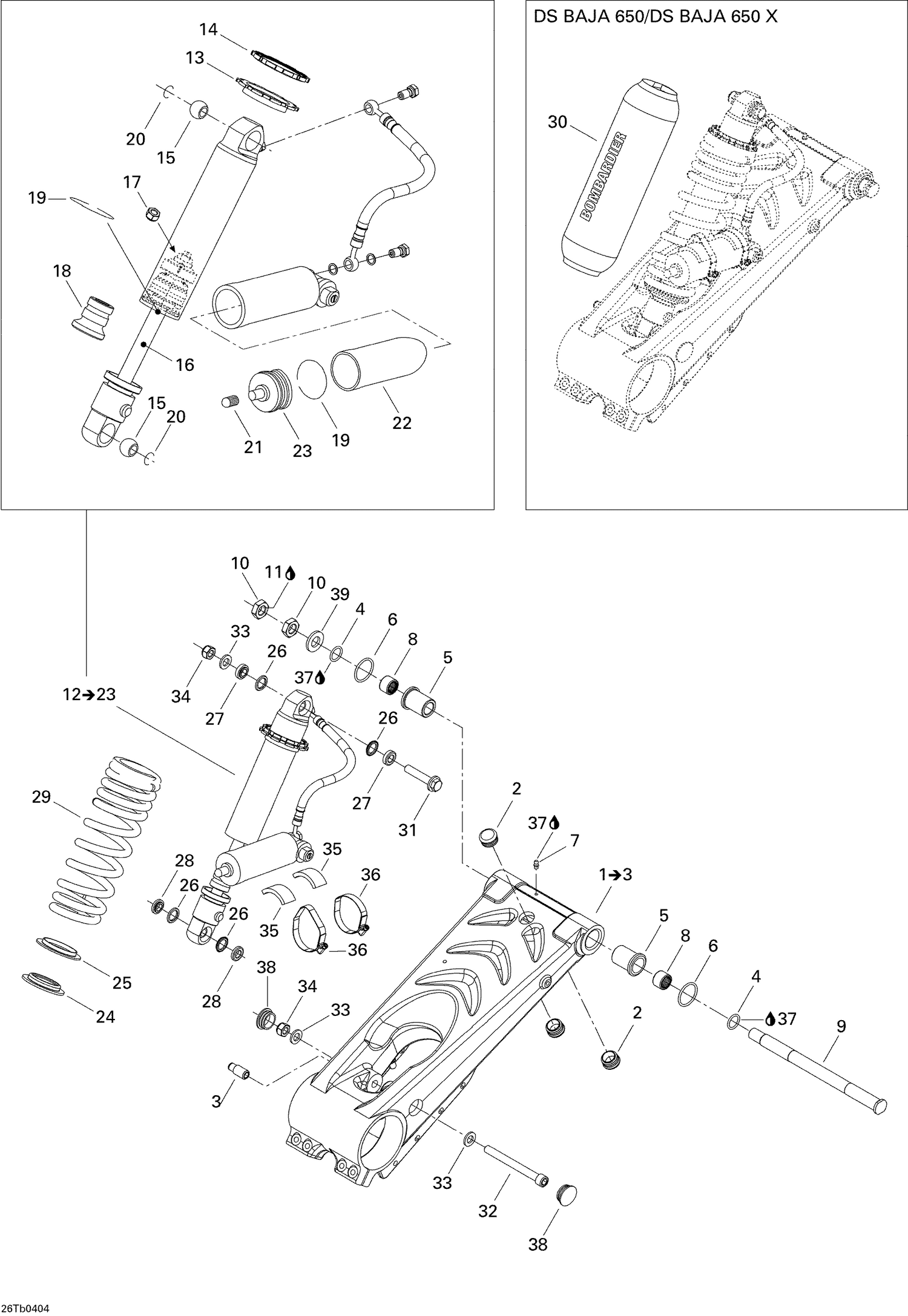

| Ref | Part Number | Description |
|---|
| 2 |
706200309 |
PLUG 1-1/8 - Call your local BRP dealership |
| 3 |
706000253 |
GUIDE SUPPORT - Call your local BRP dealership |
| 4 |
293300074 |
O-RING - Call your local BRP dealership |
| 5 |
706000284 |
Cushion |
| 6 |
293300068 |
O-Ring |
| 7 |
408200700 |
Grease Fitting |
| 8 |
293350050 |
NEEDLE BEARING - Call your local BRP dealership |
| 9 |
706000286 |
PIVOT AXLE - Call your local BRP dealership |
| 10 |
232180411 |
HEX. JAM NUT M18 - Call your local BRP dealership |
| 11 |
293800060 |
Loctite 243, 10 ml |
| 13 |
706000062 |
SHOCK SPRING STOPPER - Call your local BRP dealership |
| 14 |
706000082 |
STOPPER RING - Call your local BRP dealership |
| 15 |
706000105 |
Ball Joint |
| 16 |
706000230 |
Piston Rod |
| 17 |
706000188 |
U-NUT - Call your local BRP dealership |
| 18 |
706000189 |
BUMPER PAD - Call your local BRP dealership |
| 19 |
706000190 |
CIRCLIP 46 MM - Call your local BRP dealership |
| 20 |
706000191 |
CIRCLIP 25.3 MM - Call your local BRP dealership |
| 21 |
706000192 |
Valve Cap |
| 22 |
706000193 |
Reservoir |
| 23 |
706000194 |
Guide |
| 24 |
706000061 |
SPRING STOPPER - Call your local BRP dealership |
| 25 |
706000060 |
SPRING GUIDE - Call your local BRP dealership |
| 26 |
293250111 |
SEAL - Call your local BRP dealership |
| 27 |
706000103 |
CUSHION - Call your local BRP dealership |
| 28 |
706000247 |
INFERIOR CUSHION - Call your local BRP dealership |
| 31 |
250000095 |
SHOCK SCREW - Call your local BRP dealership |
| 32 |
231022087 |
SOCKET HEAD SCREW M12 X 120 - Call your local BRP dealership |
| 33 |
234021410 |
Flat Washer 12 mm |
| 34 |
232521416 |
Elastic Stop Nut M12 |
| 35 |
293830083 |
PROTECTOR - Call your local BRP dealership |
| 36 |
293650118 |
Norma Gear Clamp This part replaces 514052859. |
| 37 |
293550010 |
Synthetic Grease, 400 G |
| 38 |
706200308 |
Plug 1-1/4" |
