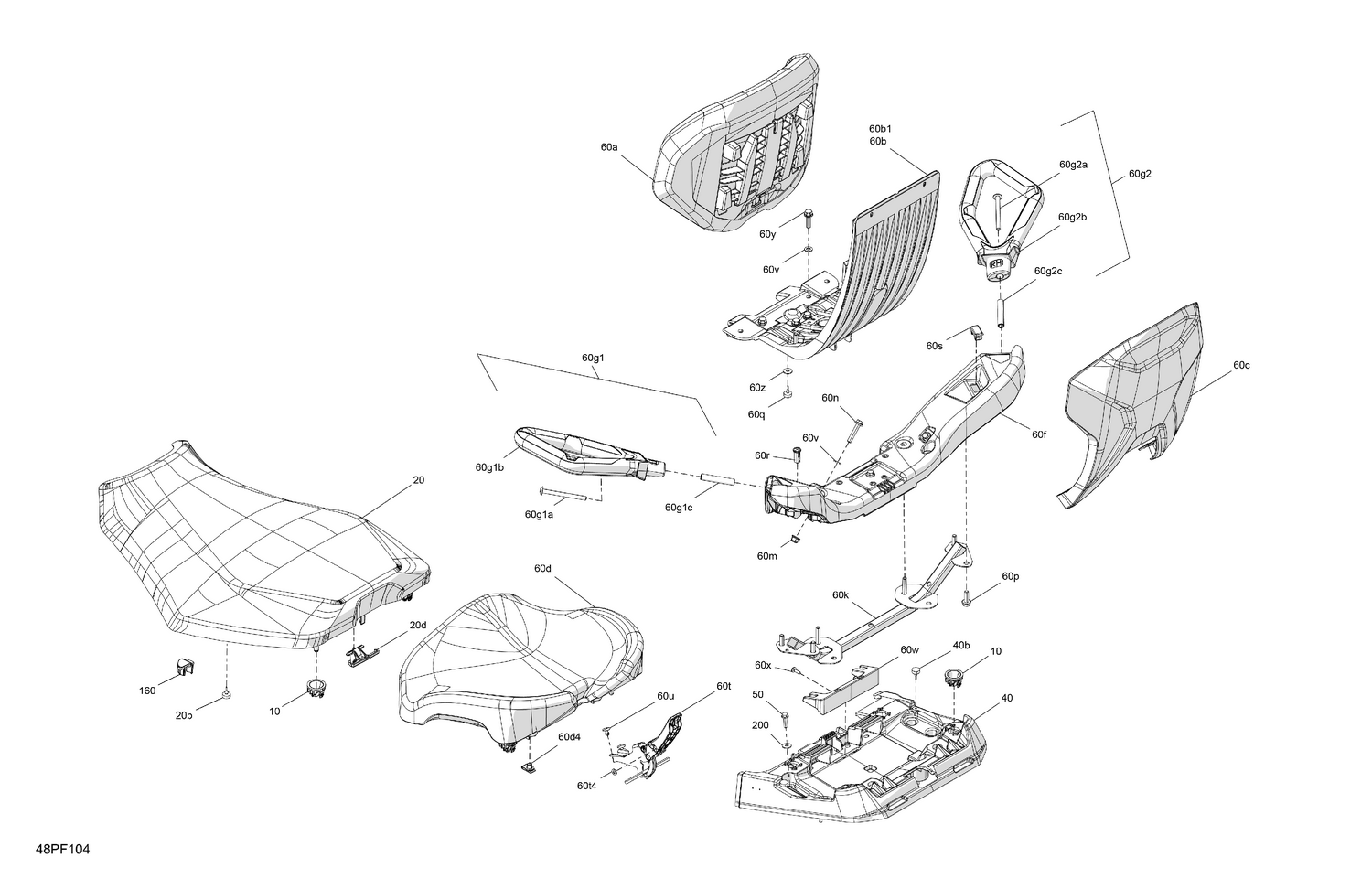

07- Body - Seat
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 708003609 | Seat Stopper |
| 20b | 708003866 | Seat Stopper |
| 20d | 708000909 | Latch |
| 40 | 715010537 | Seat Anchorage Kit |
| 40b | 708003866 | Seat Stopper |
| 50 | 207662544 | Hex. Flange Screw M6 X 25 |
| 60a | 708003747 | Passenger Backrest |
| 60b1 | XXX | Not Available As Spare Parts |
| 60c | 708003191 | Backrest Trim |
| 60d4 | 250100069 | Panel Nut M8 X 1.25 |
| 60f | 708004009 | Handle Support |
| 60g1a | 250000806 | Torx Truss M8 X 90 |
| 60g1b | 703500806 | LH Passenger Seat Handle Kit |
| 60g1c | 705006129 | Sleeve |
| 60g2a | 250000806 | Torx Truss M8 X 90 |
| 60g2b | 703500807 | RH Passenger Seat Handle Kit |
| 60g2c | 705006129 | Sleeve |
| 60k | 708004010 | Handle Support Reinforcement Ass'y |
| 60m | 233281414 | Hex. Flange Elastic Nut M8 |
| 60n | 207684054 | Hex. Flange Screw M8 X 40 |
| 60p | 207682544 | Hex. Flange Screw M8 X 25 |
| 60q | 708003866 | Seat Stopper |
| 60r | 710003910 | Pilot Lamp Cap |
| 60s | 708001511 | Insert |
| 60t4 | 234061600 | Stainless Flat Washer M6 |
| 60u | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 60v | 234081410 | Flat Washer 8 mm |
| 60w | 708004106 | Backrest Support Reinforcement |
| 60x | 250000720 | Torx Screw K50 X 16 |
| 60y | 207583054 | Hex. Flange Screw S.GRIP M8 X 30 |
| 60z | 234062670 | Stainless Steel Flat Washer |
| 160 | 708004198 | Cap |
