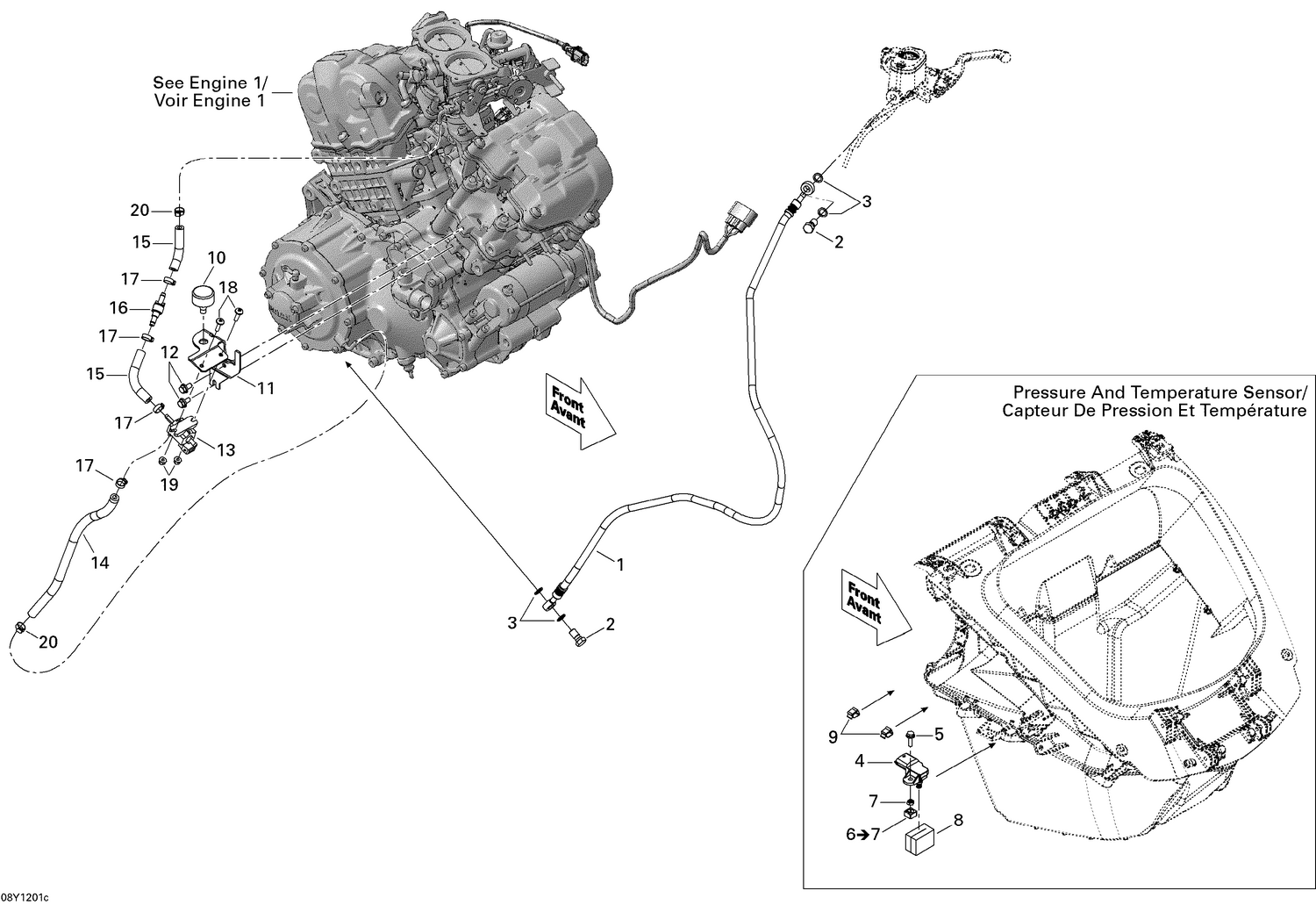

01- Engine 2_SM5
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 707001120 | HOSE - Call your local BRP dealership |
| 2 | 414920500 | Banjo Bolt |
| 3 | 414920600 | Washer |
| 4 | 707000995 | Pressure And Temperature Sensor |
| 5 | 207662084 | Hex. Flange Screw M6 X 20 |
| 7 | 232561600 | Hex. Elastic Stop Nut M6 |
| 8 | 707000586 | Foam Filter |
| 9 | 414227300 | Clip |
| 10 | 708000758 | Rubber Stopper |
| 11 | 707000756 | Intake Support |
| 12 | 207661244 | Hex. Flange Screw M6 X 12 |
| 13 | 707001596 | Solenoid Valve This part replaces 707000530. |
| 14 | 513033565 | Hose |
| 15 | 513033565 | Hose |
| 16 | 513033469 | Check Valve |
| 17 | 293650042 | Oetiker Clamp |
| 18 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 19 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
