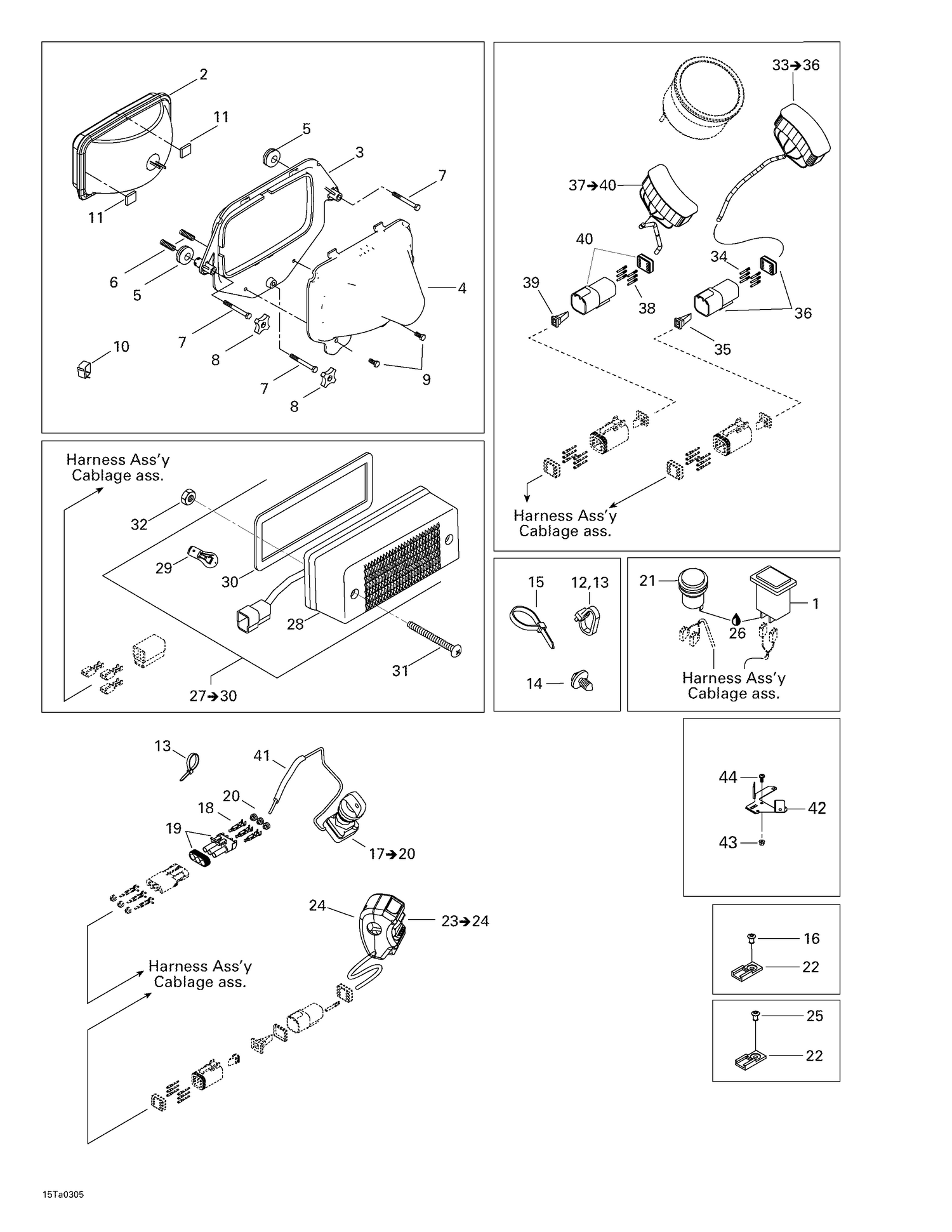

10- Main Harness And Electrical Accessories
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710000161 | HOUR METER - Call your local BRP dealership |
| 2 | 710000001 | HEADLAMP - Call your local BRP dealership |
| 3 | 705000474 | Head Lamp Support |
| 4 | 705000023 | Protector |
| 5 | 709000582 | Grommet This part replaces 293720053. |
| 6 | 517168600 | Spring |
| 7 | 250000008 | HEX. SCREW K40 X 40 - Call your local BRP dealership |
| 8 | 572106600 | Handle |
| 9 | 241641040 | PHILLIPS SCREW K40 X 10 - Call your local BRP dealership |
| 10 | 414227300 | Clip |
| 11 | 293830088 | Rubber Pad |
| 12 | 414115200 | Tie-Rap 180 mm |
| 13 | 293750002 | Tie Wrap 142 mm |
| 14 | 293730040 | Mount Dart This part replaces 293730018. |
| 15 | 293750008 | Tie Wrap 368 mm |
| 16 | 390402400 | Pop Rivet 3/16" |
| 18 | 278000223 | Female Terminal |
| 19 | 278000273 | Male Housing, 3 Circuits |
| 20 | 278000218 | Wire Seal |
| 21 | 861507200 | Outlet Power Kit, 12 Volts This part replaces 710000024. |
| 22 | 270000141 | Clip |
| 24 | 710000173 | BACK COVER - Call your local BRP dealership |
| 25 | 390402200 | Pop Rivet 3/16" |
| 26 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 28 | 710000055 | TAIL LIGHT LENS, RED - Call your local BRP dealership |
| 29 | 520000758 | Bulb This part replaces 410504100. |
| 30 | 710000129 | GASKET - Call your local BRP dealership |
| 31 | 208656091 | PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership |
| 32 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 34 | 409014800 | MALE TERMINAL - Call your local BRP dealership |
| 35 | 409014600 | Male Lock, 6 Circuits |
| 36 | 409015200 | Male Terminal Housing, 6 Circuits |
| 38 | 409014800 | MALE TERMINAL - Call your local BRP dealership |
| 39 | 409014600 | Male Lock, 6 Circuits |
| 40 | 409015200 | Male Terminal Housing, 6 Circuits |
| 41 | 710000171 | Protector Tube |
| 42 | 710000159 | Housing Support, Black |
| 43 | 232551414 | Elastic Stop Nut M5 |
