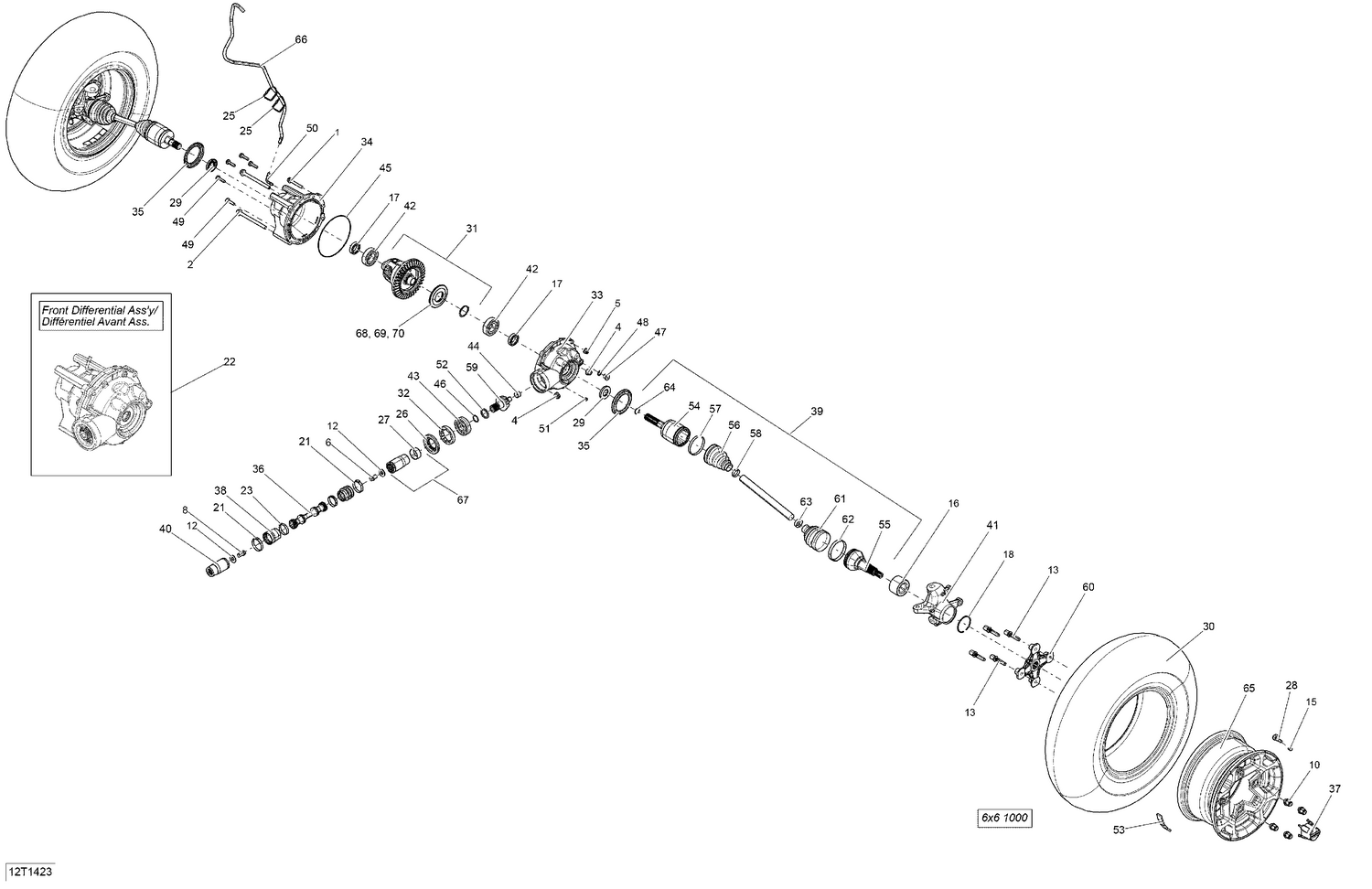

07- Drive System, Front _12T1423
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207685544 | Hex. Flange Screw M8 X 55 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 |
| 3 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 4 | 233201436 | Hex. Flange Elastic Nut M10 |
| 5 | 233281414 | Hex. Flange Elastic Nut M8 |
| 6 | 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 7 | 250000787 | Hex. Flange Screw M6 X 25 This part replaces 250000435. |
| 7b | 293450317 | Insert |
| 8 | 250001042 | Hex Flange Screw M12 X 20 This part replaces 250000540. |
| 10 | 250100184 | Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 11 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 12 | 250200102 | Flat Washer M12 |
| 14 | 250400036 | Cotter Pin |
| 15 | 293000110 | Valve Cap |
| 16 | 293350150 | Ball Bearing This part replaces 293350040. |
| 17 | 293350044 | Ball Bearing |
| 18 | 293370019 | Circlip |
| 21 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 22 | 703500908 | Front Differential This part replaces 705401485. |
| 23 | 293650199 | Oetiker Gear Clamp |
| 25 | 414115200 | Tie-Rap 180 mm |
| 26 | 705401481 | Oil Seal |
| 27 | 705400036 | Wear Ring |
| 28 | 705400193 | Rim Valve With Cap |
| 29 | 705401481 | Oil Seal |
| 31 | 703500872 | DIFFERENTIAL KIT - Call your local BRP dealership This part replaces 705400822. |
| 32 | 705401603 | Nut This part replaces 705400661. |
| 33 | 705400761 | FRONT COVER - Call your local BRP dealership |
| 34 | 705400762 | FRONT COVER - Call your local BRP dealership |
| 35 | 705400780 | Wear Sleeve |
| 36 | 705400913 | Propeller Shaft |
| 37 | 705400928 | Wheel Cap |
| 38 | 705401093 | Rubber Boot |
| 39 | 705401115 | LH Front - Premium CV Axle |
| 39 | 705401116 | RH Front - Premium CV Axle |
| 40 | 703500678 | Front Bushing Shaft Kit |
| 41 | 705403307 | LH Knuckle This part replaces 705401290. |
| 41 | 705403308 | RH Knuckle This part replaces 705401291. |
| 42 | 705401606 | Ball Bearing This part replaces 705500259. |
| 43 | 705500260 | Ball Bearing |
| 44 | 705500261 | Needle Bearing |
| 45 | 705500265 | Seal |
| 46 | 705500267 | O-Ring |
| 47 | 705500504 | Fill Level Plug |
| 48 | 705500506 | Copper Washer |
| 49 | 705401601 | Screw This part replaces 705500892. |
| 50 | 705500893 | VENT VALVE - Call your local BRP dealership |
| 51 | 705500894 | Drain Plug |
| 52 | 705501162 | Pinion Gear Shim |
| 54 | 705401348 | RH Plunging Joint |
| 54 | 705401350 | LH Plunging Joint |
| 55 | 705401344 | CV Joint |
| 57 | 715900284 | Oetiker Clamp, Large |
| 58 | 715900261 | Oetiker Clamp, Small |
| 59 | 705501588 | Engrenage 10 Dents - Appelez votre concessionnaire BRP local |
| 60 | 705501716 | Wheel Hub Ass'y |
| 62 | 715900282 | Oetiker Clamp |
| 63 | 715900283 | Oetiker Clamp, Small |
| 64 | 705401349 | Circlip Joint |
| 66 | 219704410 | Polyurethane Hose 10000Mm Long |
| 67 | 703500678 | Front Bushing Shaft Kit |
| 68 | 705401604 | Shim This part replaces 703500050. |
| 69 | 705401604 | Shim This part replaces 703500288. |
