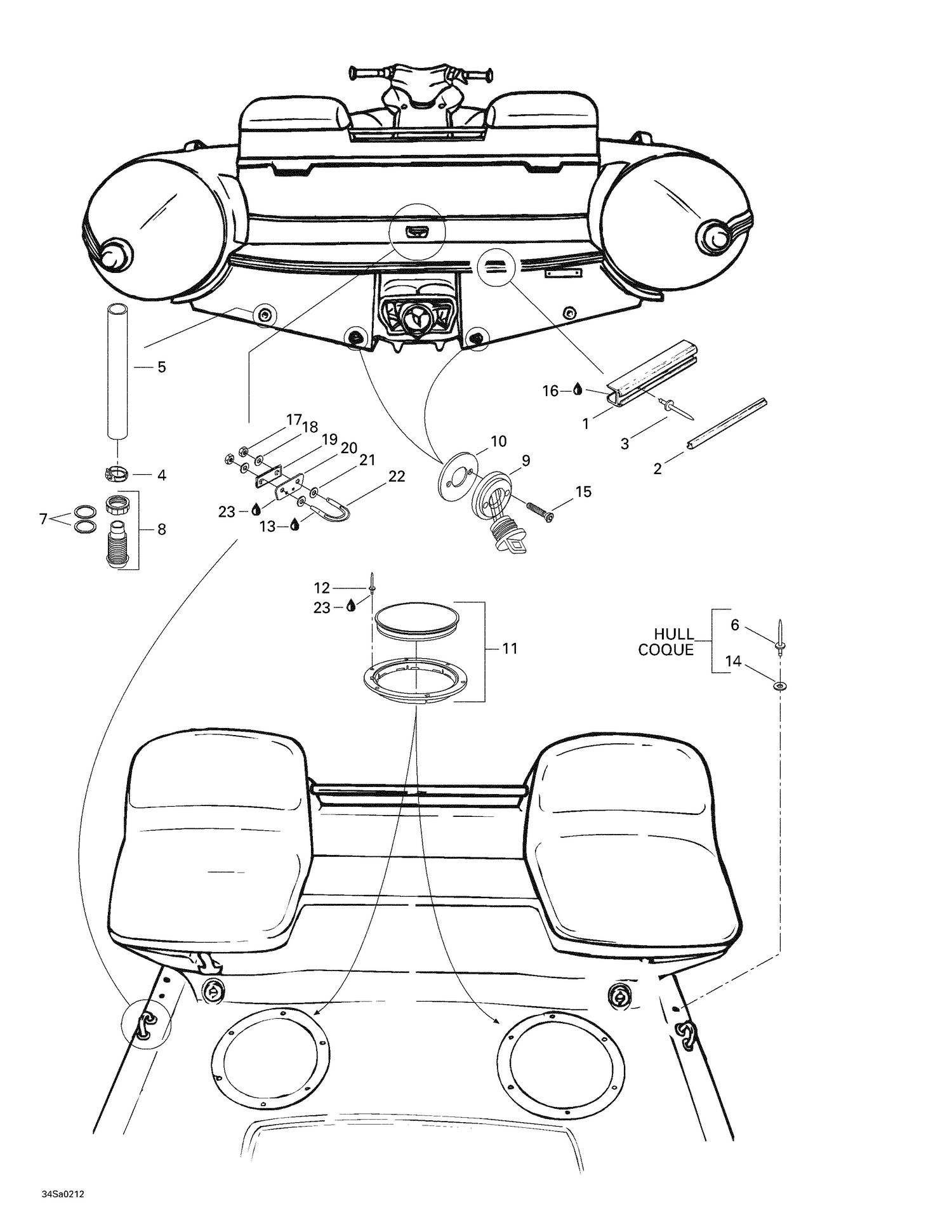

09- Body And Accessories 1
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204050278 | Black, Rear Bumper |
| 2 | 204050279 | REAR BUMPER TRIM, BLACK - Call your local BRP dealership |
| 3 | 293150014 | Pop Rivet 3/16" |
| 4 | 293650019 | Tridon Gear Clamp |
| 5 | 291000102 | Flexible Hose (Meter) |
| 6 | 293150043 | Pop Rivet 3/16" |
| 7 | 293250006 | GASKET - Call your local BRP dealership |
| 8 | 293710162 | Fitting This part replaces 293710015. |
| 9 | 292000187 | Drain Plug |
| 10 | 293250030 | GASKET - Call your local BRP dealership |
| 11 | 204000060 | Cover |
| 12 | 293150039 | Pop Rivet 3/16" |
| 13 | 293800005 | Loctite 271, 10 ml |
| 14 | 234051600 | Flat Washer M5, Stainless |
| 15 | 211000021 | PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership |
| 17 | 232081600 | Hex. Nut M8 |
| 18 | 234181601 | Lock Washer 8 mm, Stainless |
| 19 | 291000307 | RETAINING PLATE - Call your local BRP dealership |
| 20 | 291000544 | Finition Plate |
| 21 | 293050001 | Flat Washer M8.5 x 18 |
| 22 | 292000063 | U-CLAMP - Call your local BRP dealership |
