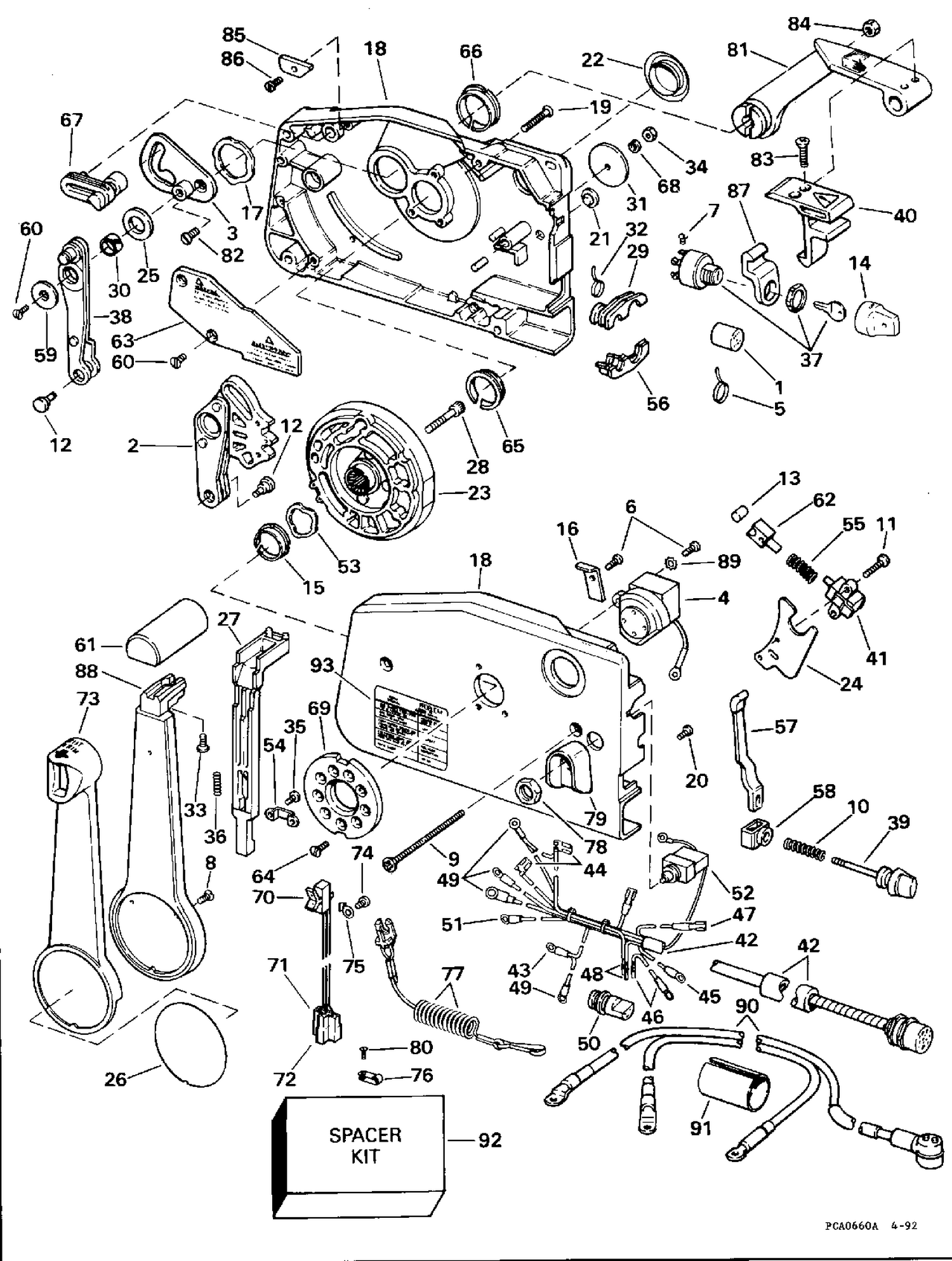

REMOTE CONTROL
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0585992 | HORN This part replaces 0583891. |
| 5 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 18 | 0175946 | HOUSING & COVER ASSY. |
| 20 | 0332200 | CREW,. Ground |
| 22 | 0334762 | PLUG |
| 28 | 0323775 | VIS, collier |
| 29 | 0323762 | GROMMET |
| 42 | 0393129 | CABLE |
| 52 | 0393132 | EMERGECY IGNITION CUT-OFF SWITCH ASSY. |
| 56 | 0323763 | GROMMET |
| 70 | 0395821 | SWITCH & LEAD ASSEMBLY |
| 79 | 0328170 | GUARD |
| 87 | 0331048 | LATCH |
| 91 | 0512423 | SLEEVE |
| 92 | 0390795 | SPACE KIT, Remote control mounting |
| 0175943 | 0175943 | REMOTE CONTROL ASSY. |
| 0434060 | 0176517 | TRIM CONVERSION KIT This part replaces 0434060. |
