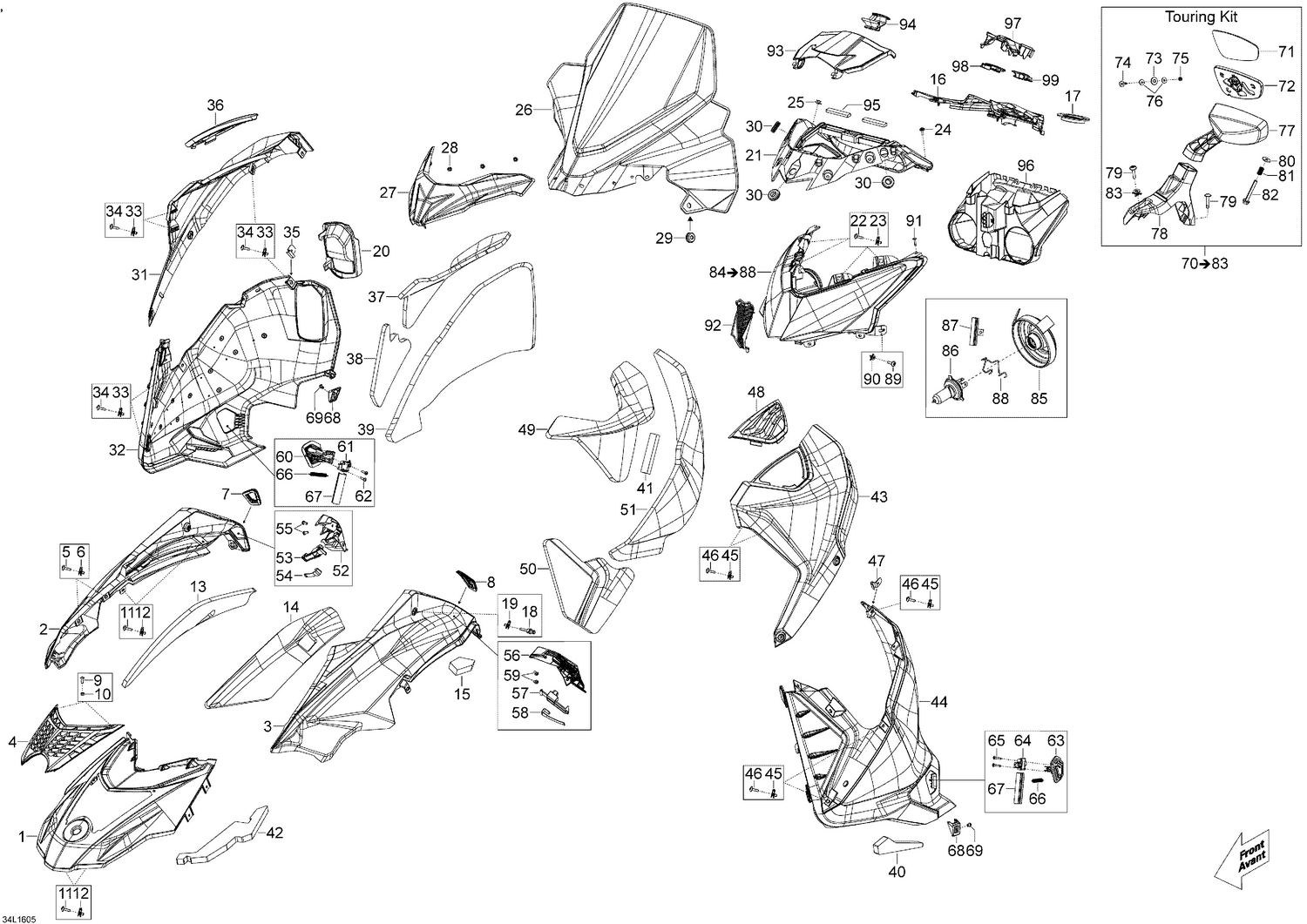

09- Hood And Windshield
Parts (94)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517305571 | White Hood |
| 2 | 517305416 | White RH Hood |
| 3 | 517305417 | White LH Hood |
| 4 | 517305362 | Hood Grill |
| 5 | 250000528 | Torx Screw M5 X 20 |
| 6 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 7 | 517305344 | RH Rubber Button |
| 8 | 517305345 | LH Rubber Button |
| 9 | 235551494 | Button HD Torx Screw M5 x 14 |
| 10 | 233251434 | Flanged Elastic Nut M5 |
| 11 | 250000528 | Torx Screw M5 X 20 |
| 12 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 13 | 517305481 | Foam |
| 14 | 517305482 | Foam |
| 15 | 517305824 | Foam |
| 16 | 517305205 | Console Rear |
| 17 | 517304518 | Console Nut |
| 18 | 517305531 | Knob |
| 19 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 20 | 517305061 | Deep Black, RH Console |
| 22 | 250000528 | Torx Screw M5 X 20 |
| 23 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 24 | 250000587 | Torx Screw M5 X 26 |
| 26 | 860201115 | Windshield (635) Ass'y |
| 27 | 517305307 | Support |
| 28 | 732610072 | Push Nut |
| 29 | 517307161 | Grommet This part replaces 517302841. |
| 30 | 517306015 | Grommet |
| 31 | 517305425 | White RH Panel |
| 32 | 517305249 | Black RH Panel |
| 33 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 34 | 250000528 | Torx Screw M5 X 20 |
| 35 | 517305515 | Guide Plate |
| 36 | 517305251 | Grill |
| 37 | 517305484 | Foam |
| 38 | 517305485 | Foam |
| 39 | 517305486 | Foam |
| 40 | 517305813 | Foam |
| 41 | 517305814 | Foam |
| 42 | 517305815 | Foam |
| 43 | 517305426 | White LH Panel |
| 44 | 517305253 | Black LH Panel |
| 45 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 46 | 250000528 | Torx Screw M5 X 20 |
| 47 | 517305515 | Guide Plate |
| 48 | 517305254 | Grill |
| 49 | 517305488 | Foam |
| 50 | 517305489 | Foam |
| 51 | 517305490 | Foam |
| 52 | 517305315 | RH Lock Body |
| 53 | 517306019 | Lock Arm |
| 54 | 517305317 | Lock Spring |
| 55 | 205951046 | Socket HD Screw M5 x 10 |
| 56 | 517305319 | LH Lock Body |
| 57 | 517306019 | Lock Arm |
| 58 | 517305317 | Lock Spring |
| 59 | 205951046 | Socket HD Screw M5 x 10 |
| 60 | 517305760 | RH Side Panel Bottom Lock |
| 61 | 517305761 | RH Bottom Lock Fixing Part |
| 62 | 250000451 | Torx Flange Screw K40 x 20 |
| 63 | 517305758 | LH Side Panel Bottom Lock |
| 64 | 517305759 | LH Bottom Lock Fixing Part |
| 65 | 250000451 | Torx Flange Screw K40 x 20 |
| 66 | 517305535 | Side Panel Bottom Lock Spring |
| 67 | 517305452 | Bottom Lock Sleeve |
| 68 | 517305323 | Side Panel Support |
| 69 | 390909100 | Avex Rivet |
| 71 | Not | Available As Spare Part - RH Mirror |
| 72 | Not | Available As Spare Part - LH Support |
| 73 | 250200024 | Rubber Washer 5 mm |
| 74 | Not | Available As Spare Part - Pan HD Screw M4 x 20 |
| 75 | Not | Available As Spare Part - Nut M4 |
| 76 | Not | Available As Spare Part - Washer |
| 77 | Not | Available As Spare Part - LH Mirror Hood |
| 78 | Not | Available As Spare Part - LH Mirror Body |
| 79 | 250000587 | Torx Screw M5 X 26 |
| 80 | 234062410 | Flat Washer 6 mm |
| 81 | 279000329 | Spring |
| 82 | 207665044 | Hex. Flange Screw M6 x 50 |
| 83 | 250100035 | Jack Nut M5 |
| 85 | 219400070 | Cap |
| 86 | 515176274 | H4 Halogen Bulb (60/55W, 12V) |
| 87 | 219800282 | Holder Bracket |
| 88 | 219800281 | Spring |
| 89 | 250000528 | Torx Screw M5 X 20 |
| 90 | 250100035 | Jack Nut M5 |
| 91 | 250000725 | Screw M4 X 16 |
| 92 | 517305350 | Cap |
| 93 | 517304912 | Cover |
| 94 | 517304917 | Latch |
| 95 | 517305157 | Seal Joint |
| 96 | 517305095 | Trunk |
| 97 | 517304970 | Support |
| 98 | 517305180 | Cap |
