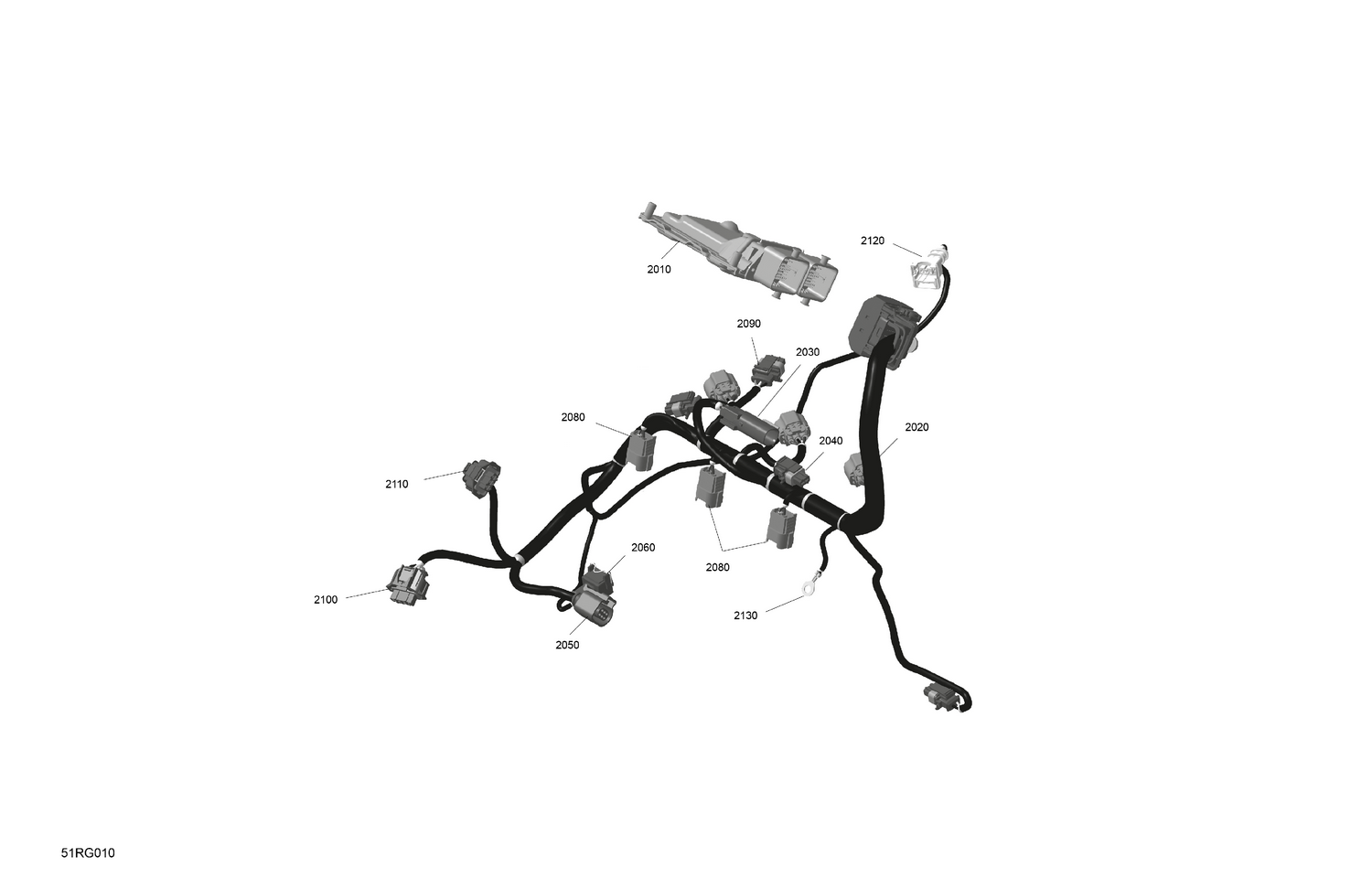

01- ROTAX - Engine Harness And Electronic Module
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2010 | 420464172 | Vehicle Control Unit |
| 2020 | 420666557 | Wiring Harness Ass'y |
| 2030 | 515178347 | Male Housing Connector 4 Pins |
| 2040 | 278001005 | Male Housing, 2 Circuits |
| 2050 | 515177406 | Female Housing |
| 2060 | 278001003 | Male Connector, 2 Circuits |
| 2080 | 515176129 | Female Housing |
| 2090 | 278003197 | Housing |
| 2100 | 515176410 | Male Connector |
| 2110 | 278001829 | Housing Connector, 3 Circuits |
| 2120 | 415128500 | Female Terminal Housing, 2 Circuits |
