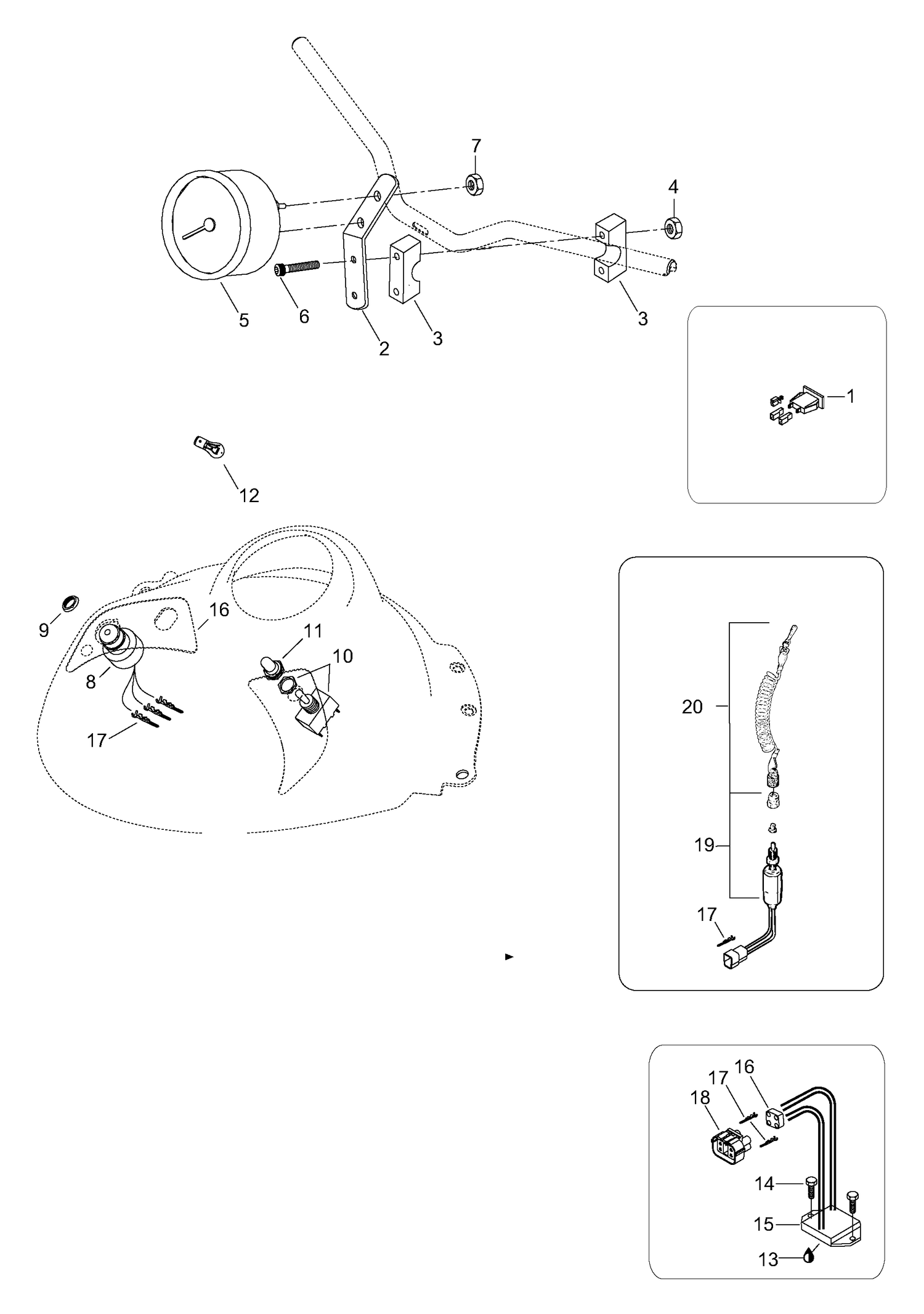

| Ref | Part Number | Description |
|---|
| 1 |
410109700 |
Pilot lamp, red |
| 2 |
5444267 |
Bracket |
| 3 |
548448 |
Support of Bar - Call your local BRP dealership |
| 4 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 5 |
515175341 |
Tachometer white |
| 6 |
40286 |
Allen sc. M8 X 45 DIN912m8.8Zn(1=10pcs) - Call your local BRP dealership |
| 7 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 8 |
515175145 |
DESS SWITCH - Call your local BRP dealership |
| 9 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 10 |
410107300 |
Switch |
| 11 |
515175281 |
Rubber cover for switch |
| 12 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 13 |
413707500 |
Grease tube LMZ 400 g |
| 14 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 15 |
515175655 |
VOLTAGE REGULATOR - Call your local BRP dealership |
| 17 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 18 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
