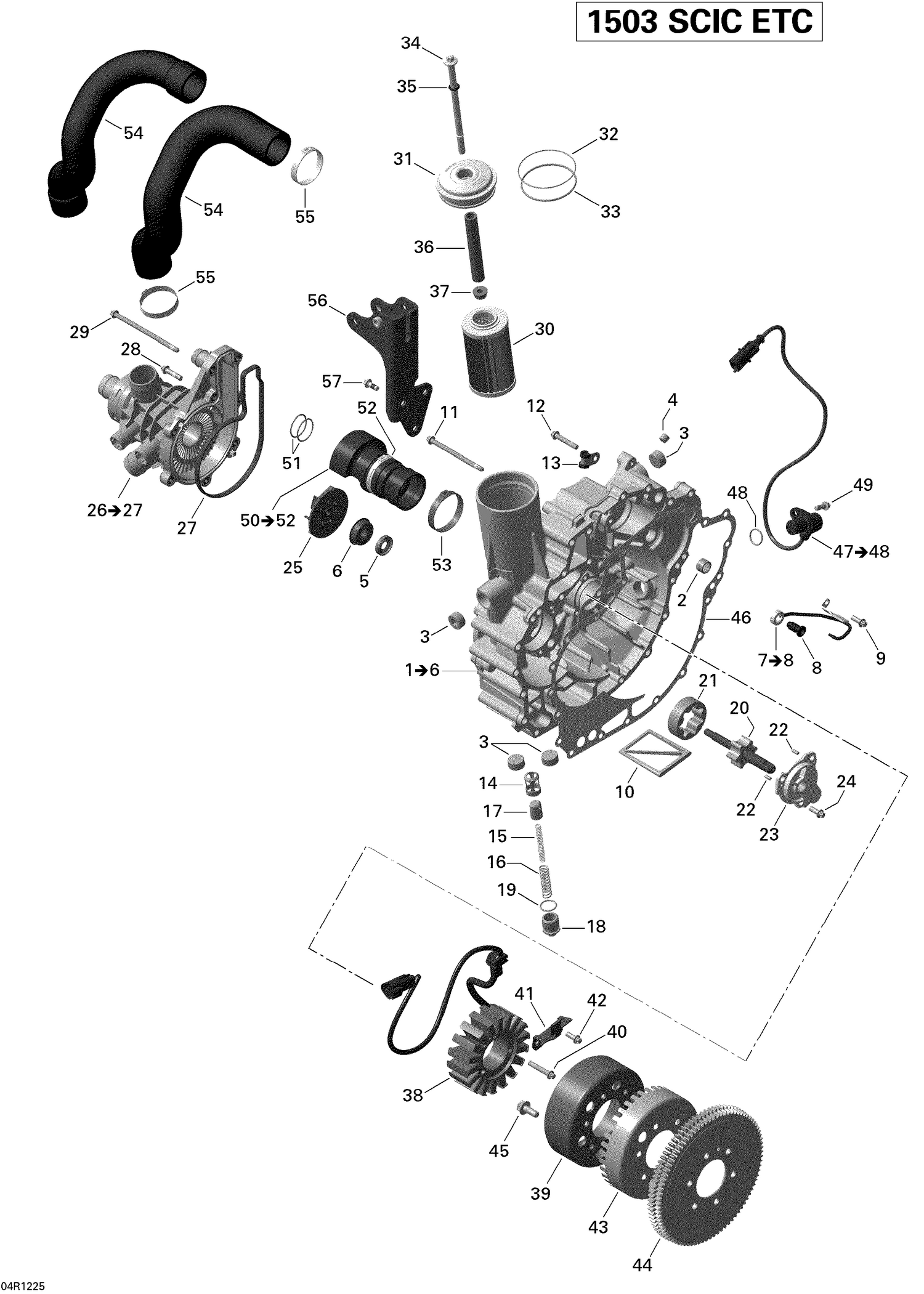

03- PTO Cover And Magneto 2_Sea-Doo Boats
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420232482 | Needle Bushing This part replaces 420232480. |
| 3 | 420641317 | Plug Screw M20 X 1.5 |
| 4 | 420641323 | Plug Screw M10 X 1 |
| 5 | 420650315 | Oil Seal This part replaces 420650310. |
| 6 | 420650371 | Rotary Seal This part replaces 420650370. |
| 8 | 420840181 | Banjo Screw This part replaces 420840180. |
| 9 | 420641048 | Torx Flange Screw M6 X 16 |
| 10 | 420956950 | Oil Sieve |
| 11 | 420641228 | Torx Flange Screw M6 X 85 |
| 12 | 420641258 | Torx Flange Screw M6 X 35 |
| 13 | 420853414 | Clamp |
| 14 | 420256606 | Valve Seat Sleeve |
| 15 | 420939401 | Compression Spring This part replaces 420939400. |
| 16 | 420939211 | Compression Spring This part replaces 420939210. |
| 17 | 420256638 | Piston Valve This part replaces 420256630. |
| 18 | 420641052 | Plug Screw M20 X 1.5 |
| 19 | 420230890 | O-Ring |
| 20 | 420837472 | Pump Shaft Ass'y |
| 21 | 420956675 | Oil Pump Rotor 16 mm |
| 22 | 420929070 | Needle Pin |
| 23 | 420811591 | Oil Pump Cover This part replaces 420811590. |
| 24 | 420641048 | Torx Flange Screw M6 X 16 |
| 25 | 420922801 | Impeller |
| 27 | 420950840 | Water Pump Housing Gasket |
| 28 | 420641238 | Torx Flange Screw M6 X 25 |
| 29 | 420641338 | Torx Flange Screw M6 X 105 |
| 30 | 420956741 | Oil Filter |
| 31 | 420612081 | Oil Filter Cover This part replaces 420612080. |
| 32 | 420850500 | O-Ring |
| 33 | 420230923 | O-Ring This part replaces 420230920. |
| 34 | 420641104 | Hex Screw M8 X 140.5 This part replaces 420641103. |
| 35 | 420950860 | O-Ring |
| 36 | 420857229 | Spacer |
| 37 | 420842610 | Hex. Nut M8 |
| 38 | 420889726 | Stator Plate This part replaces 420889721. |
| 39 | 420296900 | Magneto Flywheel |
| 40 | 420641258 | Torx Flange Screw M6 X 35 |
| 41 | 420926300 | Retaining Plate |
| 42 | 420641048 | Torx Flange Screw M6 X 16 |
| 43 | 420966851 | Trigger Wheel This part replaces 420664082. |
| 44 | 420834871 | Starter Double Gear 87/86T This part replaces 420834874. |
| 45 | 295501162 | Hex Screw This part replaces 420641016. |
| 46 | 420931130 | Timing Drive Cover Gasket (1603 NA) |
| 48 | 420431580 | O-Ring |
| 49 | 420641048 | Torx Flange Screw M6 X 16 |
| 51 | 420631612 | O-Ring This part replaces 420631610. |
| 52 | 420853023 | Gear Clamp 46.8-50.0MM |
| 53 | 420851653 | Gear Clamp |
| 54 | 420922828 | Formed Hose This part replaces 420922825. |
| 55 | 420851687 | Oetiker Clamp |
| 56 | XXX | Not Available As Spare Parts |
