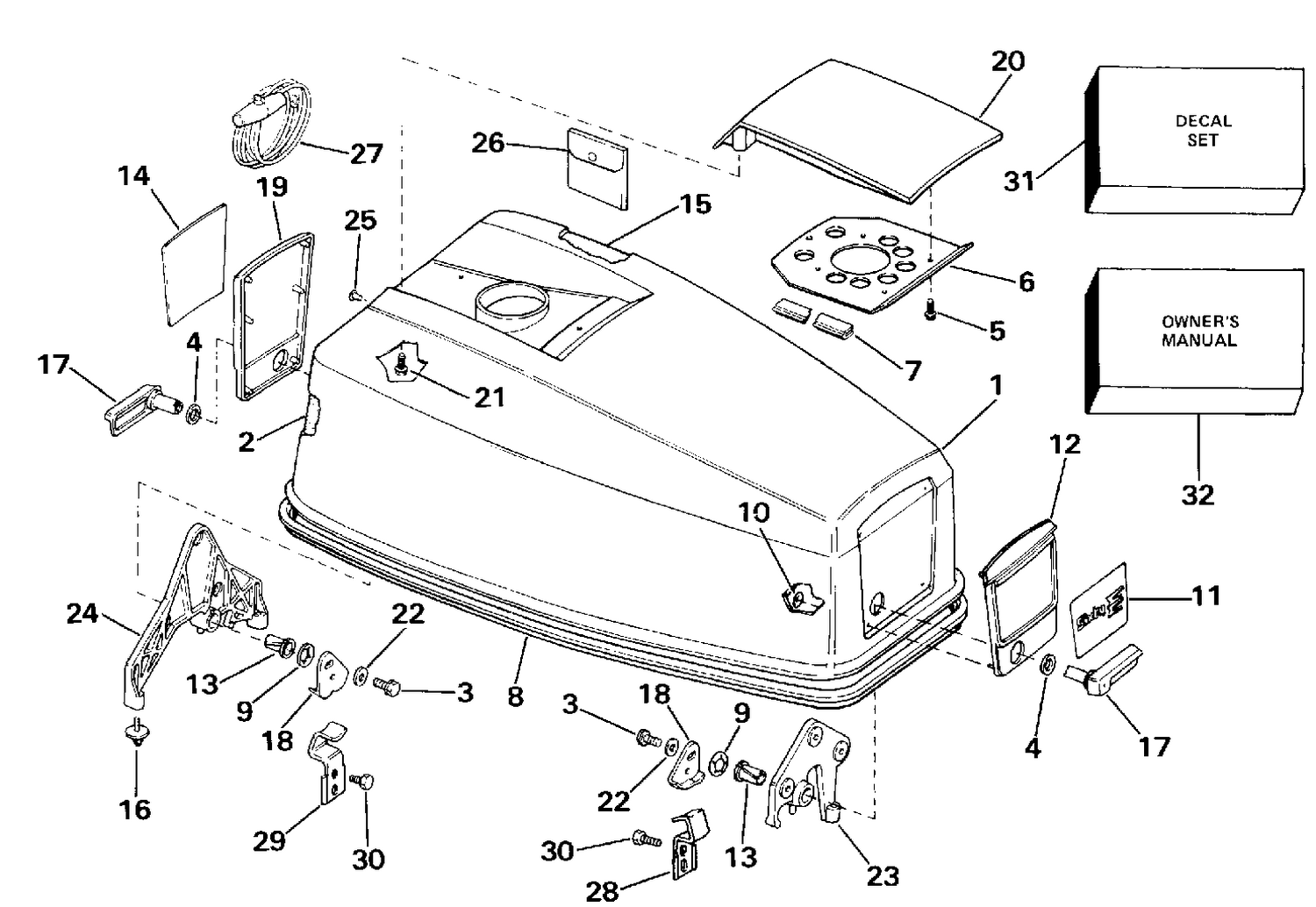

| Ref | Part Number | Description |
|---|
| 1 |
0281676 |
ENGINE COVER ASSY., Evinrude |
| 3 |
0304027 |
VIS, arbre de commande de sens de marche |
| 6 |
0208200 |
BAFFLE , Tilt handle |
| 7 |
0315984 |
SEAL , Baffle to motor cover This part replaces 0209731. |
| 8 |
0209549 |
SEAL, Cover, upper |
| 11 |
0210241 |
PLATE, Applique, front |
| 12 |
0209542 |
APPLIQUE, Front |
| 13 |
0553769 |
BUSHING |
| 14 |
0210242 |
PLATE, Applique, rear |
| 17 |
0209541 |
LATCH, Handle |
| 19 |
0209543 |
APPLIQUE, Rear |
| 23 |
0281703 |
LOCATING BRKT. Front |
| 24 |
0210509 |
LOCATING BRACKET, Rear This part replaces 0281704. |
| 26 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 27 |
0378347 |
CORDE DE LANCEUR |
| 28 |
0208252 |
HOOK, Front |
| 29 |
0323474 |
HOOK, Cover to housing |
| 30 |
0304027 |
VIS, arbre de commande de sens de marche |
| 31 |
0282244 |
DECAL SET |
| 32 |
0210030 |
OWNER'S MANUAL |
| 32 |
0210102 |
OWNER'S MANUAL |
| 32 |
0210275 |
OWNER'S MANUAL |
