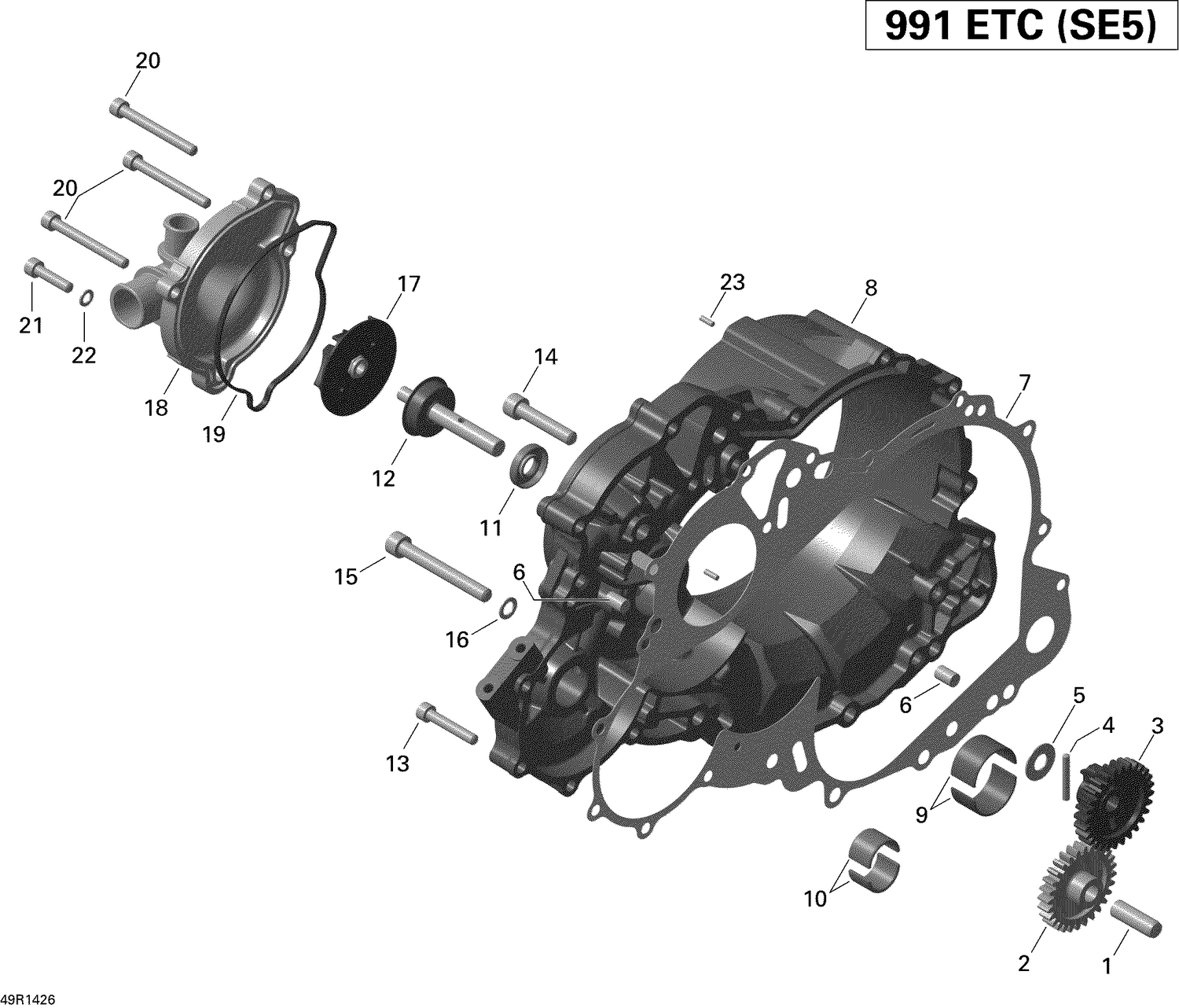

01- Clutch Cover And Water Pump
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420929930 | PIN, M6 X 50 - Call your local BRP dealership |
| 2 | 420634500 | INTERMEDIATE GEAR WATER PUMP - Call your local BRP dealership |
| 3 | 420634490 | Gear Water Pump |
| 4 | 420232431 | Needle Pin |
| 5 | 420227685 | THRUST WASHER - Call your local BRP dealership |
| 6 | 420632010 | Center Pin 8 X 12 |
| 7 | 420650330 | Gasket |
| 9 | 420233791 | Plain Bearing, Red |
| 9 | 420233793 | Plain Bearing, Yellow |
| 9 | 420233794 | Half Bushing This part replaces 420233790. |
| 10 | 420233780 | Plain Bearing, Blue |
| 11 | 420631460 | Oil Seal |
| 12 | 420220414 | Water Pump Shaft |
| 13 | 420241814 | Socket Head Screw M6 X 35 This part replaces 420241811. |
| 14 | 420840682 | Allen Screw M8 X 40 This part replaces 420840681. |
| 15 | 420841841 | SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership |
| 16 | 420950141 | Sealing Ring |
| 17 | 420222501 | Impeller This part replaces 420222500. |
| 18 | 420222514 | WATER PUMP HOUSING - Call your local BRP dealership |
| 19 | 420650240 | Seal Ring |
| 20 | 420240332 | Allen Screw M6 X 55 This part replaces 420240331. |
| 21 | 205062544 | Socket Head Screw M6 X 25 |
| 22 | 420230415 | Seal Washer |
