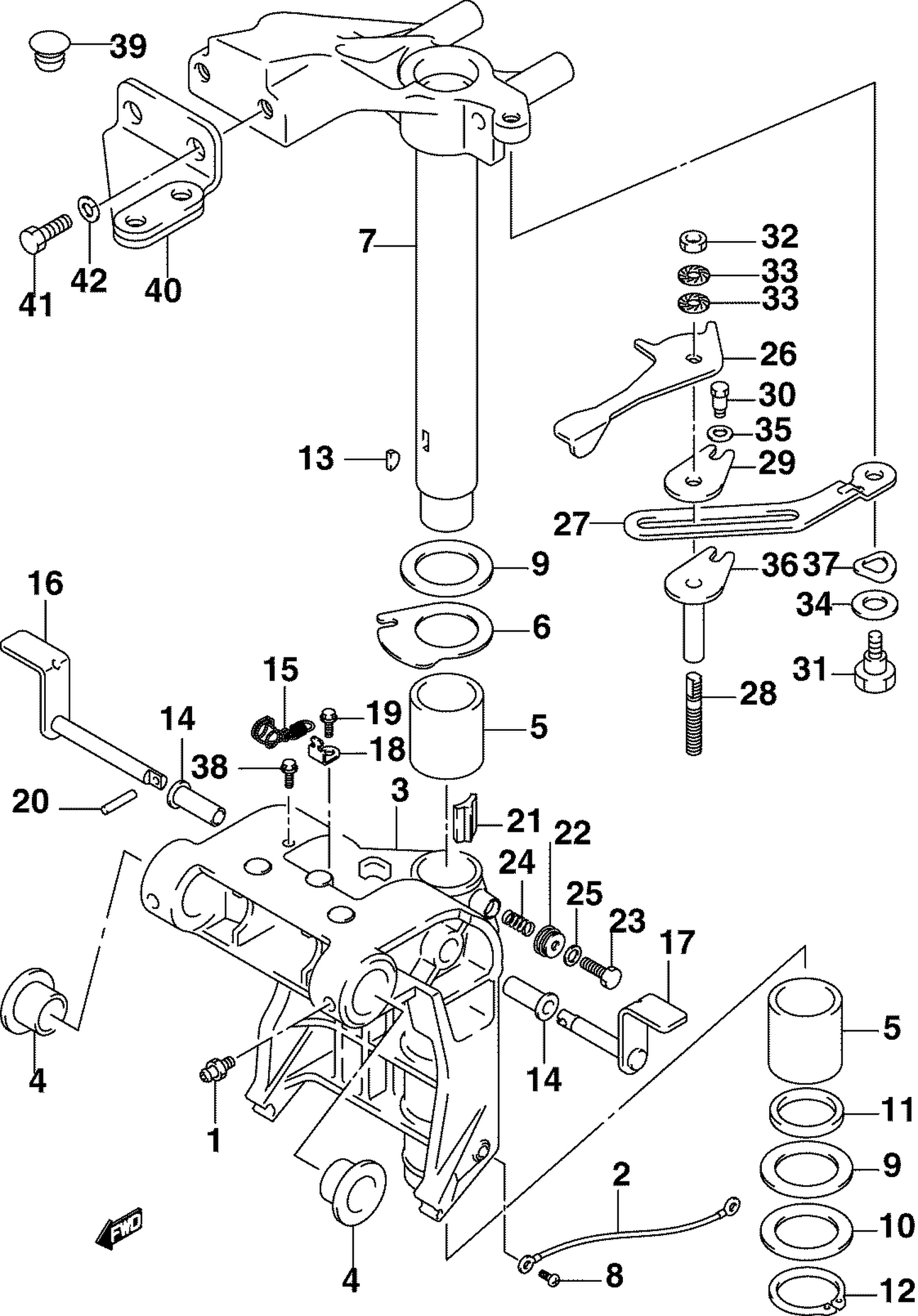

| Ref | Part Number | Description |
|---|
| 1 |
5030207 |
FITTING, GREASE |
| 2 |
5030821 |
BONDING LEAD, Exh. hsg. to bracket |
| 3 |
5034691 |
BRACKET, SWIVEL (L)(WHITE) |
| 4 |
5032058 |
BUSH |
| 5 |
5032064 |
BUSH, STEERING |
| 6 |
5032352 |
PLATE, Steering arm, upper |
| 7 |
5034692 |
BRACKET, STEERING (L)(WHITE) |
| 8 |
5030407 |
SCREW (5X8) |
| 9 |
5031851 |
WASHER |
| 10 |
5032353 |
SHIM, Steering arm, 0.3mm |
| 11 |
5030548 |
SEAL |
| 12 |
5030572 |
CIRCLIP |
| 13 |
5031907 |
KEY |
| 14 |
5031491 |
BUSH, TILT LOCK LEVER |
| 15 |
5031492 |
SPRING ASSY., Tilt lock |
| 16 |
5034248 |
LEVER, TILT LOCK STBD |
| 17 |
5034249 |
LEVER, TILT LOCK PORT |
| 18 |
5032069 |
BRACKET, Tilt Lock Spring |
| 20 |
5031249 |
PIN |
| 21 |
5032354 |
ADJUSTER, STEERING |
| 22 |
5031499 |
CACHE, DISPOSITIF DE RÉGLAGE DE DIRECTION |
| 23 |
5032355 |
BOLT (8X27) |
| 24 |
5031284 |
SPRING |
