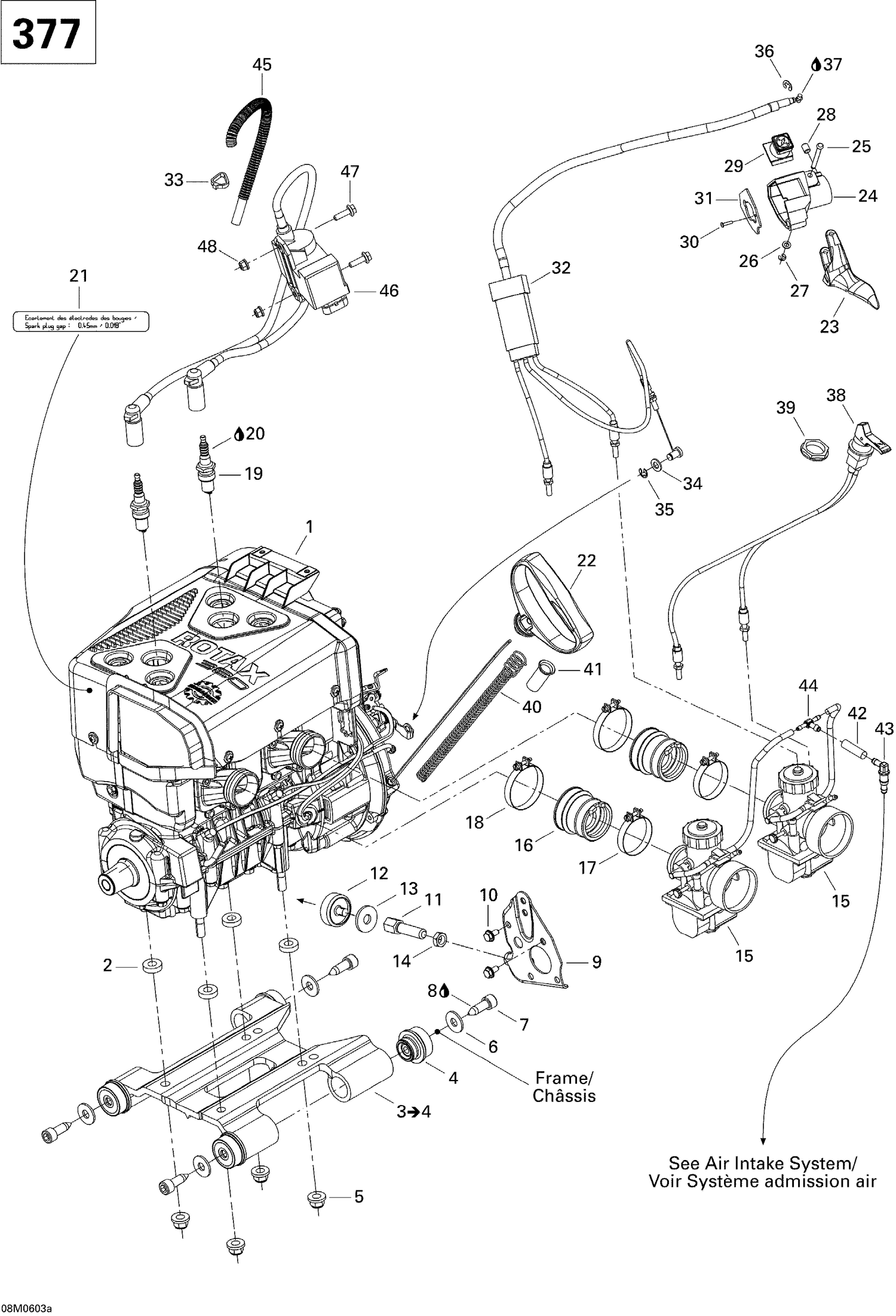

| Ref | Part Number | Description |
|---|
| 1 |
400308914 |
Engine 377 |
| 2 |
512051800 |
SPACER - Call your local BRP dealership |
| 3 |
512060034 |
ENGINE SUPPORT - Call your local BRP dealership |
| 4 |
512059691 |
Rubber Mount |
| 5 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 6 |
250200014 |
Flat Washer M10 This part replaces 506151251. |
| 7 |
205002544 |
Socket Head Screw M10 X 25 |
| 8 |
413703400 |
Sealant LOCTITE 222MS - Call your local BRP dealership |
| 9 |
512059910 |
Support Plate |
| 10 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 11 |
512058800 |
STOPPER SCREW - Call your local BRP dealership |
| 12 |
512059610 |
STOPPER - Call your local BRP dealership |
| 13 |
512059057 |
WASHER - Call your local BRP dealership |
| 14 |
232026414 |
RH Hex. Nut This part replaces 732610019. |
| 15 |
403138774 |
CARBURETOR VM30-213 - Call your local BRP dealership |
| 16 |
512059478 |
Carburetor Adaptor |
| 17 |
293650151 |
GEMI CLAMP - Call your local BRP dealership |
| 18 |
512059834 |
Gemi Clamp |
| 19 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 20 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 21 |
516000986 |
Spark Plug Decal |
| 22 |
572084400 |
Starter Grip |
| 23 |
512061251 |
Handle Ass'y This part replaces 512059999. |
| 24 |
512060603 |
Throttle Housing This part replaces 512059334. |
| 25 |
414438700 |
Lever Pin |
| 26 |
234051600 |
Flat Washer M5, Stainless |
| 27 |
414439000 |
Circlip |
| 28 |
414440800 |
Socket Set Screw M8 X 10 |
| 29 |
515177362 |
Emergency Stop Switch This part replaces 515176091. |
| 30 |
250000022 |
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 31 |
512060390 |
Plate This part replaces 512059507. |
| 32 |
512059973 |
THROTTLE CABLE - Call your local BRP dealership |
| 33 |
414115200 |
Tie-Rap 180 mm |
| 34 |
234081100 |
Flat Washer 8 mm, Nylon |
| 35 |
414753500 |
Circlip |
| 36 |
414274500 |
Circlip |
| 37 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 38 |
512059914 |
CHOKE CABLE - Call your local BRP dealership |
| 39 |
512060671 |
Plastic Nut This part replaces 512060016. |
| 40 |
512059535 |
ROPE GUIDE - Call your local BRP dealership |
| 41 |
512059536 |
TUBE - Call your local BRP dealership |
| 42 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 43 |
414580600 |
Elbow Male Connector |
| 44 |
572045500 |
T-Fitting |
| 45 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 46 |
512060044 |
Calibrated Module |
| 47 |
207662044 |
Hex. Flange Screw M6 X 20 |
