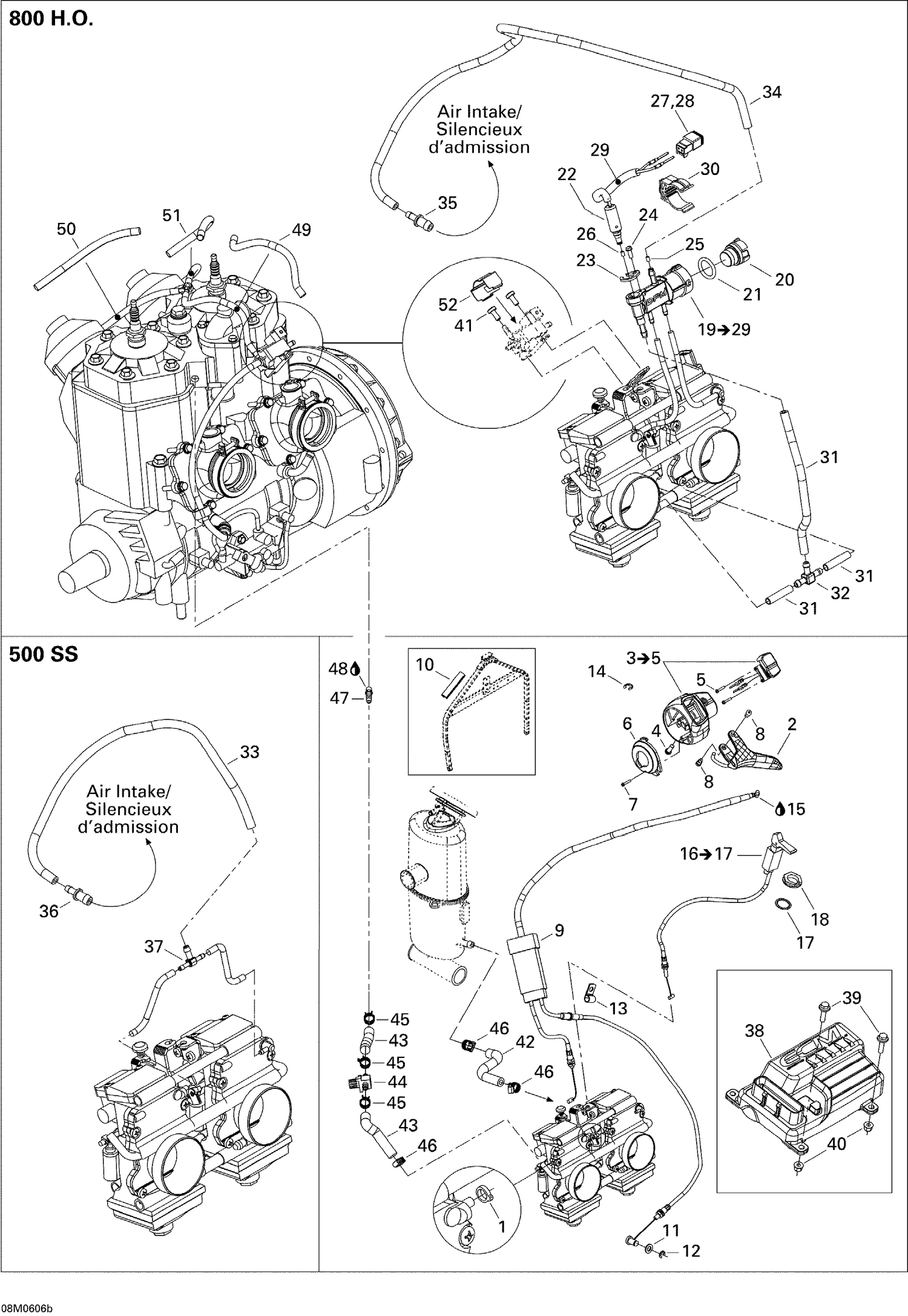

| Ref | Part Number | Description |
|---|
| 1 |
293750001 |
Tie Wrap 94 mm |
| 2 |
512060484 |
Throttle Handle Ass'y This part replaces 512059891. |
| 4 |
250000036 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 5 |
250000098 |
PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership |
| 6 |
512059698 |
COVER - Call your local BRP dealership |
| 7 |
250000098 |
PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership |
| 8 |
732601143 |
Flange Screw |
| 9 |
512060085 |
Throttle Cable |
| 10 |
512059750 |
PROTECTOR - Call your local BRP dealership |
| 11 |
234081100 |
Flat Washer 8 mm, Nylon |
| 12 |
414753500 |
Circlip |
| 13 |
414176000 |
Open Clamp |
| 14 |
414274500 |
Circlip |
| 15 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 17 |
394103300 |
Lock Washer, Interior Teeth |
| 18 |
512059094 |
PLASTIC NUT - Call your local BRP dealership |
| 33 |
XXX |
Not Available As Spare Parts |
| 36 |
XXX |
Not Available As Spare Parts |
| 37 |
XXX |
Not Available As Spare Parts |
| 38 |
XXX |
Not Available As Spare Parts |
| 39 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 40 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 42 |
509000171 |
FORMED HOSE - Call your local BRP dealership |
| 43 |
509000093 |
Hose 8 mm |
| 44 |
512059324 |
Valve 5/16” |
| 45 |
414655700 |
Spring Clamp |
| 46 |
293650170 |
Tridon Gear Clamp |
| 47 |
512060196 |
Male Connector 1/8"-27 NPT This part replaces 512059970. |
| 48 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
