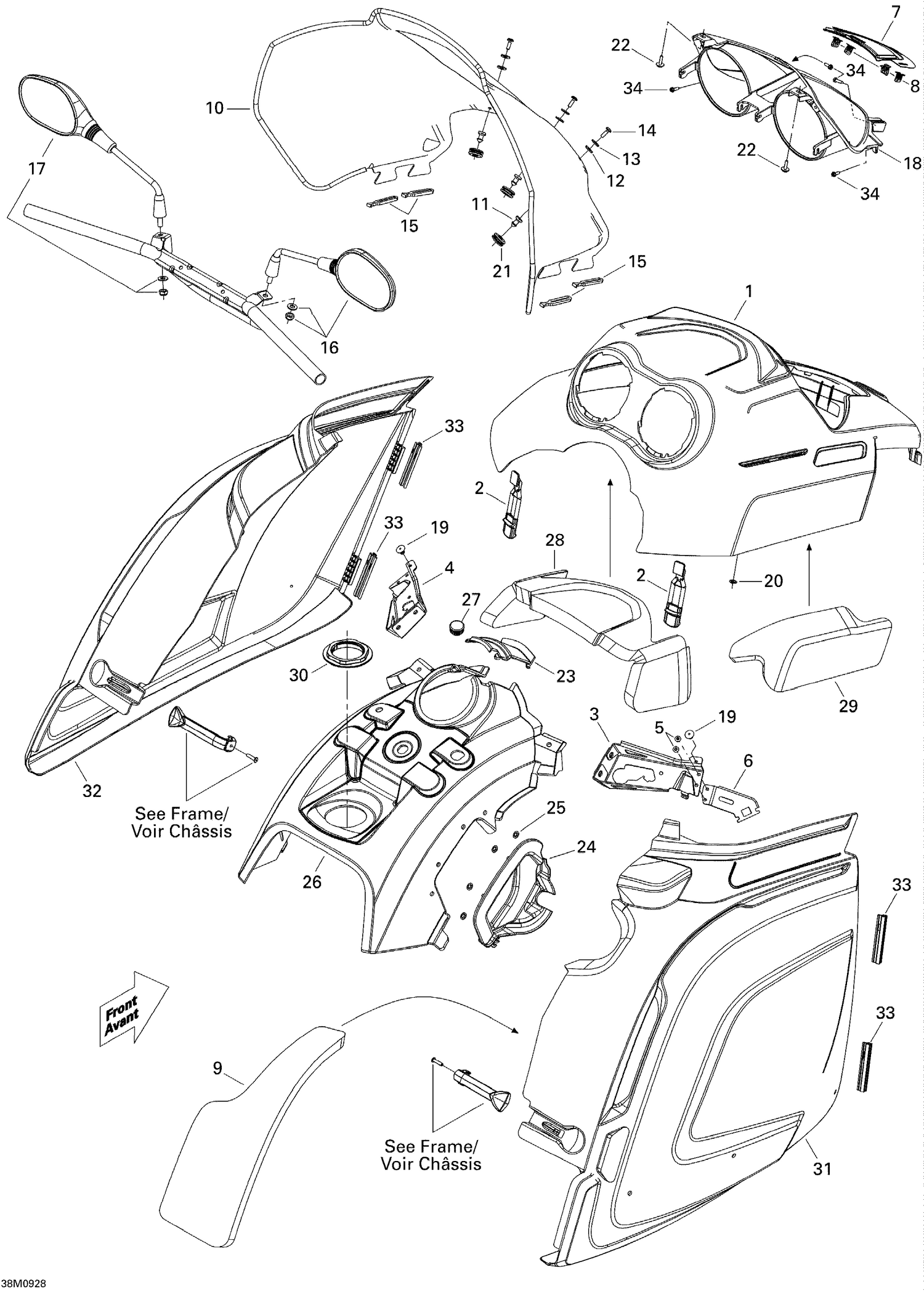

09- Hood
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517303844 | HOOD - Call your local BRP dealership |
| 2 | 517303518 | Latch |
| 3 | 517303662 | RH Bracket |
| 4 | 517303663 | LH Bracket |
| 5 | 390402200 | Pop Rivet 3/16" |
| 6 | 517303517 | BRACKET - Call your local BRP dealership |
| 7 | 517303331 | Center Hood Grille |
| 8 | 517302785 | Edge Clip |
| 9 | 517303457 | RH PANEL FOAM, REAR - Call your local BRP dealership |
| 10 | 517303440 | Windshield, High |
| 11 | 517303439 | Knob |
| 12 | 250200024 | Rubber Washer 5 mm |
| 13 | 250200025 | Washer M5 |
| 14 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 15 | 570023800 | Windshield Latch |
| 16 | 517303629 | RH MIRROR ASS'Y - Call your local BRP dealership |
| 17 | 517303630 | LH MIRROR ASS'Y - Call your local BRP dealership |
| 18 | 517303692 | Moulding |
| 19 | 293150103 | Pop Rivet 3/16" |
| 20 | 732610072 | Push Nut |
| 21 | 517307161 | Grommet This part replaces 517302841. |
| 22 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 23 | 517303458 | CONSOLE CAP - Call your local BRP dealership |
| 24 | 517303589 | RH CONSOLE - Call your local BRP dealership |
| 25 | 732610072 | Push Nut |
| 26 | 517303641 | CENTER CONSOLE - Call your local BRP dealership |
| 27 | 706200474 | CAP - Call your local BRP dealership |
| 28 | 517303664 | Hood Foam |
| 29 | 517303486 | RH Hood Foam |
| 30 | 517302575 | CONSOLE NUT - Call your local BRP dealership |
| 31 | 517303644 | RH Panel |
| 32 | 517303633 | LH PANEL - Call your local BRP dealership |
| 33 | 517302823 | Hinge Lock |
