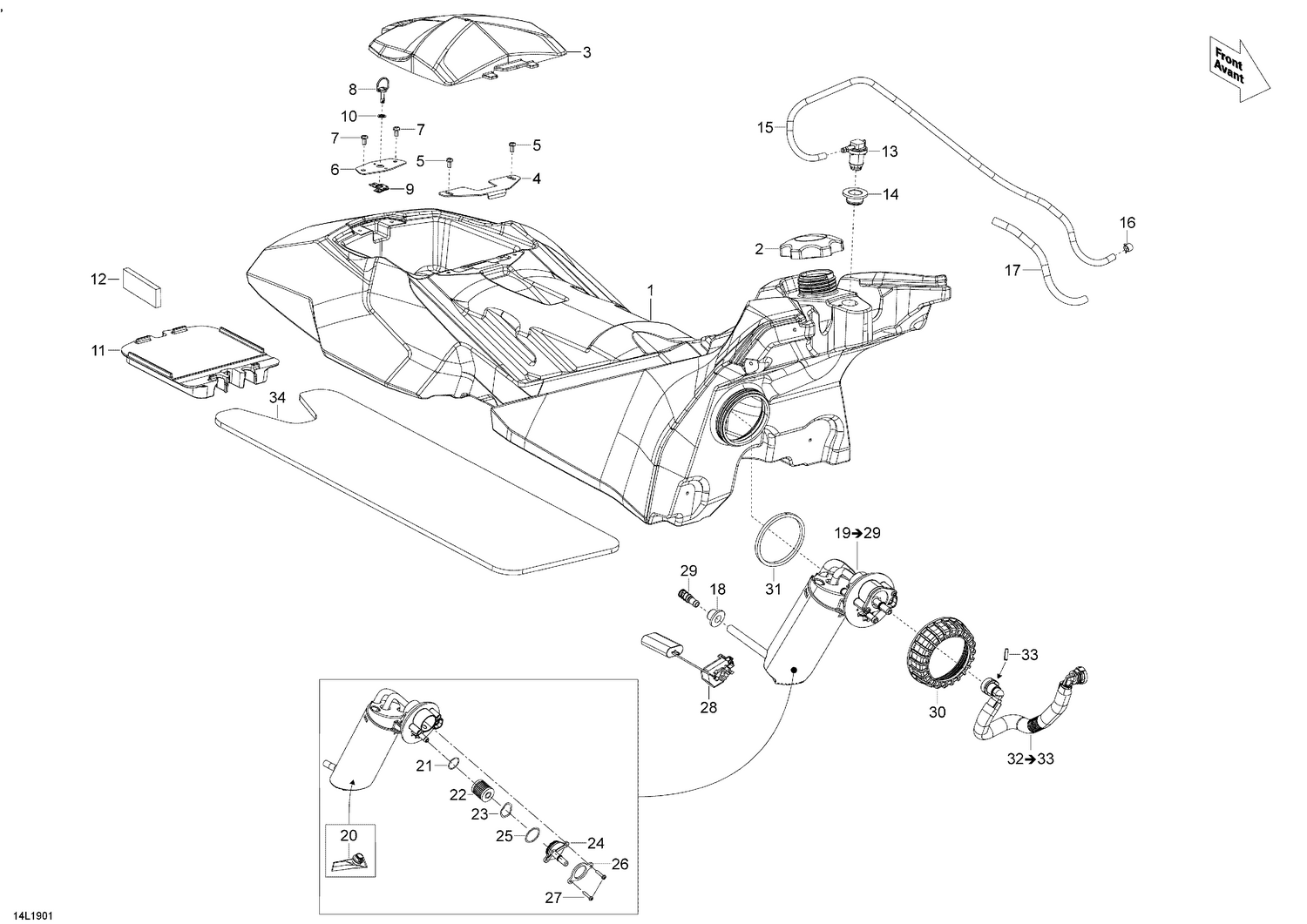

02- Fuel XTRIM - 600 ACE
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033836 | Fuel Tank |
| 2 | 513033723 | Fuel Tank Cap 95 Octane |
| 3 | 513033705 | Battery Cover |
| 4 | 513033894 | Lock Plate |
| 5 | 205951046 | Socket Head Screw M5 X 10 |
| 6 | 513033731 | Lock Plate |
| 7 | 205951046 | Socket Head Screw M5 X 10 |
| 8 | 513033735 | QUARTER-TURN FASTENERS |
| 9 | 513033736 | QUARTER-TURN FASTENERS PLATE |
| 10 | 732610072 | Push Nut |
| 11 | 513033732 | Fuel Tank Support |
| 12 | 510006023 | Foam |
| 13 | 513033842 | Check Valve |
| 14 | 513033596 | Grommet |
| 15 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 16 | 414554800 | Jousikiristin |
| 17 | 504153468 | Protector Tube 9.53mm - 400mm |
| 18 | 293300184 | Grommet |
| 20 | 415129451 | Fuel filter (in tank, fuel pump) |
| 21 | 415129511 | O-Ring |
| 22 | 415129510 | Fuel Filter |
| 23 | 415129512 | Wave Washer |
| 24 | 415129685 | Cover |
| 25 | 415129509 | O-Ring |
| 26 | 415129569 | FUEL PUMP RING - Call your local BRP dealership |
| 27 | 415129513 | Screw |
| 28 | 415130108 | Fuel Level Sensor |
| 29 | 414872100 | Fuel filter (in tank, fuel line) |
| 30 | 513033040 | Kierrekansi, pa-pumpulle |
| 31 | 513033707 | Gasket |
| 33 | 513033135 | Locking Clip |
