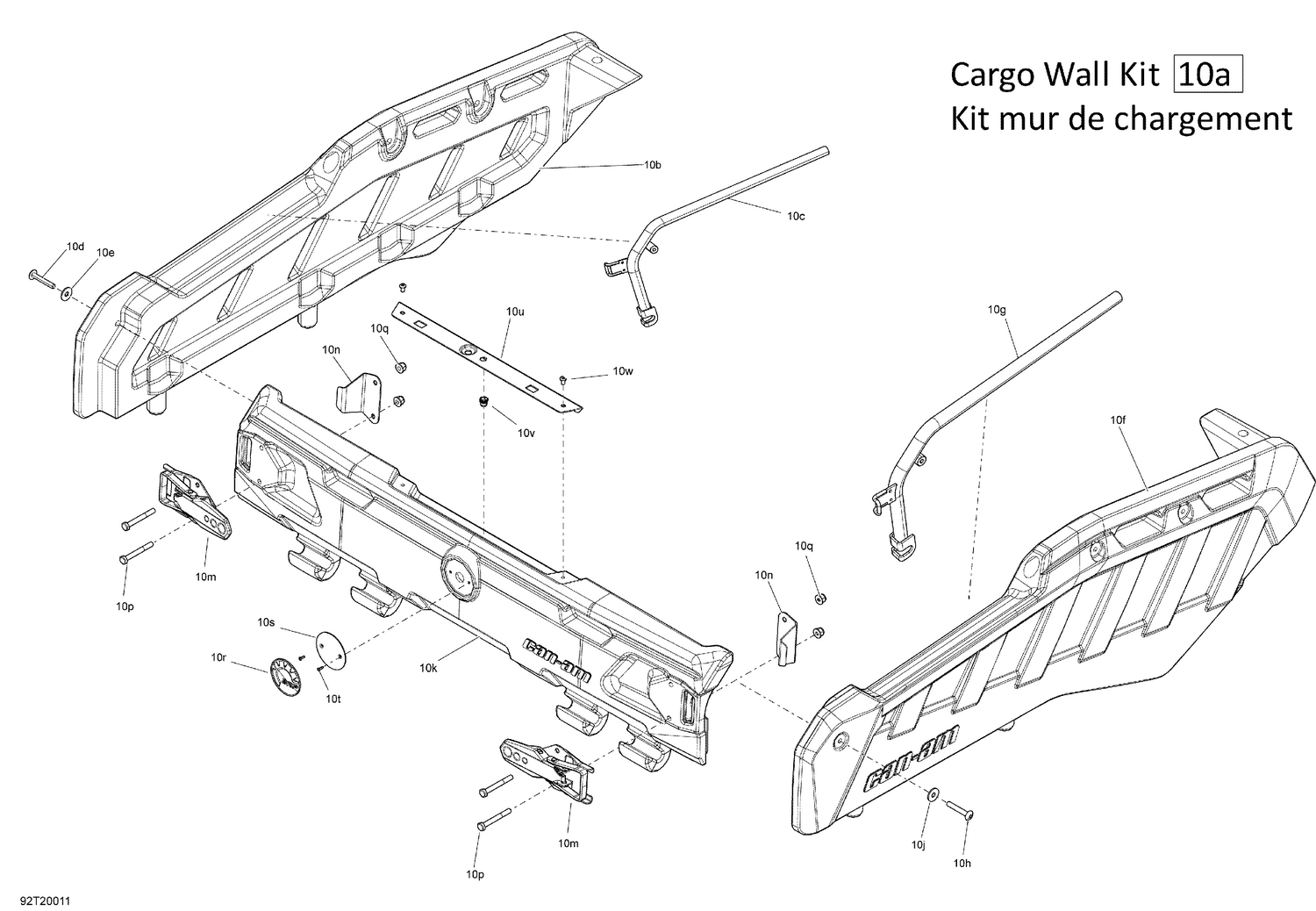

09- Cargo - Kit Cargo Wall
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715005153 | Cargo Wall Kit |
| 10b | 708303727 | Black, LH Side Panel This part replaces 708302078. |
| 10c | 708302800 | LH Side Railing |
| 10d | 250000761 | Torx Truss Screw M8 X 50 |
| 10e | 234082670 | Stainless Steel Flat Washer |
| 10f | 708303728 | Black, RH Side Panel This part replaces 708302079. |
| 10g | 708302799 | RH Side Railing |
| 10h | 250000761 | Torx Truss Screw M8 X 50 |
| 10j | 234082670 | Stainless Steel Flat Washer |
| 10k | 708302080 | Black, Tailgate |
| 10m | 511001014 | Latch Ass'y |
| 10n | 708301005 | Latch Fixing Plate |
| 10p | 207086544 | Hex. Screw M8 x 65 |
| 10q | 233281414 | Hex. Flange Elastic Nut M8 |
| 10r | 516008739 | BRP Logo 68mm |
| 10s | 708301177 | Logo Base |
| 10t | 250000698 | Countersunk Head Screw K30 X 10 |
| 10u | 708301184 | Lock List |
| 10v | 605636003 | Clinch Nut M6 Hexsert |
