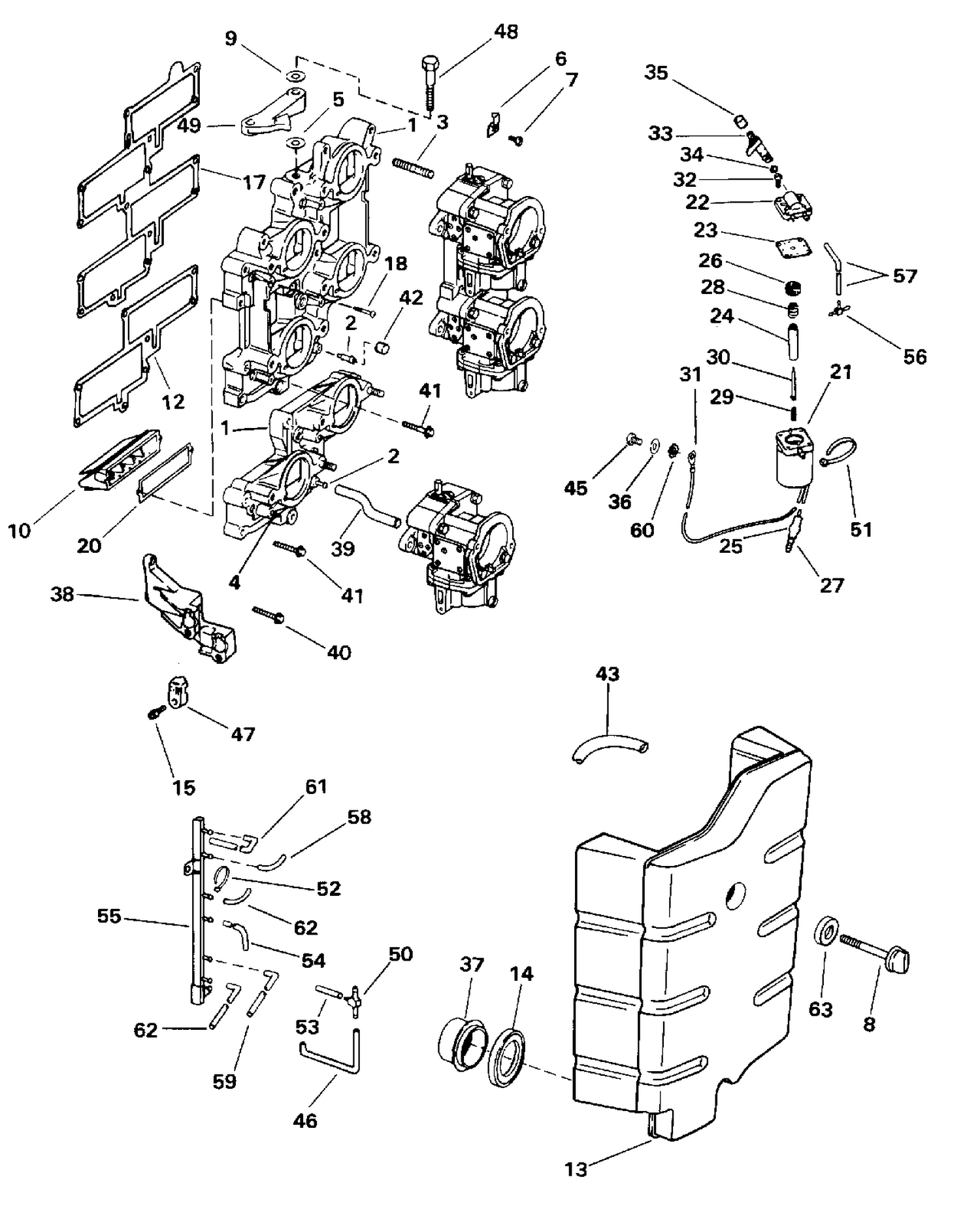

INTAKE MANIFOLD

INTAKE MANIFOLD

Parts (33)

RefPart NumberDescription
1 0437338 INTAKE MANIFOLD ASSY., Lower
1 0437340 INTAKE MANIFOLD ASSY.
6 0343985 POINTER, Timing This part replaces 0341513.
7 0310379 SCREW
8 0439922 FASTENER, Air silencer This part replaces 0436547.
9 0127386 RONDELLE This part replaces 0341381.
10 0397336 LEAF PLATE ASSY.
12 0341476 GASKET, Intake, lowe - Z
13 0439767 AIR SILENCER & SEAL This part replaces 0436998.
17 0328622 GASKET, Manifold to crankcase
18 0332265 SCREW, Cover to base, long
20 0332266 GASKET, Leaf plate
21 5007355 Kit Ay This part replaces 0437234.
38 5007027 Kit Ay This part replaces 0341898.
39 0344783 HOSE, Air silencer drain This part replaces 0340716.
41 0307471 SCREW
42 0322892 CAP, Adapter elbow
43 HOSE, Air silencer to crankcase, 23 in. (584m )
46 0339335 HOSE, Fuel tee to manifold
47 0329271 CLAMP, Trunnion cable
48 0347338 SCREW, Cam to C/C This part replaces 0332353.
49 0339440 THROTTLE CAM
50 0338896 RACCORD, T flexible d'eau
52 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
53 0331674 HOSE, Carb. to primer
54 0338961 HOSE, Manifold to #5 carb.
55 0435732 FUEL MANIFOLD
56 0325569 T, amorçage
57 HOSE, Primer
58 0339332 HOSE, Manifold to #1 carb.
59 0339334 HOSE, Manifold to #4 carb.
61 0331674 HOSE, Carb. to primer
62 0339333 HOSE, Manifold to #3 & #6 carbs.
