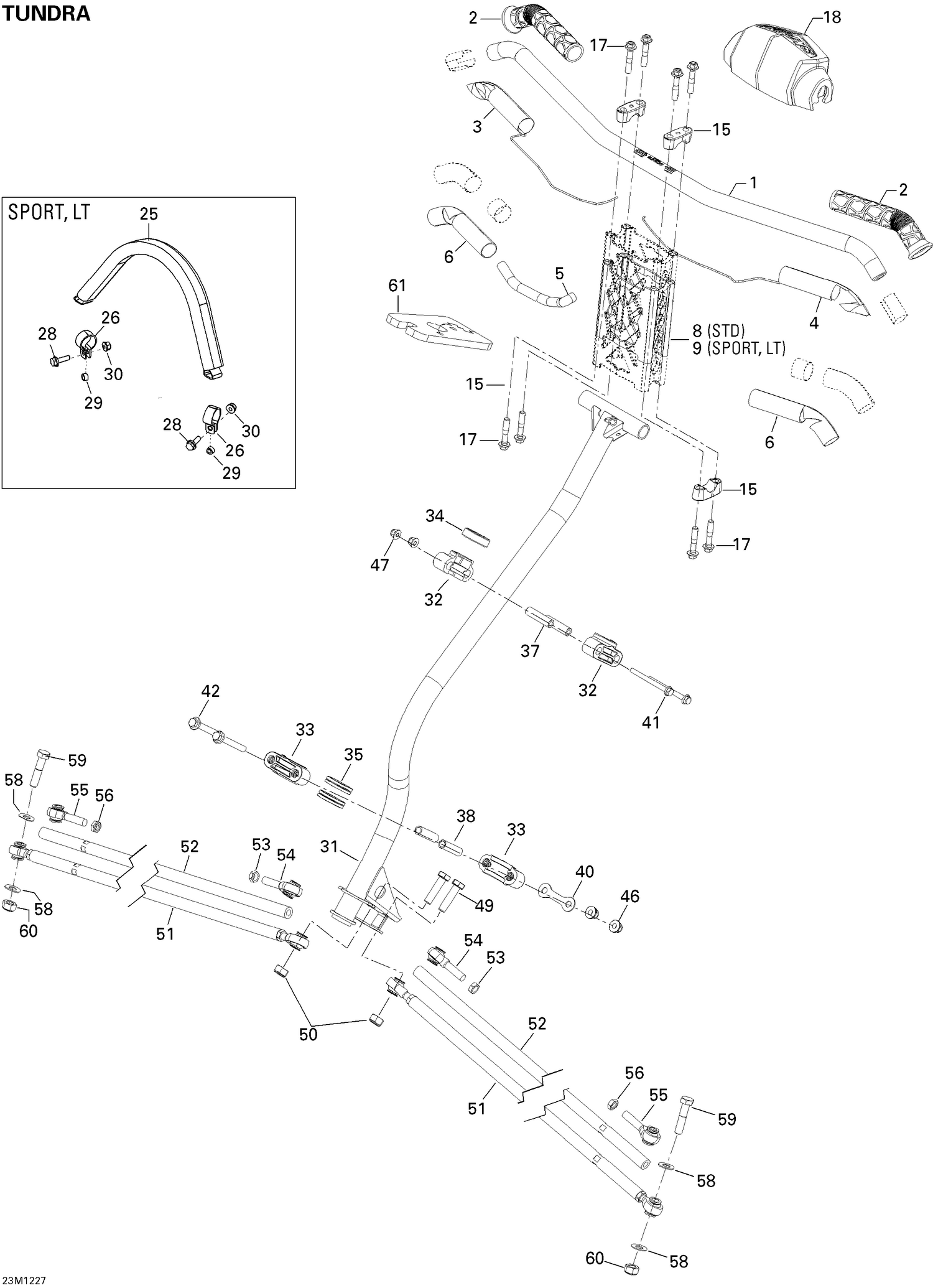

07- Steering — Parts Catalog

Ref	Part Number	Description
1	506152710	BLACK HANDLE BAR - Call your local BRP dealership This part replaces 506152362.
2	506152486	Grip This part replaces 506152226.
3	506152484	Heating Element 20W
4	506152516	Heating Element 20W
5	219704427	LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
6	506152360	Insulant
15	506152751	Steering Support This part replaces 506152395.
17	250000352	Hex. Flange Screw M8 X 40
18	506152192	Steering Pad
31	506152963	Steering Column This part replaces 506152473.
32	506152508	Upper Half-Housing
33	506152217	Lower Half-Housing
34	506152509	Upper Anti-Vibration Gasket
35	506152518	Lower Vibration Ring
37	506152297	Housing Bushing
38	506152388	Lower Housing Bushing
40	506152389	Stopper Plate
41	207667056	Hex. Flange Screw M6 X 70 This part replaces 207667086.
42	207686534	Hex. Flange Screw M8 x 65
46	233281414	Hex. Flange Elastic Nut M8
47	233261416	Elastic Flange Nut M6 X 1.0
49	207004034	Hex. Screw M10 X 1.5 X 40
50	232500416	Elastic Stop Nut M10
51	Not	Available As Spare Part - Tie-Rod Ass'y
52	506152377	ROD_LINK - Call your local BRP dealership
53	506152081	LH Thread Ball Joint
54	250100016	LH Threaded Hex. Jam Nut M10
55	506152019	RH Threaded Ball Joint
56	732610010	RH Threaded Hex. Jam Nut M10
58	506152194	Washer
59	207004544	Hex. Screw M10 X 45
60	232500416	Elastic Stop Nut M10
