Home / BRP / Can-Am 3-Wheel Vehicles / 2022 / 001 - F3 Series / 020 - F3 LIMITED - Dark Edition - Monolith Black Satin, Europe, 2022 000H8NB00 / GEARCASE

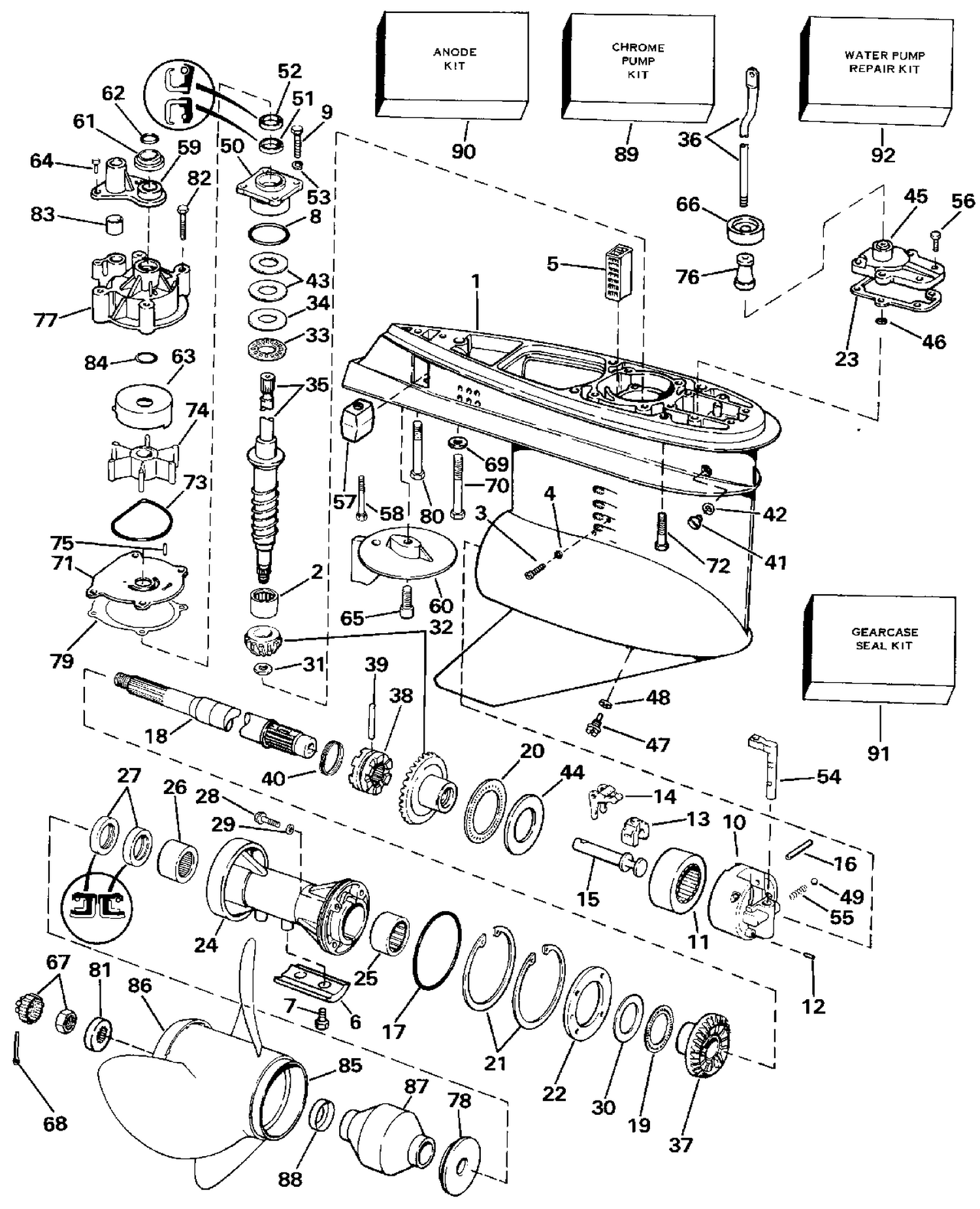

GEARCASE

GEARCASE

Parts (55)

RefPart NumberDescription
1 0393461 GEARCASE & BEARING ASSY.
4 0307853 O RING
17 0305123 O RING This part replaces 0321119.
18 0395209 PROP SHAFT ASSY
21 0321171 RETAINING RING
22 0321174 PLUG, Large
24 0397094 BEARING HOUSING & SEAL ASSY
28 0316563 SCREW
29 0332583 SCREW & SEAL ASSY.
32 0983141 FORWARD GEAR & PINION ASSY This part replaces 0391289.
35 5000775 Kit Ayd/Shaft-20 This part replaces 0394615.
35 5000776 Kit Ay This part replaces 0394616.
36 0329864 SHIFT ROD
36 0329865 SHIFT ROD
37 0910211 BOOT, Battery cable
38 0910198 SHIFTER, Clutch dog
60 0338742 COMPENSATEUR DE DÉRIVE This part replaces 0327810.
63 0435027 CUP & PLATE This part replaces 0330379.
63 0435526 CHROME CUP & PLATE KIT This part replaces 0330384.
65 0313715 SCREW, Cap, hex hd, 7/16-14 x 1
70 0331998 SCREW, Gearcase to housing
71 0435027 CUP & PLATE This part replaces 0330380.
71 0435526 CHROME CUP & PLATE KIT This part replaces 0330383.
72 0331999 SCREW, Gearcase housing
73 0331353 Seal, Impeller Housing Plate.
75 0323950 KEY, Drive shaft to impeller
77 0435485 IMPELLER HOUSING ASSY. This part replaces 0395040.
78 0333592 THRUST BUSHING
80 0330263 SCREW, Mounting, 3/8 in. X 3.50 in.
82 0335221 SCREW, Throttle body to reed plate This part replaces 0328715.
84 0332000 SEAL RING
85 0387995 PROP, 14-1/2 x 24 sstr
85 0387996 PROP, 14-1/2 x 26 sstr
85 0387997 PROP.14-1/2X28SSTR
85 0389019 PROP, 14-1/2 x 23 SST
85 0389923 PROP, 14-1/2 x 21 SST
85 0389924 PROP, 14-1/2 x 19 SST
85 0389925 PROP, 15 x 16 SST
85 0390725 PROP, 14 x 25 SST
85 0390831 PROP, 14-1/2 x 14 SST
85 0391201 PROP, 14-1/2 x 19
85 0391202 PROP, 14-1/2 x 21
85 0391203 BEARING ASSY,Rear,std
85 0391290 PROP, 15 x 17 SST
85 0391535 PROP, 15-1/2 x 15
85 0391536 PROP, 15-1/2 x 13
85 0391863 PROPELLER, 14 1/2 X 27 OMC SRX
85 0391864 PROPELLER, 14 1/2 x 29 OMC SRX
85 0765187 PROPELLER, WDEX Models This part replaces 0391200.
89 0435526 CHROME CUP & PLATE KIT This part replaces 0395059.
90 0392160 ANODE KIT
91 5006373 GEARCASE SEAL KIT This part replaces 0396353.
92 5001594 WATER PUMP REPAIR KIT This part replaces 0395060.
0396994 0434419 GEARCASE ASSY., Complete This part replaces 0396994.
0396995 0434420 GEARCASE ASSY., Complete This part replaces 0396995.
