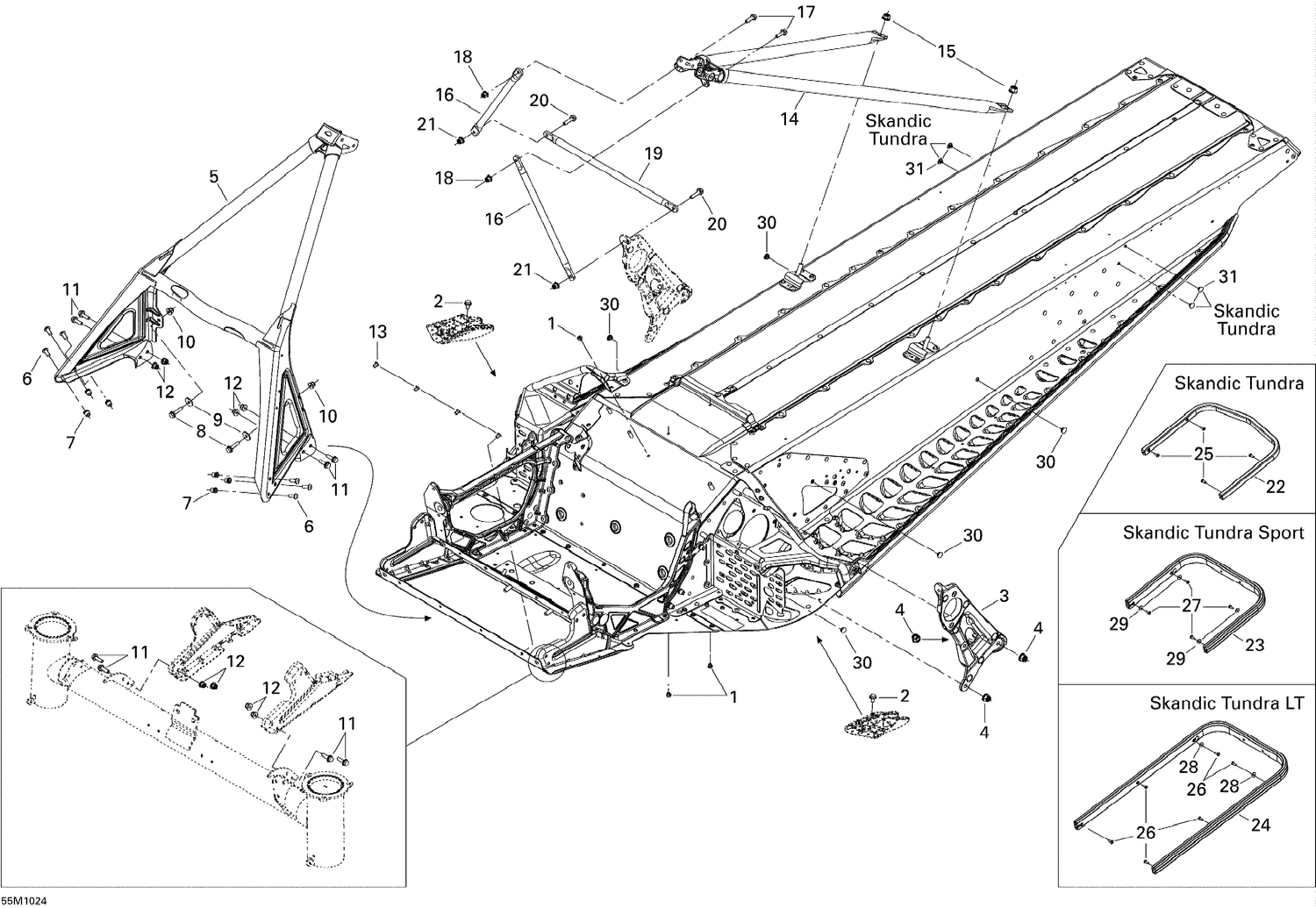

09- Frame and Components
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 390402400 | Pop Rivet 3/16" |
| 2 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 3 | 518328346 | Pulley Support This part replaces 518325934. |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 518326557 | Front Member, S Module This part replaces 518325966. |
| 6 | 207662044 | Hex. Flange Screw M6 X 20 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 207662544 | Hex. Flange Screw M6 X 25 |
| 9 | 224061201 | Flat Washer |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 207662044 | Hex. Flange Screw M6 X 20 |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 390402200 | Pop Rivet 3/16" |
| 14 | 518326559 | Rear Member This part replaces 518325927. |
| 15 | 233281414 | Hex. Flange Elastic Nut M8 |
| 16 | 518325114 | Upper Lateral Column Support |
| 17 | 207662044 | Hex. Flange Screw M6 X 20 |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 19 | 518325115 | Center Column Support |
| 20 | 207662544 | Hex. Flange Screw M6 X 25 |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 30 | 293730041 | Full Moon Dart 8 mm |
