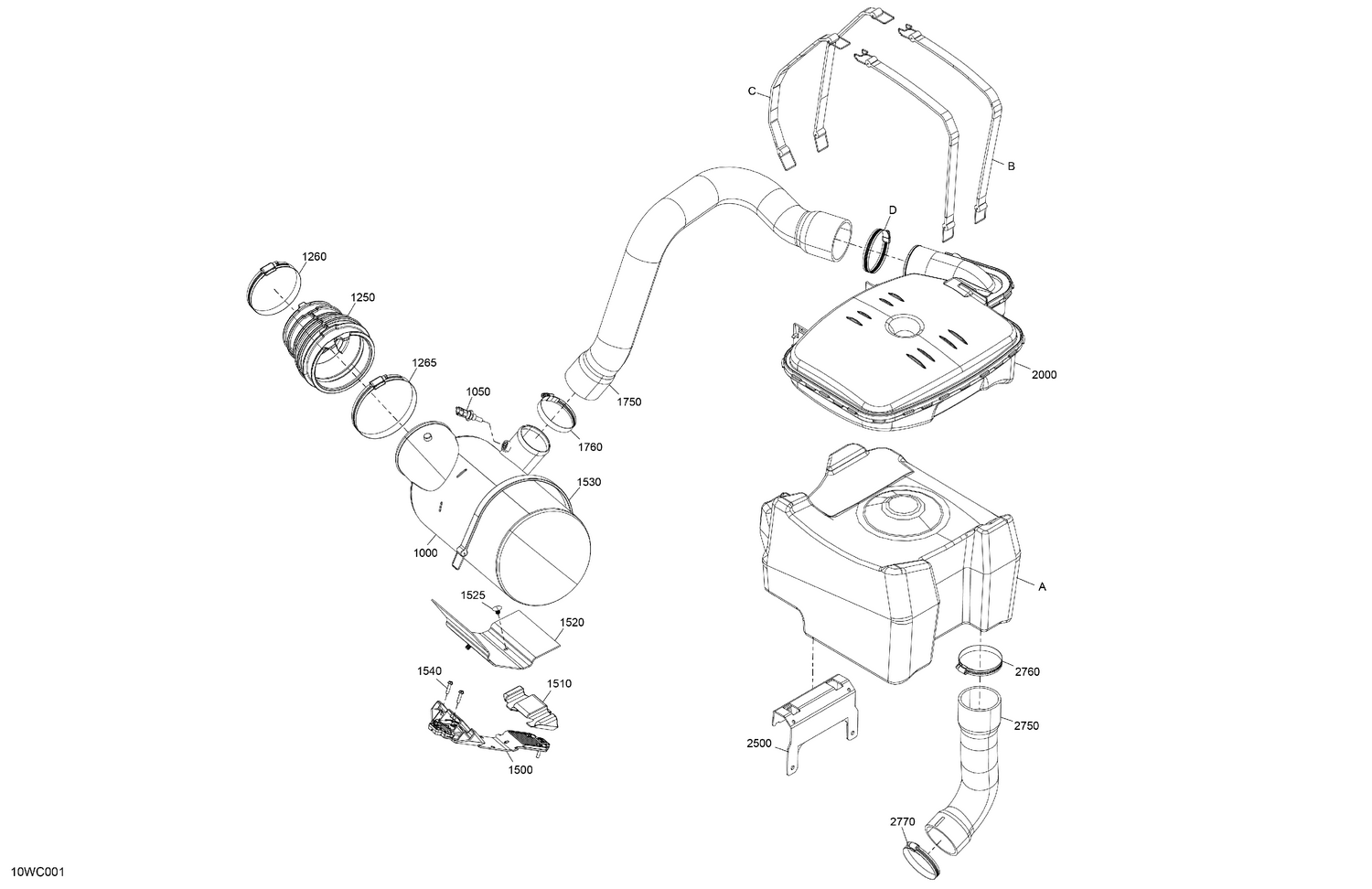

02- MECHANICS - Exhaust - 130HP and 170HP - No Cat
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| A | 274001737 | Foam Support |
| B | 293850101 | Fuel Tank Strap |
| C | 293850093 | Fuel Tank Strap |
| D | 293650244 | Tridon Gear Clamp |
| 1000 | 274001685 | Muffler |
| 1050 | 278002895 | Temperature Sensor |
| 1250 | 274001692 | Boot |
| 1260 | 293650202 | Gear Clamp |
| 1265 | 293650310 | Gear Clamp |
| 1500 | 293450390 | Muffler Support |
| 1510 | 274001721 | Stopper |
| 1520 | 293830209 | Rubber Pad |
| 1525 | 293730113 | Christmas Tree Anchorage |
| 1530 | 293850120 | Strap |
| 1540 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 1750 | 274001733 | Formed Exhaust Hose |
| 1760 | 293650244 | Tridon Gear Clamp |
| 2000 | 274001722 | Resonator |
| 2500 | 292001831 | Bracket |
| 2750 | 274001735 | Formed Exhaust Hose |
| 2760 | 293650244 | Tridon Gear Clamp |
