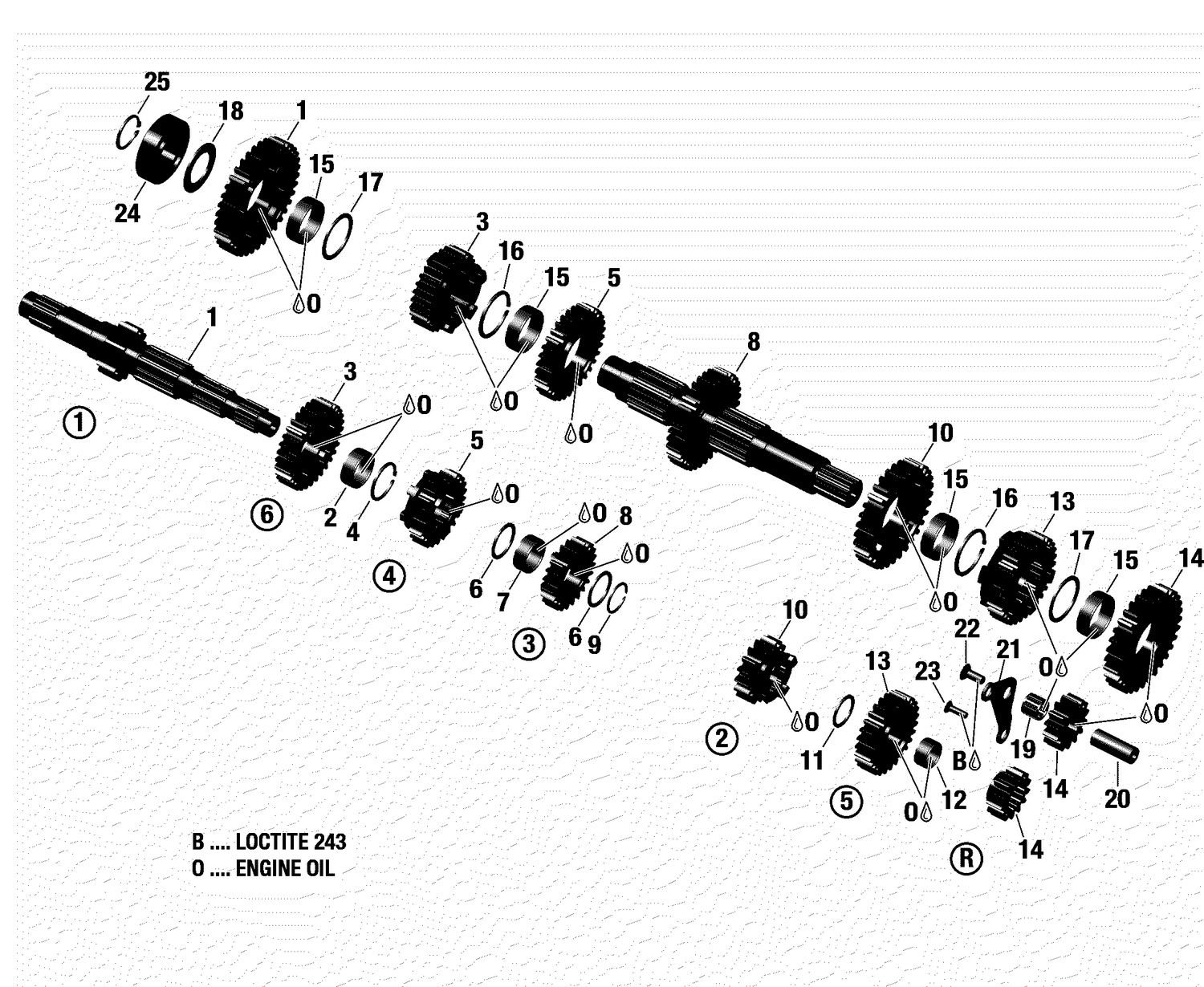

05- Gear Box
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420481150 | Clutch Shaft Kit |
| 2 | 420432131 | Needle Bearing |
| 3 | 420481175 | Gear Set |
| 4 | 420245311 | Retaininig Ring 34 X 2 |
| 5 | 420481165 | Gear Set |
| 6 | 420627294 | Thrust Washer |
| 7 | 420932976 | Needle Bearing |
| 8 | 420481160 | Gear Set |
| 9 | 420245361 | Groove Ring |
| 10 | 420481155 | Gear Set |
| 11 | 420627298 | Thrust Washer |
| 12 | 420232533 | Needle Bearing |
| 13 | 420481170 | Gear Set |
| 14 | 420481140 | Gear Set |
| 15 | 420632821 | Needle Bearing |
| 16 | 420245411 | Retaininig Ring 41.5 X 2 |
| 17 | 420626831 | Thrust Washer |
| 18 | 420626851 | Thrust Washer |
| 19 | 420432034 | Needle Cage |
| 20 | 420249050 | Bolt |
| 21 | 420651620 | Retaining Plate |
| 22 | 420641407 | Flat Head Screw M8 X 20 |
| 23 | 420941436 | Screw M6 X 20 |
| 24 | 420232782 | Ball Bearing |
