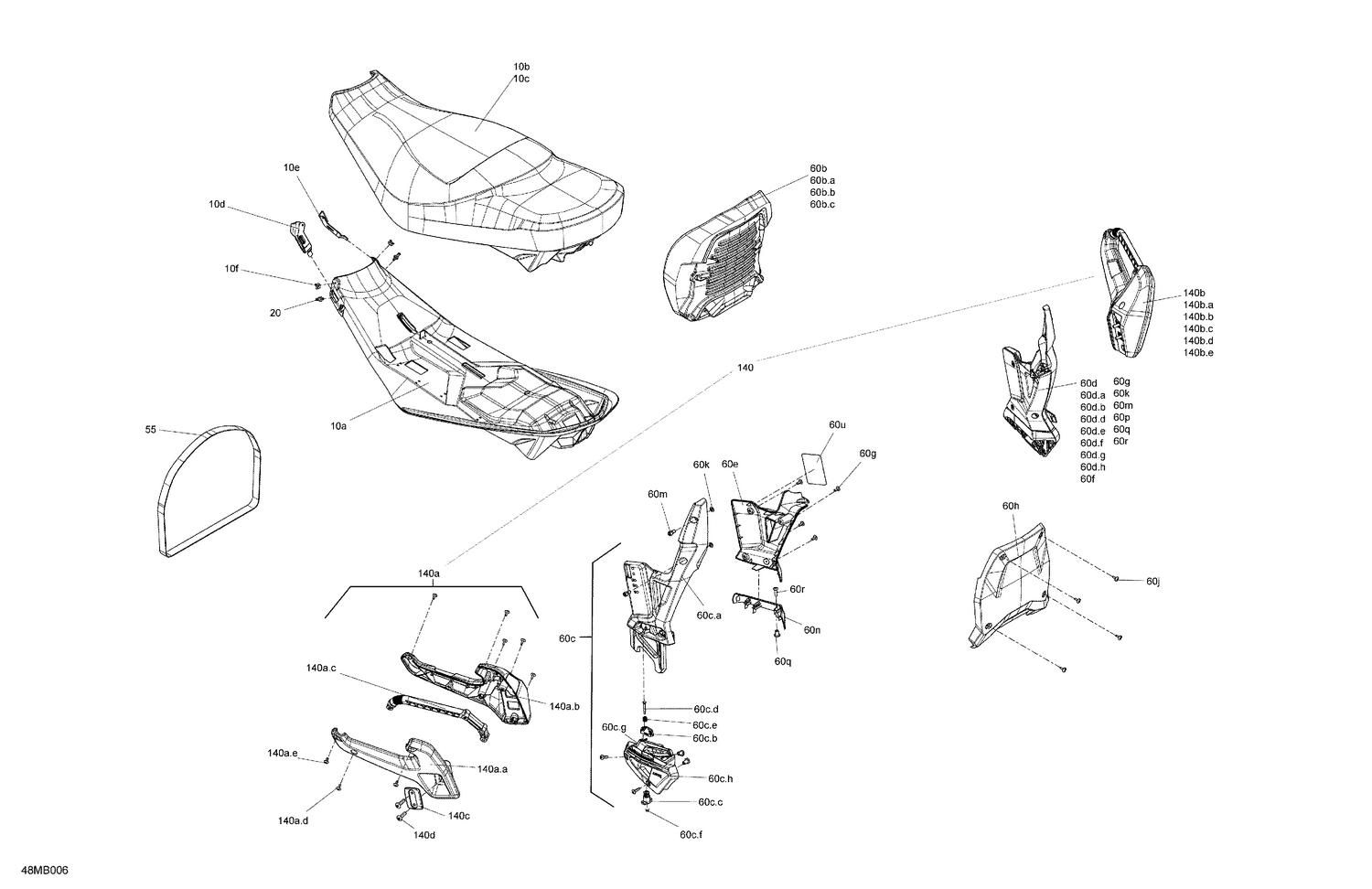

07- Body - Seat
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006556 | Base De Siège 1+1 |
| 10b | 510006336 | Seat Foam |
| 10c | 510006337 | Seat Cover |
| 10d | 510006530 | LH Seat Latch |
| 10e | 510006531 | RH Seat Latch |
| 10f | 293150222 | Pop Rivet 3/16" |
| 20 | 510007411 | Seat Pin This part replaces 510007122. |
| 55 | 510006159 | Courroie De Siège 1+1 |
| 60e | 510006704 | LH Trim |
| 60f | 510006705 | RH Trim |
| 60g | 250000789 | Torx Truss M6X14 |
| 60h | 510006366 | Backrest Trim |
| 60j | 250000889 | Screw M4 X 16 |
| 60k | 234080600 | Flat Washer M8, Stainless |
| 60m | 205081654 | Screw-Socket HD.DIN.912 |
| 60n | 510006169 | LH Base Cover |
| 60p | 510006170 | RH Base Cover |
| 60q | 511000822 | Threaded Insert |
| 60r | 250001000 | Torx-Truss M/S M6 X 25 |
| 60u | 516005612 | Décalque 1+1 |
| 140c | 510006602 | Passenger Handle Trim |
