| Ref | Part Number | Description |
|---|
| 13 |
0436079 |
THERMOSTAT ASSY. |
| 14 |
0436195 |
ENSEMBLE THERMOSTAT |
| 16 |
0301967 |
O RING |
| 18 |
0437694 |
ENSEMBLE MEMBRANE & COUPELLE |
| 21 |
0308458 |
JOINT TORIQUE, tête carter-moteur |
| 23 |
0585023 |
INTERRUPTEUR THERMOSTATIQUE, bâbord |
| 29 |
0344228 |
CYLINDER HEAD This part replaces 0341563. |
| 29 |
0344229 |
CYLINDER HEAD This part replaces 0339167. |
| 30 |
0341961 |
SCREW, Cylinder head, M8 |
| 31 |
0325569 |
T, amorçage |
| 33 |
0437682 |
SPARK PLUG, Champion QL86C This part replaces 0585997. |
| 35 |
0341052 |
SCREW, Filter bracket |
| 36 |
0342246 |
HEAT SHIELD |
| 38 |
HOSE,#1 |
Transfer port check valve to #3 boost port elbow, 4 1/2 in. (114mm) |
| 38 |
HOSE,#2 |
Transfer port check valve to #1 boost port elbow, 6 1/2 in. (165mm) |
| 41 |
HOSE, |
Tee to #2 boost port elbow, 5 1/2 in. 140mm) |
| 42 |
HOSE, |
Lower main elbow to upper main elbow, 1 1/2 in. (292mm) |
| 43 |
0514005 |
SUPPORT, connecteur sectionneur de batterie |
| 46 |
0342496 |
THROTTLE STOP |
| 48 |
0341632 |
GUIDE, Ball detent |
| 49 |
0334338 |
SCREW, Lever to shift rod |
| 50 |
0315164 |
BALL, Shift detent |
| 51 |
0339331 |
GASKET, Powerhead base |
| 53 |
0341902 |
BRACKET |
| 54 |
0341036 |
TANK BRACKET, Lower |
| 56 |
0339793 |
GROMMET, Lower |
| 61 |
0436033 |
OIL TANK ASSY. |
| 71 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 0438066 |
0438066 |

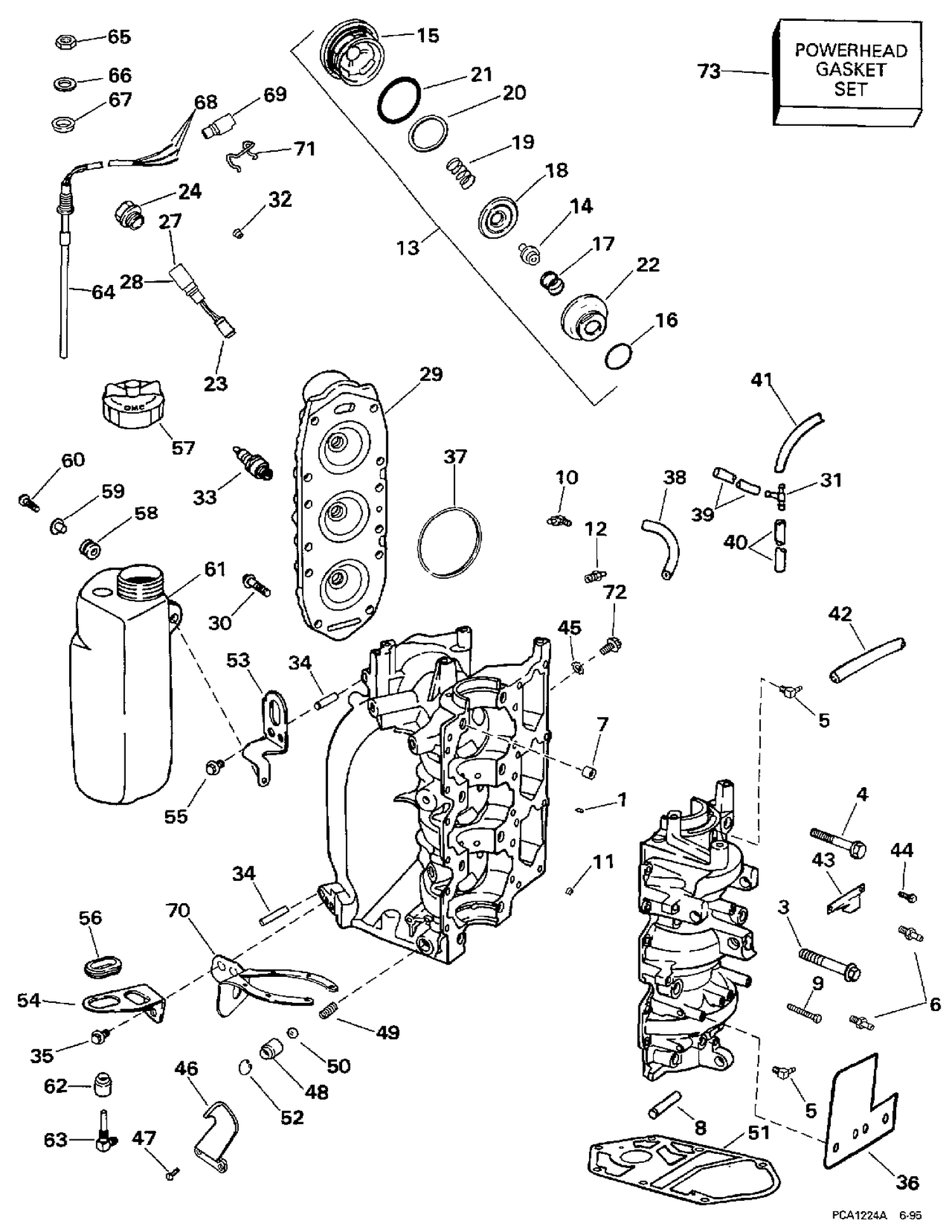

CYLINDER & CRANKCASE ASSY. |
| 0438067 |
0438067 |
CYLINDER & CRANKCASE ASSY. |
