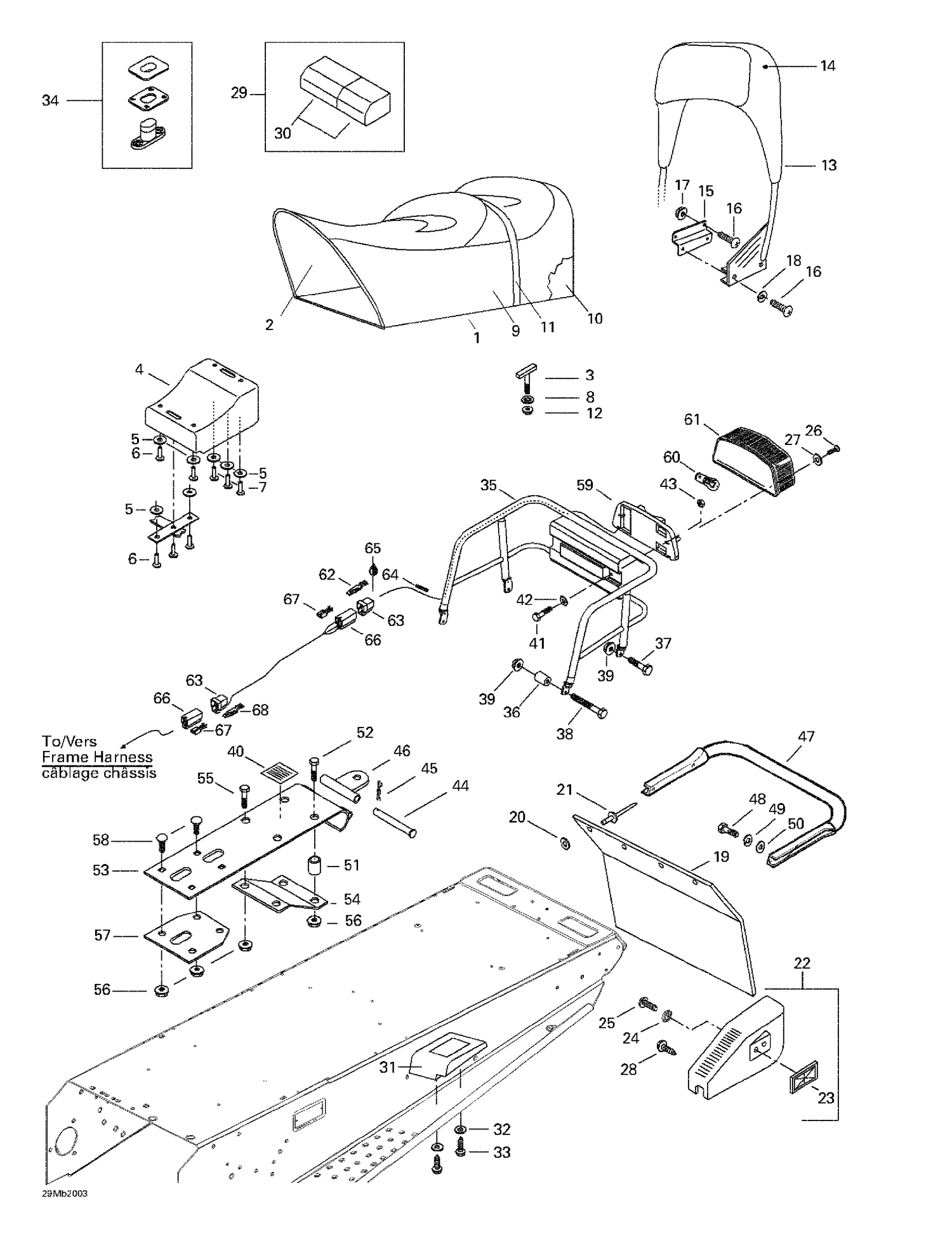

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Seat Ass'y (2 pass.) |
| 2 |
510003597 |
Sub Seat |
| 4 |
572051200 |
Rear Trunk |
| 5 |
234051410 |
Flat Washer M5 |
| 6 |
Not |
Available As Spare Part - Pop Rivet |
| 7 |
Not |
Available As Spare Part - Pop Rivet |
| 8 |
732610072 |
Push Nut |
| 9 |
510003668 |
Seat Cover(2 pass.) |
| 10 |
414924600 |
Foam Seat(2 pass.) |
| 11 |
414943300 |
Belt-Seat |
| 12 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
415104703 |
Backrest Cover |
| 16 |
236282084 |
Hex. Screw M8 X 20 |
| 17 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 18 |
234181601 |
Lock Washer 8 mm, Stainless |
| 19 |
572059700 |
Snow Guard |
| 20 |
517225900 |
Flat Washer |
| 21 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 23 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 24 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 25 |
208651041 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 26 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 27 |
414516400 |
Washer - Call your local BRP dealership |
| 28 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 30 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 31 |
414975300 |
RH Rear Footrest |
| 32 |
224061121 |
Flat Washer |
| 33 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 34 |
414728000 |
SEAT BUCKLE - Call your local BRP dealership |
| 35 |
517273100 |
Rack |
| 36 |
517185600 |
Spacer |
| 37 |
207162044 |
Hex. Screw M6 X 20 |
| 38 |
207064044 |
Hex. Screw M6 X 40 |
| 39 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 40 |
414998500 |
Instruction Label (Hitch) |
| 41 |
207053044 |
Hex. Screw M5 X 30 |
| 42 |
517297900 |
WASHER - Call your local BRP dealership |
| 43 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 44 |
505001700 |
CLEVIS PIN - Call your local BRP dealership |
| 45 |
371800200 |
Cotter Pin |
| 46 |
511000521 |
Hitch Plate Welded This part replaces 517008700. |
| 47 |
517243800 |
Rear Bumper |
| 48 |
207182044 |
Hex. Screw M8 X 20 |
| 49 |
234181401 |
Lock Washer 8 mm |
| 50 |
234081410 |
Flat Washer 8 mm |
| 51 |
517191700 |
SPACER - Call your local BRP dealership |
| 52 |
207064544 |
Hex. Screw M6 X 45 |
| 53 |
511000019 |
Support |
| 54 |
511000022 |
REINFORCEMENT - Call your local BRP dealership |
| 55 |
207161844 |
Hex. Screw M6 X 18 |
| 56 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 57 |
517256100 |
Inner Plate |
| 58 |
207762044 |
Carriage Bolt M6 X 20 |
| 59 |
515175397 |
LAMP HOUSING - Call your local BRP dealership This part replaces 515175404. |
| 60 |
520000758 |
Bulb This part replaces 410504000. |
| 61 |
414513700 |
Lens |
| 62 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 63 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 64 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 65 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 66 |
409204300 |
Female Housing |
| 67 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 414975400 |
LH |
Rear Footrest 414975400 |
| 414975400 |
Rep. |
Pied Arrière GA 414975400 |
| 580642900 |
LH |
Moulding Ass'y (Cargo) 580642900 |
