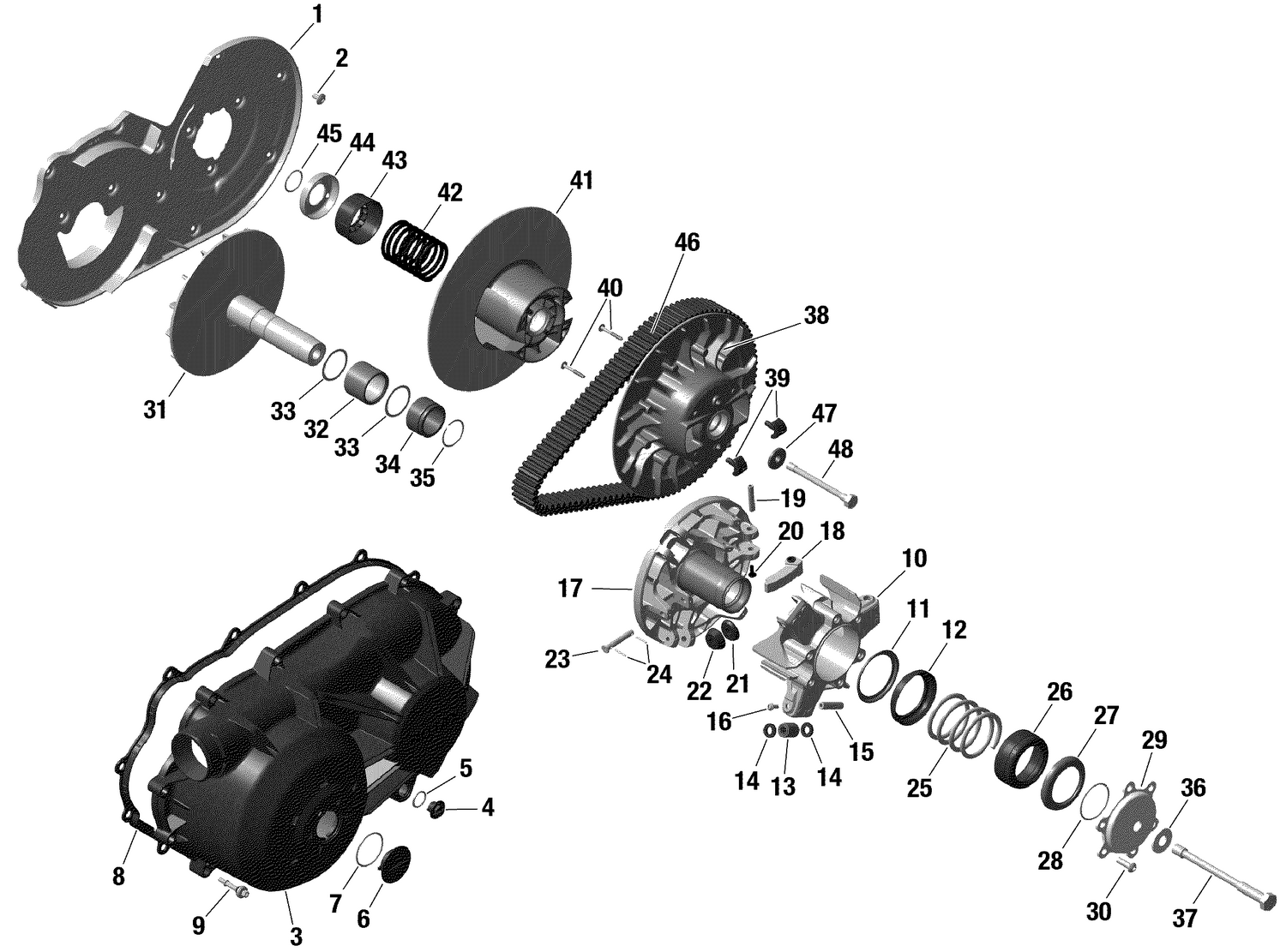

01- ROTAX - CVT - 2
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420212730 | Variator Cover |
| 2 | 420240051 | Torx Screw M6X13 |
| 4a | 420250052 | O-Ring |
| 5 | 420250050 | O-Ring |
| 6 | 420441825 | Bayonet Cap |
| 7 | 420250061 | O-Ring |
| 8 | 420630255 | Gasket |
| 9 | 420440568 | Hex Screw M6 X 30 |
| 11 | 417224910 | Stopper Spring This part replaces 417224001. |
| 12 | 420427801 | Spring Support This part replaces 420427803. |
| 13 | 420629237 | Roller Thrust Set This part replaces 420629231. |
| 14 | 420626235 | Thrust Washer |
| 15 | 417224204 | Axle - 10mm |
| 16 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 17 | 420280816 | Outer Half Ass'y This part replaces 420280813. |
| 18 | 420248727 | Roller Lever Ass'y |
| 19 | 417224694 | Pin Ramp This part replaces 417223631. |
| 20 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 22 | Not | Available As Spare Part - Roller Pulley Ext |
| 23 | 417224510 | Pin |
| 24 | 250400101 | Spring Pin 2.6MM X 20.5MM This part replaces 250400074. |
| 25 | 420638133 | Compression Spring, Drive Pulley |
| 26 | 420427809 | Spring Support This part replaces 420427808. |
| 27 | 420427354 | Seat Spring |
| 28 | 293370116 | Circlip |
| 29 | 420280275 | Governor Cup Torque Flange |
| 30 | 420841085 | Hex Screw M8 X 2 This part replaces 420841083. |
| 31 | 420280811 | Flasque Fixe Ass. |
| 32 | 420832351 | Needle Roller Bearing With Sleeves |
| 33 | 420427220 | Washer |
| 34 | 420660284 | Stop Sleeve |
| 35 | 420845741 | Retaining Ring 35 x 1.5 |
| 36 | 420245690 | Washer |
| 37 | 420841161 | Hexagonal Screw M14X 165 |
| 38 | 420280798 | OUTER HALF PULLEY ASS'Y - Call your local BRP dealership This part replaces 420280796. |
| 39 | 420260344 | Slider Shoe This part replaces 420260343. |
| 40 | 420441835 | Torx Flange Screw M6 X 20 |
| 41 | 420280788 | Sliding Pulley Ass'y This part replaces 420280787. |
| 42 | 420238176 | Compression Spring |
| 43 | 420427321 | Spring Support |
| 44 | 420427331 | Holding Strip |
| 45 | 420245945 | Retaining Ring 32.8 |
| 46 | 422280225 | V-Belt |
| 47 | 420627695 | Thrust Washer |
