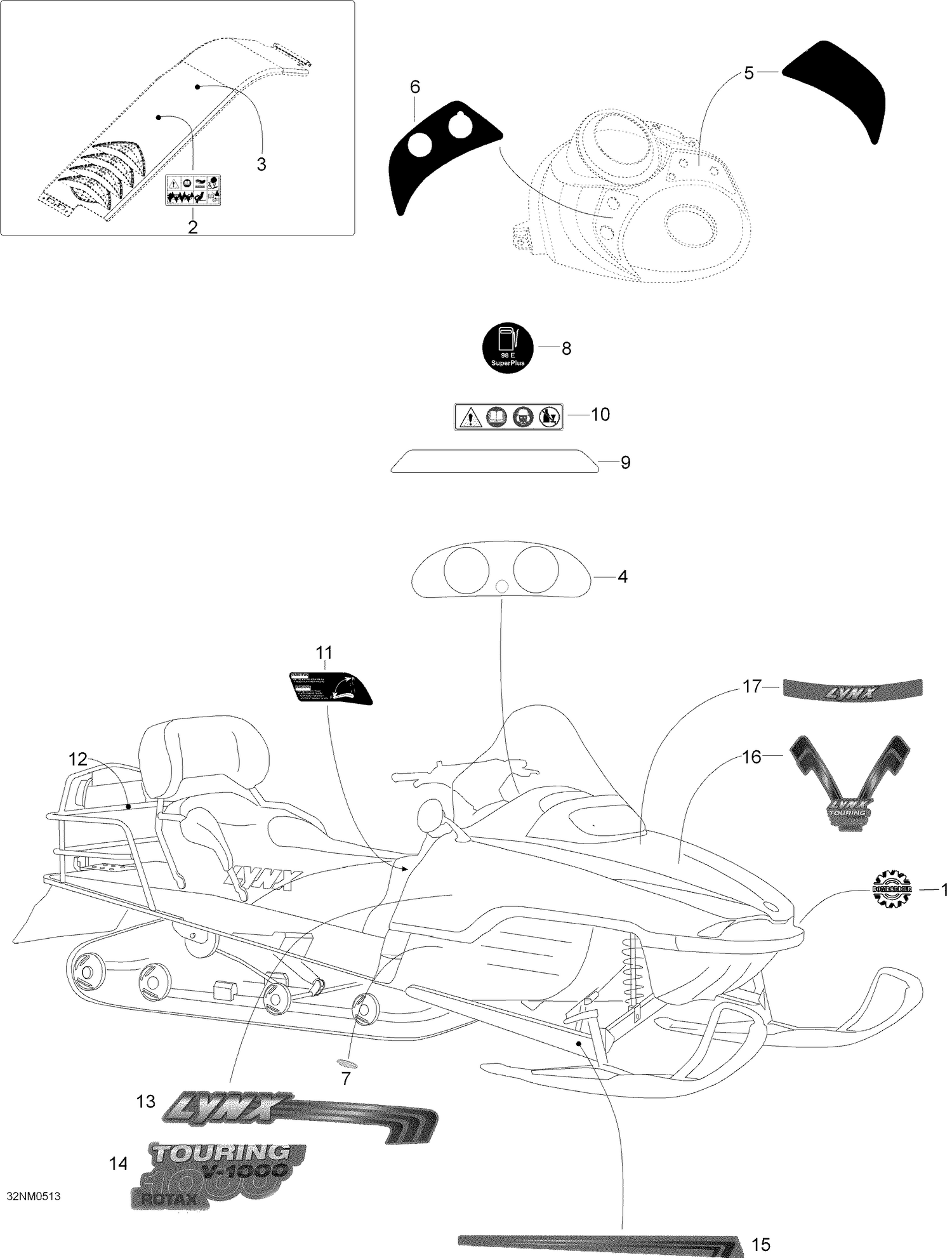

09- Decals
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008738 | Logo 48mm "BRP" This part replaces 516002487. |
| 2 | 5447014 | Pulley decal |
| 3 | 5447012 | Oil check decal |
| 4 | 605248800 | Control panel decal |
| 5 | 605448798 | R.H. console decal |
| 6 | 5446931 | L.H. Console decal |
| 7 | 415064400 | R.H. Reflector |
| 7 | 415064401 | L.H. Reflector |
| 8 | 5447020 | Fuel label |
| 9 | 5346800 | Instruction decal |
| 10 | 5447124 | Warning label |
| 11 | 5446973 | Shifting label |
| 12 | 605448801 | Warning label |
| 13 | 605351011 | R.H. Hood decal, upper |
| 13 | 605351012 | L.H. Hood decal, upper |
| 14 | 605351013 | R.H. lower decal, hood |
| 14 | 605351014 | R.H. lower decal, hood |
| 15 | 605351015 | Decal, swing arm R.H. |
| 15 | 605351016 | Decal, swing arm L.H. |
| 16 | 605351096 | Hood decal, front |
