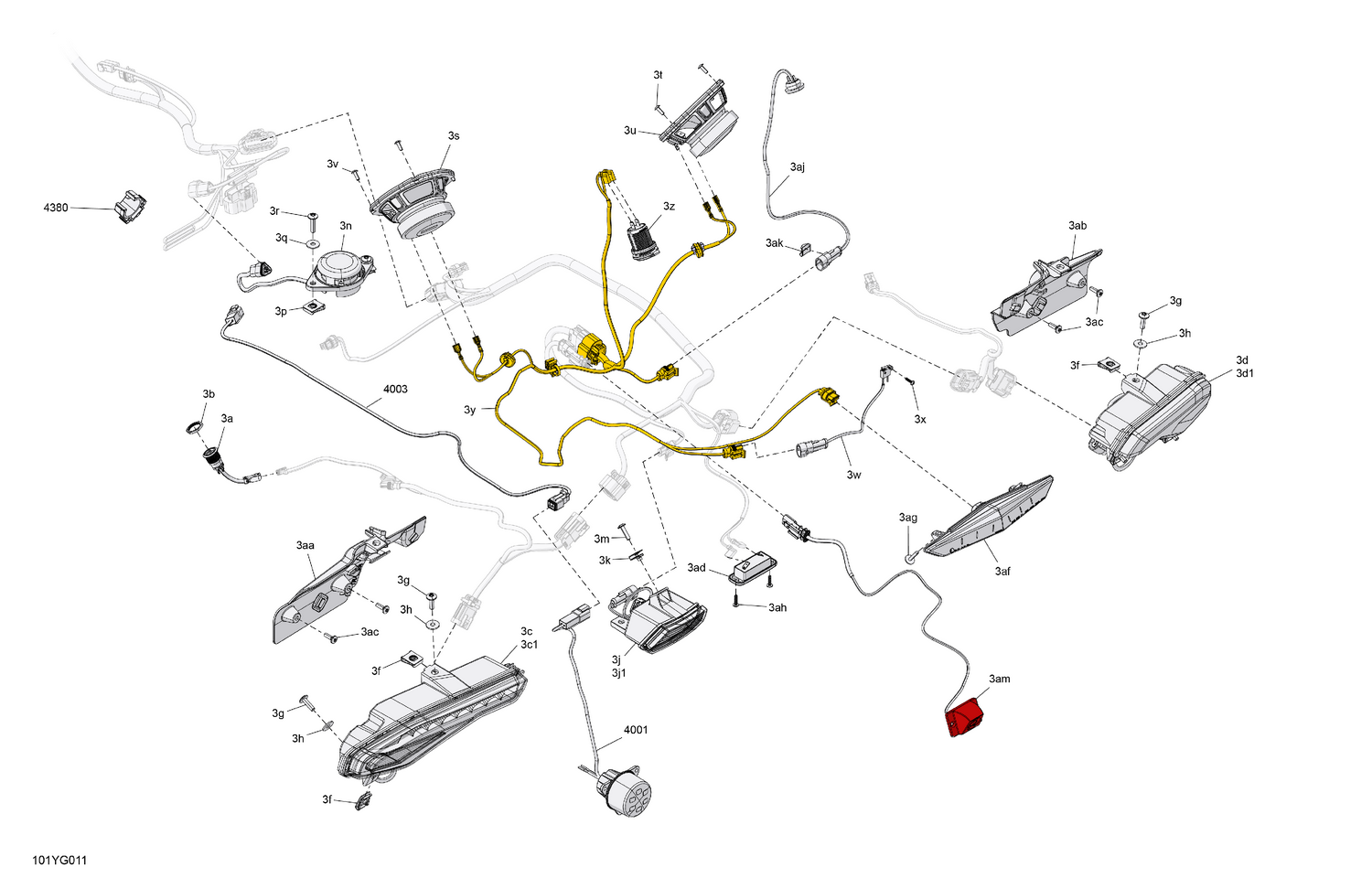

08- Electric - Sub Cargo
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 3a | 710004598 | Switch |
| 3aa | 710004643 | LH Connector Support |
| 3ab | 710004644 | RH Connector Support |
| 3ac | 250000720 | Torx Screw K50 X 16 |
| 3ad | 710005501 | License Light |
| 3af | 520001785 | Non-fonctional Rear Tail-light |
| 3ag | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 3ah | 250001123 | Hex. Flange Screw K40 X 16 |
| 3aj | 710001533 | Trunk Light |
| 3ak | 409210100 | Clip Bracket Connector (edge) |
| 3am | 710010502 | Camera |
| 3b | 710004108 | Nut |
| 3c1 | 219800304 | Flasher Bulb |
| 3d1 | 219800304 | Flasher Bulb |
| 3f | 250100208 | Panel Nut M6 X 1.0 |
| 3g | 250000722 | Torx Screw M6 X 20 |
| 3h | 250200164 | Flat washer M6 |
| 3j1 | 219800322 | Bulb 12V 10W |
| 3k | 250000958 | Panel Nut M5 X 0.8 |
| 3m | 250000715 | Torx Truss Screw M5 X 20 |
| 3n | 710008103 | Passenger Detection Switch |
| 3p | 250100208 | Panel Nut M6 X 1.0 |
| 3q | 234062670 | Stainless Steel Flat Washer |
| 3r | 250000807 | Torx Truss Screw M6 X 25 |
| 3t | 250000577 | Torx Truss Screw K40 X 12 |
| 3v | 250000577 | Torx Truss Screw K40 X 12 |
| 3w | 710005315 | Open Detection |
| 3x | 250000614 | Screw-pt.flange Oval Hd.k30 X 12 |
| 3y | 710008257 | Upper Rear Box Wiring Harness |
| 3z | 219400510 | USB Outlet |
| 4001 | 710007018 | Fog Light Rear |
| 4003 | 710007387 | Wiring Harness Adaptor |
