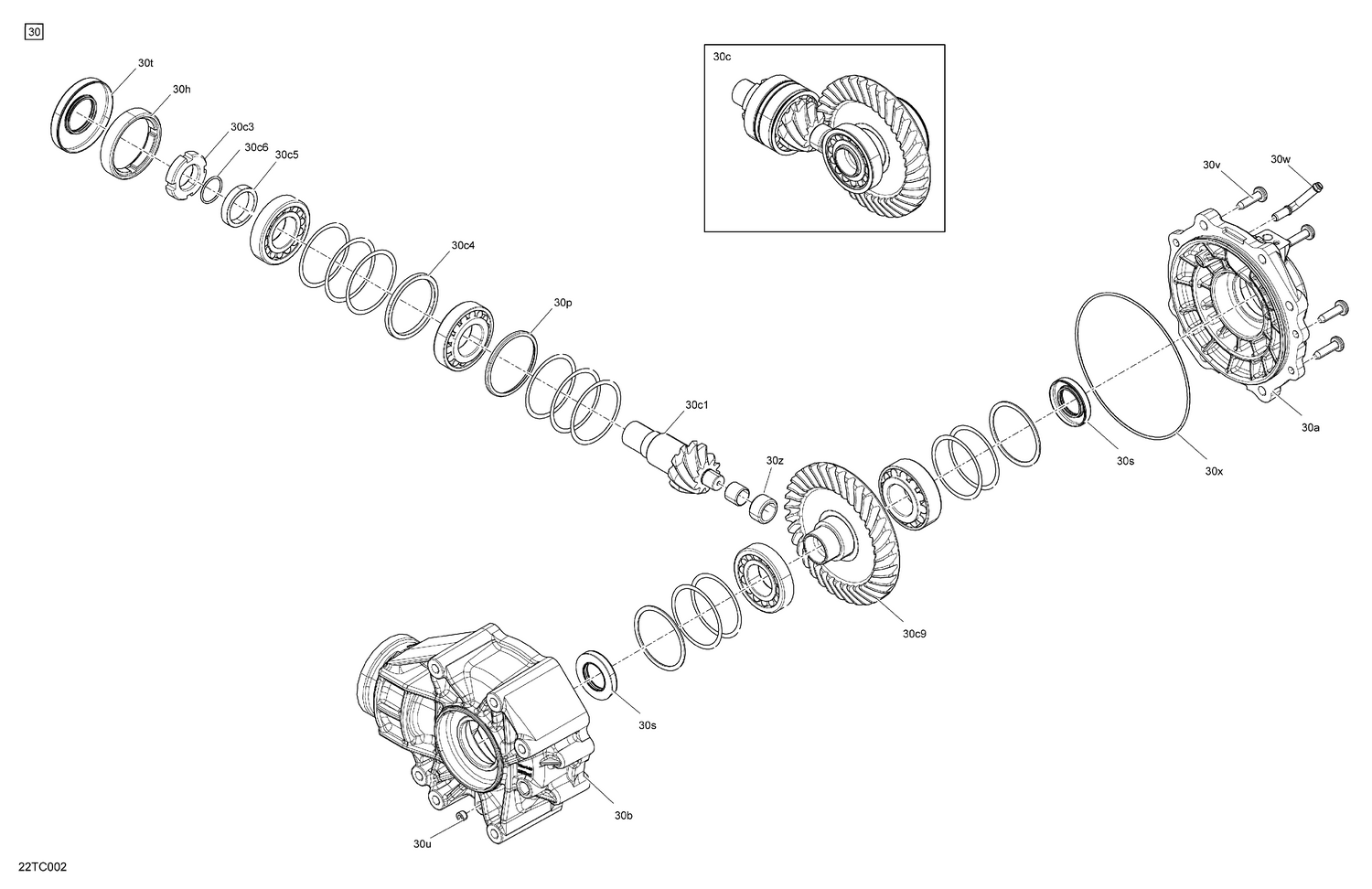

04- Drive - Final Drive Unit
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705502547 | Rear Cover |
| 30b | 705502180 | Rear Pinion Cover |
| 30c1 | 705502091 | Gear 10 Tooth |
| 30c3 | 705501550 | Nut |
| 30c4 | 705501552 | Differential Shim |
| 30c5 | 705501553 | Differential Shim |
| 30c6 | 705501554 | O-Ring |
| 30c9 | 705502092 | Pinion 36 Teeth |
| 30h | 705501549 | Nut |
| 30p | 703500835 | Differential Shim Kit |
| 30s | 705501556 | Oil Seal |
| 30t | 705501557 | Oil Seal |
| 30u | 705501724 | Plug Drain |
| 30v | 705502063 | Screw |
| 30w | 705501584 | Breather Tube |
| 30x | 705501711 | O-Ring |
