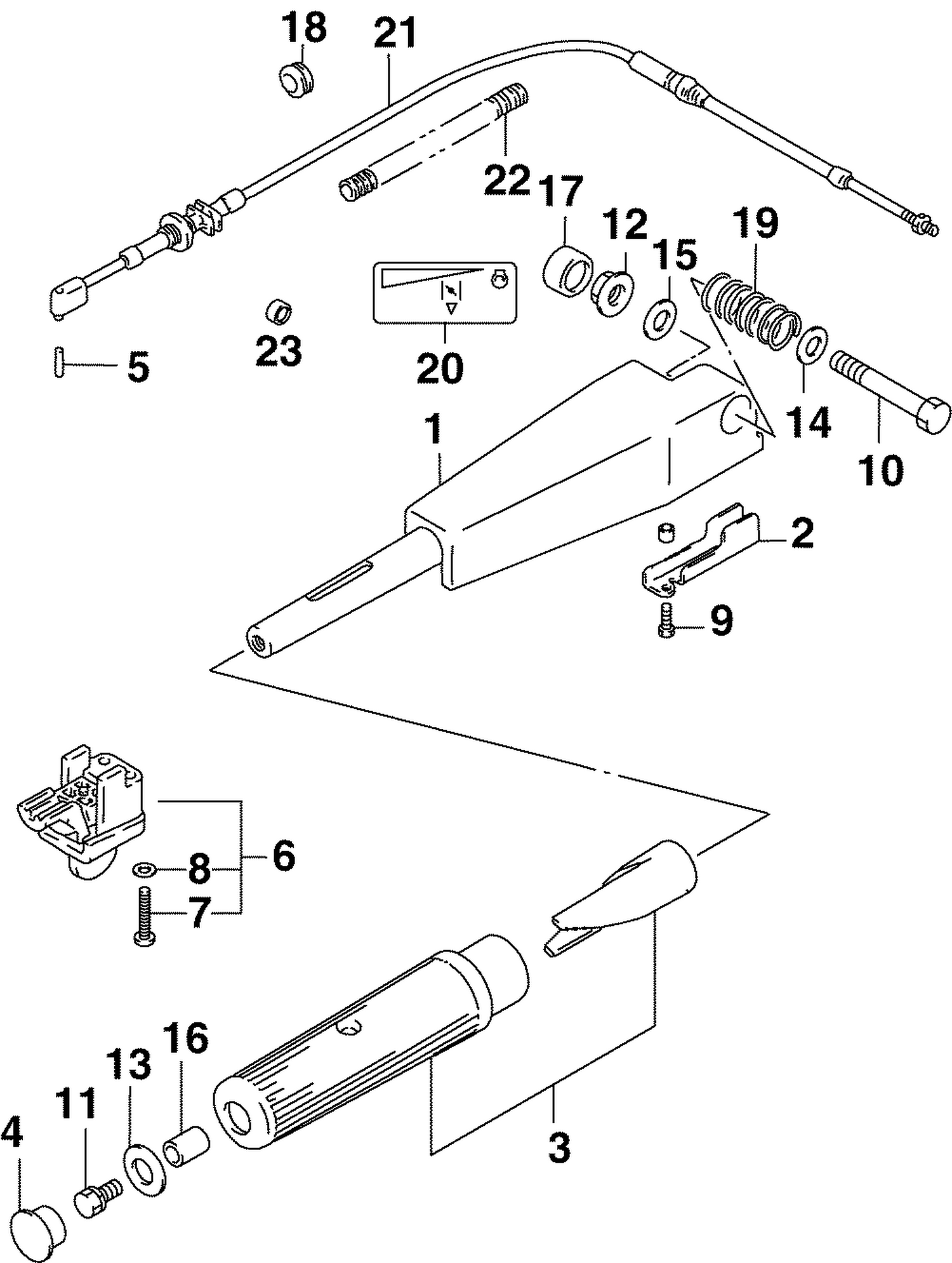

STEERING HANDLE
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5034245 | STOP, TILLER HANDLE |
| 3 | 5033215 | GRIP, HANDLE |
| 4 | 5033216 | CAP |
| 5 | 5033217 | PIN, THROTTLE CABLE |
| 6 | 5033218 | ADJUSTER, HANDLE GRIP |
| 9 | 5030338 | BOLT |
| 10 | 5032762 | BOLT (10X70mm) |
| 11 | 5031217 | BOLT |
| 12 | *5030054 | NUT |
| 13 | 5033287 | WASHER (8.5X23X1.5mm) |
| 14 | *5031610 | WASHER |
| 15 | 5032975 | WASHER (10.5X32X1.5mm) |
| 16 | 5032979 | SPACER |
| 17 | 5030529 | CAP |
| 19 | *5031613 | SPRING |
| 20 | 5032756 | DECAL, ENGINE START |
| 21 | 5033219 | CABLE, THROTTLE |
| 22 | 5033220 | TUBE, THROTTLE CABLE |
