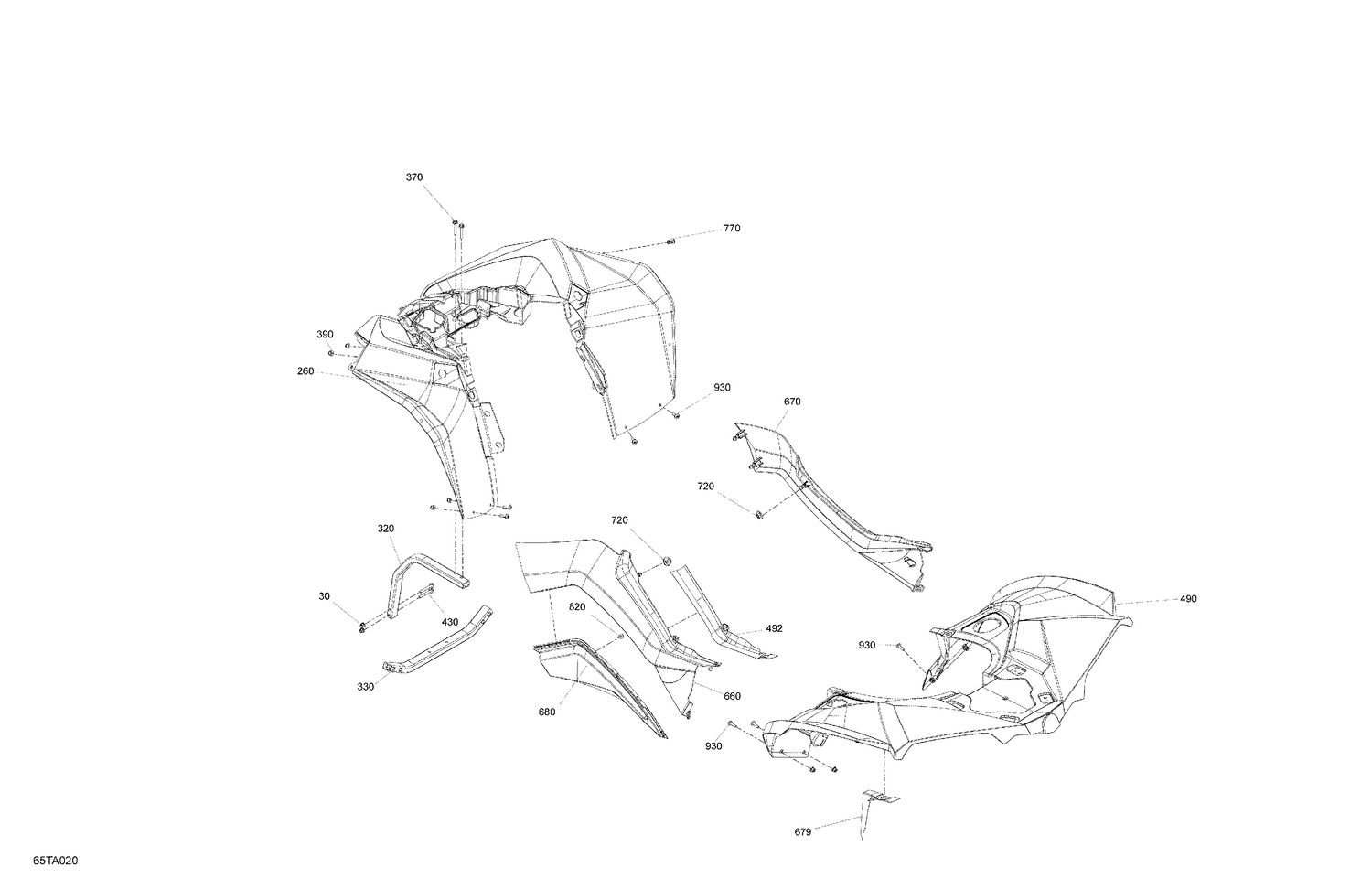

07- Body - Fender Kit
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 260 | 715007504 | Neo Yellow, Front Fender Kit |
| 320 | 705016643 | Front Sectinal Bent Tube This part replaces 705016094. |
| 330 | 705016093 | Bent Sectional Tube |
| 370 | 207663544 | Hex. Flange Screw M6 X 35 |
| 390 | 293450275 | Insert |
| 490 | 715007511 | Timeless Black, Rear Fender Kit |
| 492 | 705010559 | Heat Shield |
| 660 | 705015836 | Neo Yellow, LH Lateral Panel |
| 670 | 705015835 | Neo Yellow, RH Lateral Panel |
| 679 | 705010558 | Heat Shield |
| 680 | 705004988 | Panel Extension |
| 720 | 705003264 | Grommet |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 820 | 293830005 | Rubber Bumper |
