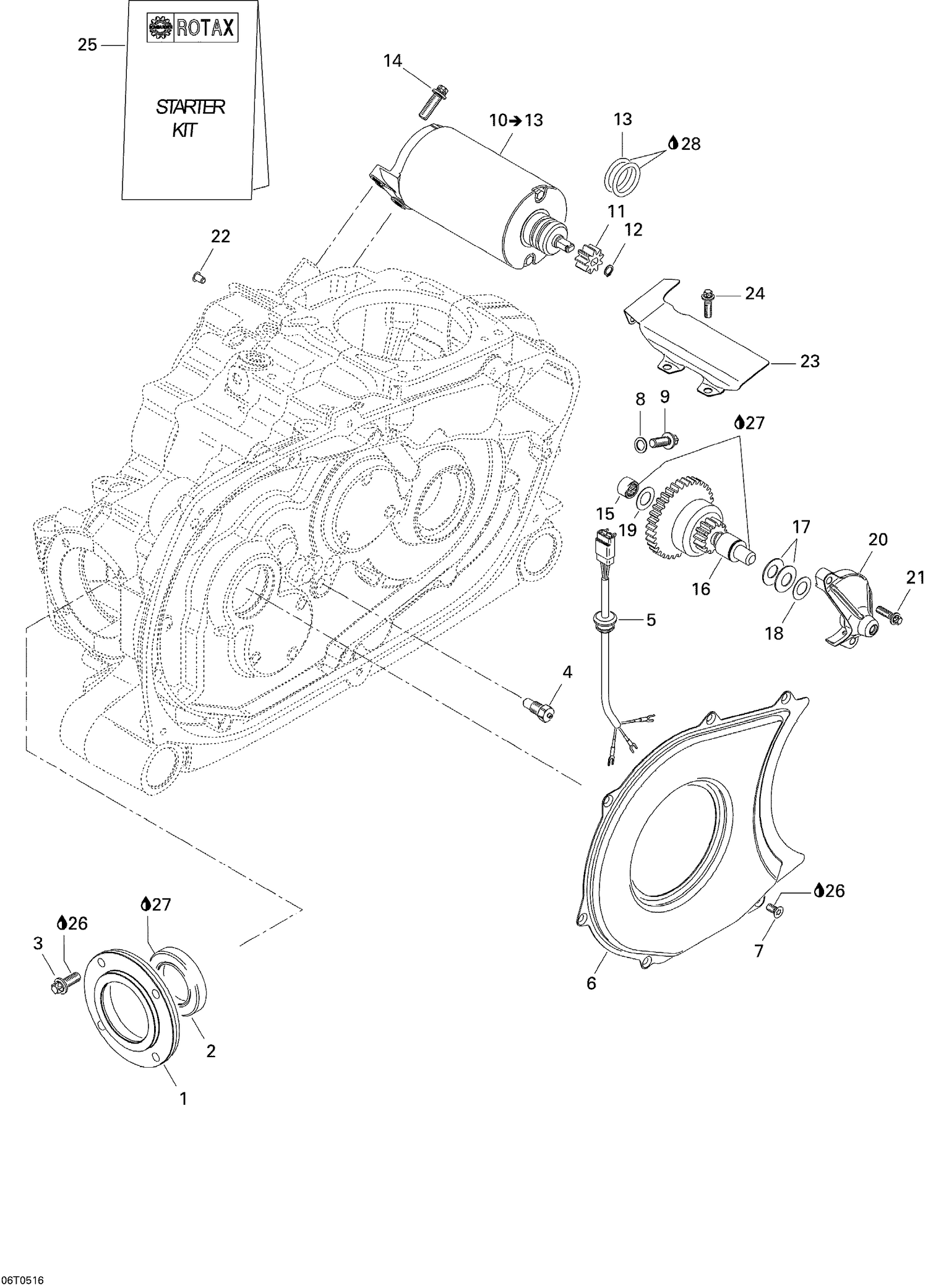

| Ref | Part Number | Description |
|---|
| 1 |
420610243 |
Bearing Cover |
| 2 |
420650682 |
Oil Seal |
| 3 |
420440372 |
Torx Flange Screw M8 X 25 |
| 4 |
420241856 |
Position Switch |
| 5 |
420265831 |
Wiring Harness |
| 6 |
420610263 |
AIR GUIDE - Call your local BRP dealership |
| 7 |
420241465 |
TAPTITE TORX SCREW M6 X 12 - Call your local BRP dealership |
| 8 |
420950141 |
Sealing Ring |
| 9 |
420440372 |
Torx Flange Screw M8 X 25 |
| 11 |
420834522 |
Starter Gear, 9 Teeth This part replaces 420834521. |
| 12 |
420845601 |
Retaining Ring This part replaces 420845600. |
| 13 |
420250300 |
O-ring |
| 14 |
420440234 |
Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 15 |
420232482 |
Needle Bushing This part replaces 420232480. |
| 16 |
703500286 |
STARTER BENDIX KIT - Call your local BRP dealership |
| 17 |
420238300 |
Spring Washer |
| 18 |
420827261 |
Thrust Washer |
| 19 |
420227450 |
THRUST WASHER - Call your local BRP dealership |
| 20 |
420610376 |
GEAR COVER - Call your local BRP dealership |
| 21 |
420640690 |
SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership |
| 22 |
420860245 |
Plug |
| 23 |
420251240 |
HEAT DEFLECTOR - Call your local BRP dealership |
| 24 |
420440162 |
Torx Flange Screw M6 X 16 |
| 25 |
420664710 |
CARBON BRUSH SET - Call your local BRP dealership |
| 26 |
293800060 |
Loctite 243, 10 ml |
| 27 |
293550030 |
Grease, Super Lube |
