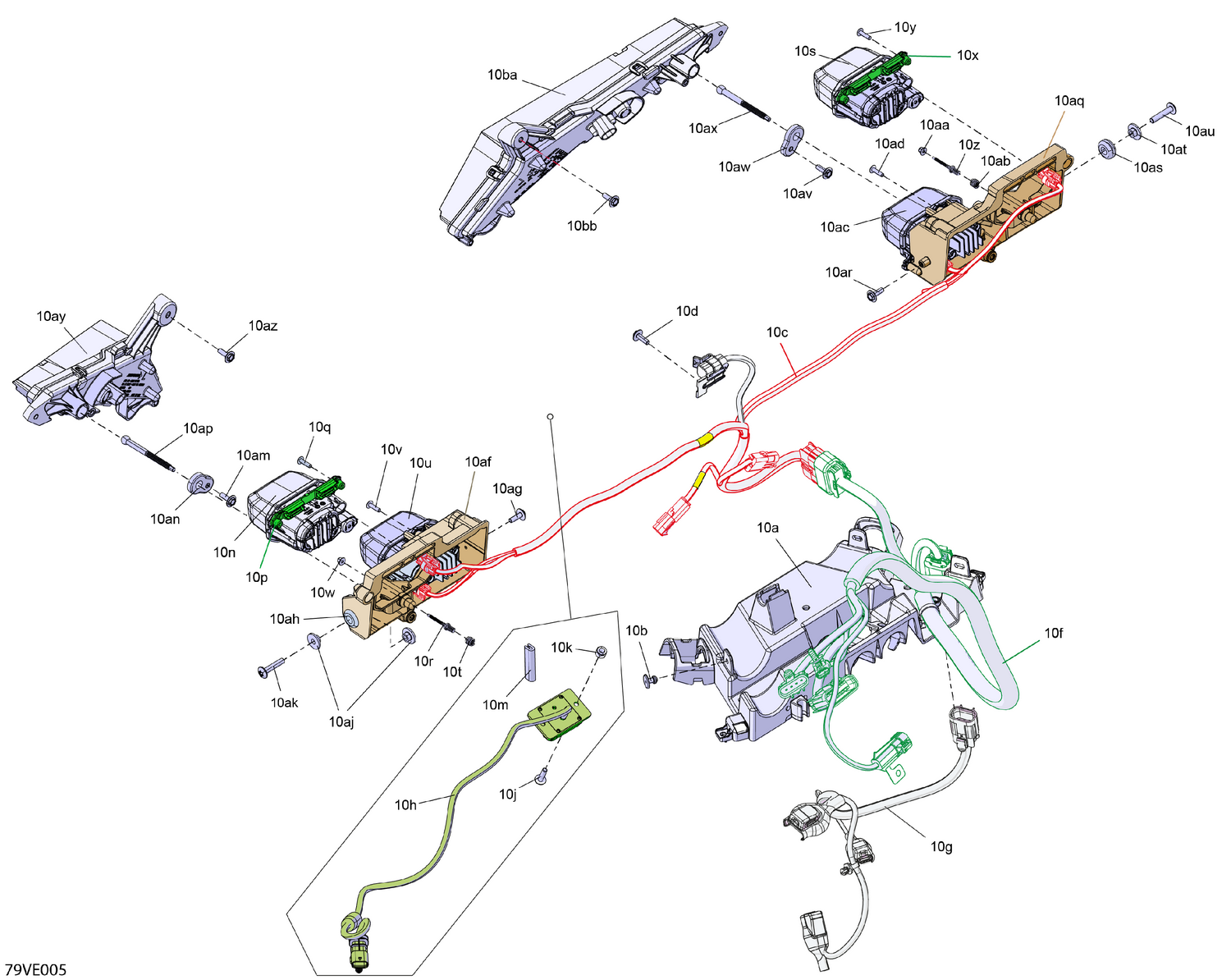

08- Electric - Front Section
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 710007813 | Multi Porpuse Support |
| 10aa | 517309134 | Specialized Nut |
| 10ab | 517309058 | Compression Spring |
| 10ac | 710006911 | High Beam Light |
| 10ad | 250000759 | Torx Truss Pt K40 X 16 |
| 10af | 708500087 | LH Front Headlight Support |
| 10ag | 250000959 | Screw PT Type K-50 X 16 |
| 10ah | 293720130 | Overmolded Grommet |
| 10aj | 710004749 | Shoulder Bushing |
| 10ak | 250000842 | Stainless, Torx Screw M6 X 30 |
| 10am | 250000959 | Screw PT Type K-50 X 16 |
| 10an | 293900157 | Ball Socket |
| 10ap | 710005837 | Ajustment Screw |
| 10aq | 708500088 | RH Front Headlight Support |
| 10ar | 250000959 | Screw PT Type K-50 X 16 |
| 10as | 293720130 | Overmolded Grommet |
| 10at | 710004749 | Shoulder Bushing |
| 10au | 250000842 | Stainless, Torx Screw M6 X 30 |
| 10av | 250000959 | Screw PT Type K-50 X 16 |
| 10aw | 293900157 | Ball Socket |
| 10ax | 710005837 | Ajustment Screw |
| 10ay | 710007638 | LH Auxiliary LED Light |
| 10az | 250000959 | Screw PT Type K-50 X 16 |
| 10b | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 10ba | 710007644 | RH Auxiliary LED Light |
| 10c | 710008962 | Headlight Wiring Harness |
| 10d | 250000959 | Screw PT Type K-50 X 16 |
| 10f | 710009626 | Junction Wiring Harness |
| 10g | 710007357 | Differential Wiring Harness |
| 10h | 710007892 | Camera |
| 10j | 250000797 | Torx Head Screw M4 X 16 |
| 10k | 232541484 | Elastic Stop Nut M4 |
| 10m | 219704548 | Edge Cut Trim 1000Mm |
| 10n | 710008089 | Low Beam Light |
| 10p | 517309049 | Support Pivot |
| 10q | 250000759 | Torx Truss Pt K40 X 16 |
| 10r | 517309133 | Threaded Rod |
| 10s | 517309134 | Specialized Nut |
| 10t | 517309058 | Compression Spring |
| 10u | 710006911 | High Beam Light |
| 10v | 250000759 | Torx Truss Pt K40 X 16 |
| 10w | 710008089 | Low Beam Light |
| 10x | 517309049 | Support Pivot |
| 10y | 250000759 | Torx Truss Pt K40 X 16 |
| 10z | 517309133 | Threaded Rod |
