Home / BRP / 2012 / Skandic / Skandic WT 600 ACE (4-strokes), 2012 000FHCA00 000FHCB00 / 01- Engine Block

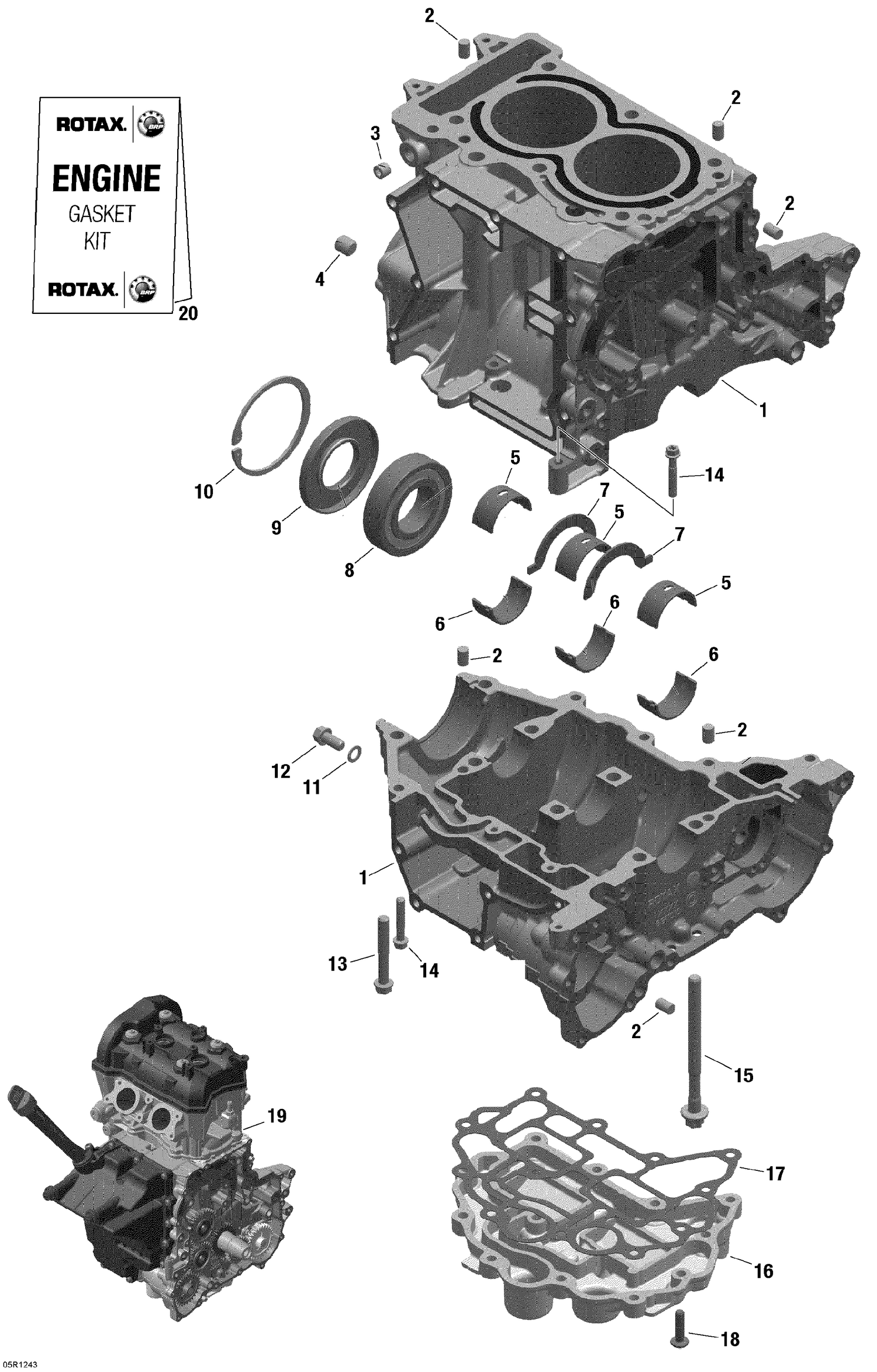

01- Engine Block

01- Engine Block

Parts (8)

RefPart NumberDescription
2 420632010 Center Pin 8 X 12
5 420933180 Cushion
6 420933185 Cushion
7 420933140 Ring Half
8 420832232 Ball Bearing
10 420845790 Retaining Ring
16 420911124 Oil Sump This part replaces 420911120.
19 420060203 Long Block 602 This part replaces 420060201.
