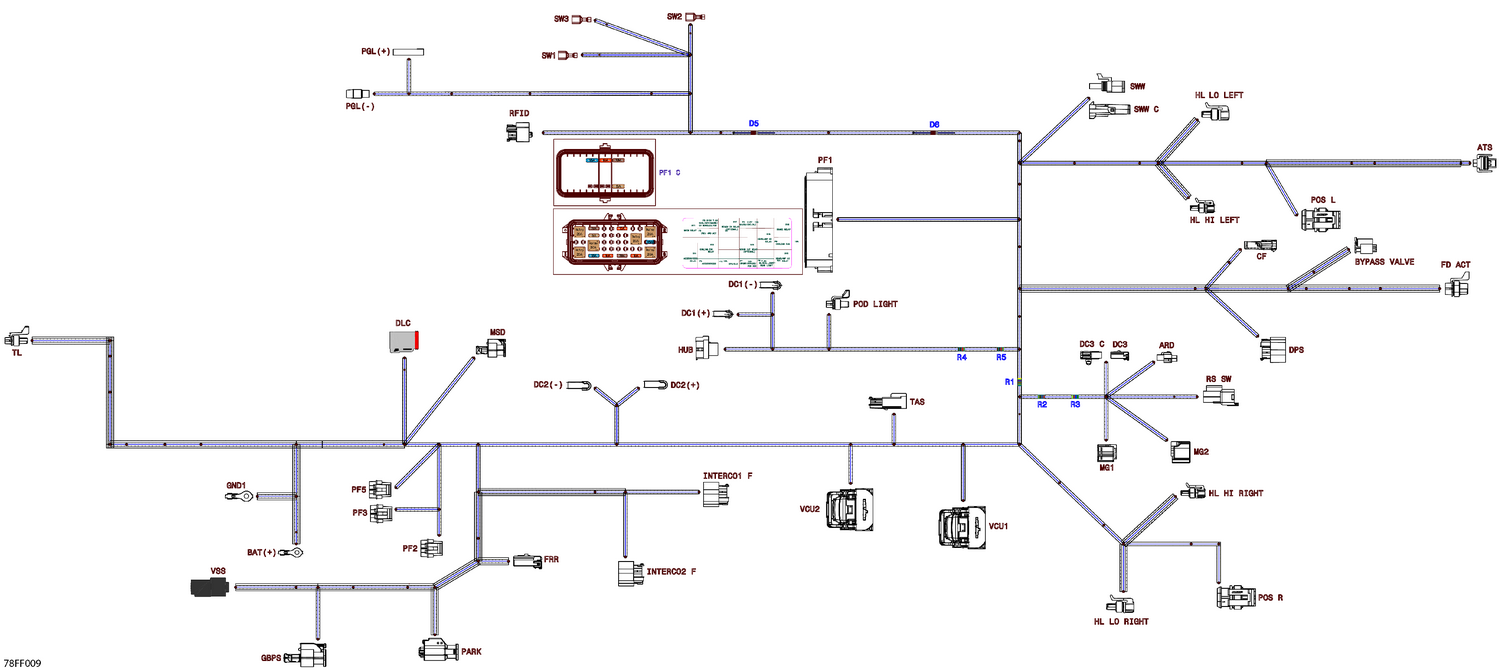

08- Electric - Main Harness - 710009748
Parts (98)
| Ref | Part Number | Description |
|---|---|---|
| ARD | 409012100 | Female Terminal |
| ARD | 710000402 | Wire Seal |
| ARD | 710008152 | Sumitomo Female Connector 2 Cavities |
| ATS | 515176890 | Female Terminal Housing |
| ATS | 710001163 | Wire Seal |
| ATS | 710001164 | Female Terminal |
| CF | 278000217 | Female Housing, 2 Circuits |
| CF | 278000218 | Wire Seal |
| CF | 409004300 | Male Terminal |
| CLIP12039 | 710005237 | Christmas Tree Tie-Rap |
| D5 | 409012700 | Diode |
| D6 | 409012700 | Diode |
| DC3 | 515175231 | Female Terminal |
| DC3 | 515175658 | Female Housing, 2 Circuits |
| DLC | 710002706 | Female Housing 6 Circuits |
| DLC | 710005438 | Female Terminal |
| DLC | 710005439 | Female Terminal |
| DPS | 278002186 | Wire Seal |
| DPS | 278002187 | Female Terminal |
| DPS | 710001873 | Terminal This part replaces 710001765. |
| DPS | 710002075 | Plug |
| DPS | 710003153 | Seal |
| DPS | 710004989 | Female Housing |
| FRR | 515175658 | Female Housing, 2 Circuits |
| FRR | 710003896 | Female Terminal |
| GBPS | 710001118 | Wire Seal |
| GBPS | 710008740 | Terminal Tyco Female |
| GBPS | 710009819 | Tyco 3 Cavities Female Connector |
| GND1 | 278001392 | Open Barrel Terminal |
| HAZARD | 409012100 | Female Terminal |
| HAZARD | 409012300 | Seal |
| HAZARD | 710000080 | Cap |
| HL | HI | LEFT 710007660 Housing 710007660 |
| HL | LO | LEFT 515177192 Female Housing, 2 Circuits 515177192 |
| HUB | 515176345 | Plug |
| HUB | 515176348 | Female Terminal |
| HUB | 515176541 | Female Terminal |
| HUB | 515178745 | Female Tyco Connector 34 Cavities |
| LP | 515175232 | Male Terminal |
| MG1 | 710008931 | Plug |
| MG1 | 710009309 | Sumitomo Female Terminal |
| MG1 | 710009813 | Connector Seal |
| MG1 | 710009839 | Sumitomo Female Connector 13 Cavities |
| MG2 | 710008931 | Plug |
| MG2 | 710009306 | Sumitomo Female 6 Cavities Connector |
| MG2 | 710009309 | Sumitomo Female Terminal |
| MG2 | 710009813 | Connector Seal |
| MSD | 710001118 | Wire Seal |
| MSD | 710008740 | Terminal Tyco Female |
| MSD | 710009918 | Connector |
| OTH5248 | 710007296 | Fuse Holder Cover |
| OTH5528 | 710007290 | Connector Support |
| PARK | 710010566 | Female Connector 2 Cavities |
| PARK | 710010568 | Female Terminal |
| PF1 | 278000999 | Wire Seal |
| PF1 | 415128501 | Seal |
| PF1 | 415129856 | Fuse Box Base Ass´y This part replaces 710000660. |
| PF1 | 710000836 | Female Terminal |
| PF1 | 710000840 | Cap |
| PF2 | 278001325 | Fuse Holder |
| PF2 | 710000357 | Female Terminal |
| PF3 | 278001325 | Fuse Holder |
| PF3 | 710000113 | Female Terminal |
| PF3 | 710000357 | Female Terminal |
| PF5 | 278001325 | Fuse Holder |
| PF5 | 710000113 | Female Terminal |
| R2 | 710011213 | Resistor |
| R3 | 710010438 | Resistor |
| RFID | 710001163 | Wire Seal |
| RFID | 710001164 | Female Terminal |
| RFID | 710007151 | Female Delphi Connector 5 Cavities |
| SW1 | 409010700 | Female Terminal |
| SW2 | 409010700 | Female Terminal |
| SW3 | 409010700 | Female Terminal |
| SWW | 278000218 | Wire Seal |
| SWW | 278000223 | Female Terminal |
| SWW | 278000273 | Male Housing, 3 Circuits |
| TAS | 710001224 | Terminal |
| TAS | 710001231 | Housing |
| TAS | 710001233 | Seal |
| TL | 278001482 | Seal |
| TL | 710000645 | Housing |
| TL | 710001134 | Female Terminal |
| TRL | 409012100 | Female Terminal |
| TRL | 409012300 | Seal |
| VCU1 | 515178595 | Housing 56 Circuits |
| VCU1 | 515178596 | Terminal |
| VCU1 | 515178598 | Terminal |
| VCU1 | 515178599 | Plug |
| VCU1 | 515178600 | Plug |
| VCU1 | 515178666 | Terminal |
| VCU2 | 515178596 | Terminal |
| VCU2 | 515178597 | Terminal |
| VCU2 | 515178599 | Plug |
| VCU2 | 515178600 | Plug |
| VCU2 | 515178666 | Terminal |
| VSS | 515175666 | Male Housing |
| 200 | 710009748 | Main Wiring Harness |
