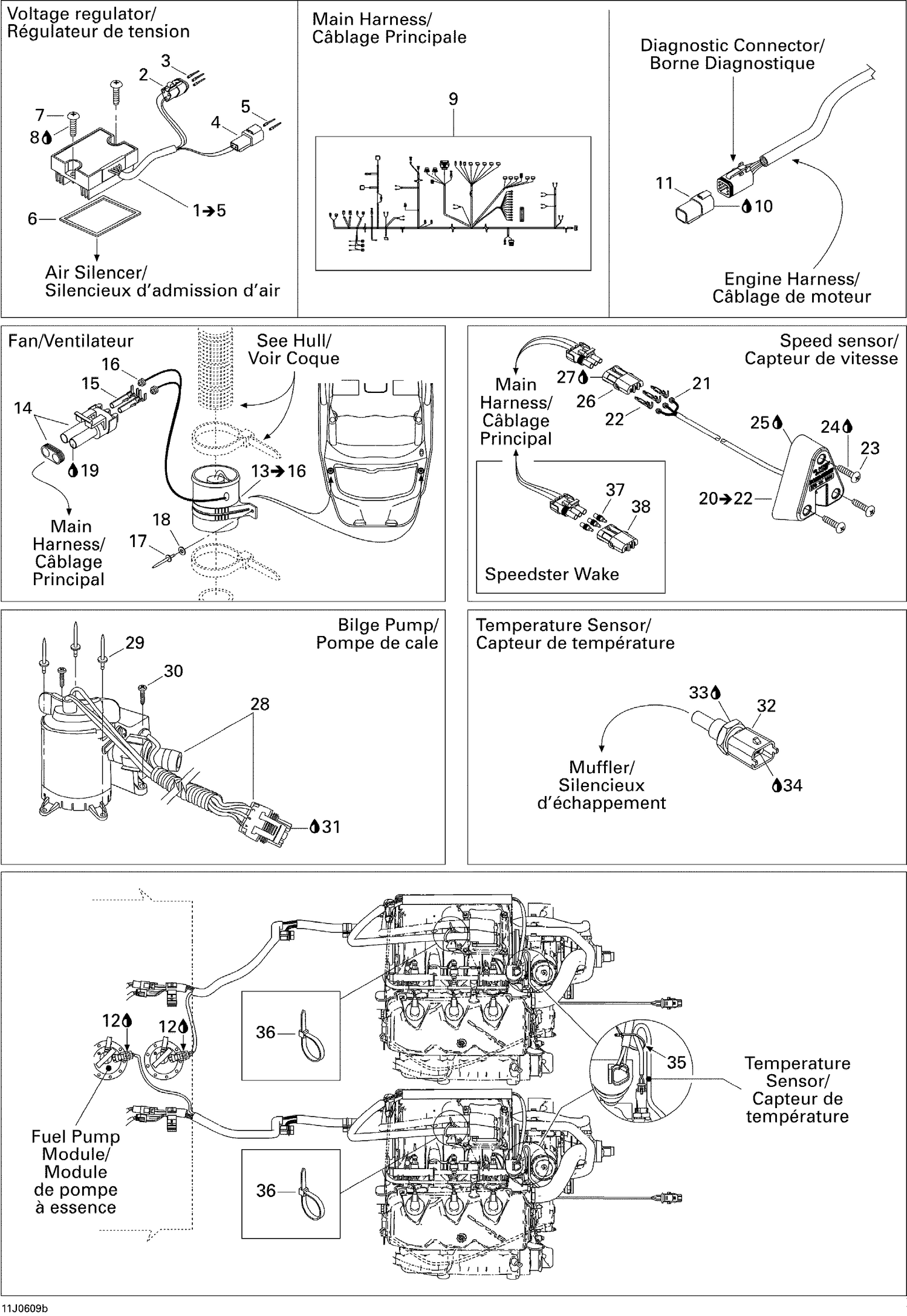

| Ref | Part Number | Description |
|---|
| 2 |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 3 |
278000632 |
Female Terminal |
| 4 |
409206900 |
Male Housing, 2 Circuits |
| 5 |
515175567 |
Female Terminal |
| 6 |
293250123 |
SEAL - Call your local BRP dealership |
| 7 |
208663060 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 8 |
293800005 |
Loctite 271, 10 ml |
| 9 |
204471061 |
Main Harness |
| 10 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 11 |
278002704 |
Diagnostic Connector This part replaces 278001725. |
| 12 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 14 |
278000220 |
Male Connector, 2 Circuits |
| 15 |
278000223 |
Female Terminal |
| 16 |
278000218 |
Wire Seal |
| 17 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 18 |
234052600 |
Flat Washer 5 mm, Stainless |
| 19 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 21 |
710000048 |
Wire Seal |
| 22 |
278000222 |
Male Terminal |
| 23 |
211000021 |
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership |
| 24 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 25 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 26 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 27 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 28 |
204471072 |
Bilge Pump |
| 29 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 30 |
250000090 |
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 31 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 32 |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 34 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 35 |
293750002 |
Tie Wrap 142 mm |
| 36 |
293750002 |
Tie Wrap 142 mm |
| 37 |
XXX |
Not Available As Spare Parts |
